Name: Rear Seat Covers (Full Analine Leather, 40/20/40 Super Slouch Rear Seat)
Rating: 4.4 (1 reviews)

Rear Seat Covers (Full Analine Leather, 40/20/40 Super Slouch Rear Seat) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Seat Covers (Full Analine Leather, 40/20/40 Super Slouch Rear Seat)

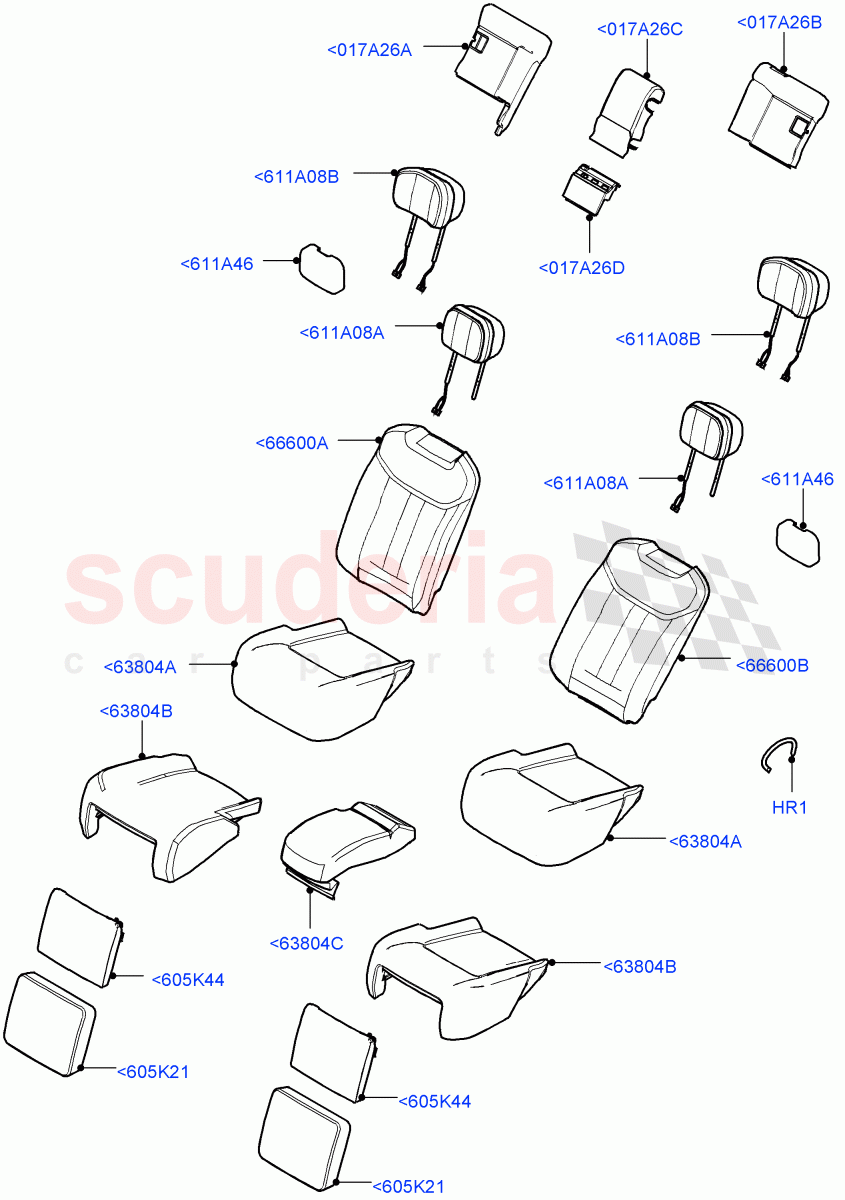

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR057150	RING - RETAINING	$2.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR153369	PILLOW - CALF REST	$307.56	To Order
	LR153369	PILLOW - CALF REST	$307.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158513	CALF REST	$384.48	To Order
	LR158513	CALF REST	$384.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152503	PILLOW - HEADREST	$250.27	To Order
	LR163060	PILLOW - HEADREST	$252.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150742	COVER - REAR SEAT CUSHION	$1,676.28	To Order
	LR150743	COVER - REAR SEAT CUSHION	$1,676.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150854	COVER - REAR SEAT CUSHION	$1,920.09	To Order
	LR150858	COVER - REAR SEAT CUSHION	$1,920.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151276	COVER - REAR SEAT CUSHION	$1,386.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150931	COVER - REAR SEAT BACK	$1,263.93	To Order
	LR164692	COVER - REAR SEAT BACK	$1,263.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150960	COVER - REAR SEAT BACK	$1,263.93	To Order
	LR164699	COVER - REAR SEAT BACK	$1,263.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108174	COVER - BULKHEAD	$159.60	To Order
	LR172328	COVER - BULKHEAD	$152.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108177	COVER - BULKHEAD	$160.88	To Order
	LR172330	COVER - BULKHEAD	$151.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155196	COVER - BULKHEAD	$133.41	To Order
	LR172355	COVER - BULKHEAD	$125.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111248	COVER - BULKHEAD	$141.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150696	HEADREST	$1,412.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150703	HEADREST	$1,343.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017A26A	LR108174	COVER - BULKHEAD	LR108174 COVER - BULKHEAD RH / To: PA002925	$159.60	1
<017A26A	LR172328	COVER - BULKHEAD	LR172328 COVER - BULKHEAD RH / From: PA002926	$152.72	1
<017A26B	LR108177	COVER - BULKHEAD	LR108177 COVER - BULKHEAD LH / To: PA002925	$160.88	1
<017A26B	LR172330	COVER - BULKHEAD	LR172330 COVER - BULKHEAD LH / From: PA002926	$151.61	1
<017A26C	LR155196	COVER - BULKHEAD	LR155196 COVER - BULKHEAD Upper Center / To: PA002925	$133.41	1
<017A26C	LR172355	COVER - BULKHEAD	LR172355 COVER - BULKHEAD Ebony Black/Ebony Black Interior / Upper Center / From: PA002926	$125.73	1
<017A26D	LR111248	COVER - BULKHEAD	LR111248 COVER - BULKHEAD Lower center	$141.85	1
<605K21	LR153369	PILLOW - CALF REST	LR153369 PILLOW - CALF REST Driver + Passenger Heated Calf Rest / RH/LH	$307.56	2
<605K21	LR153369	PILLOW - CALF REST	LR153369 PILLOW - CALF REST Passenger Side Heated Calf Rest / Passenger Side	$307.56	1
<605K44	LR158513	CALF REST	LR158513 CALF REST Driver + Passenger Heated Calf Rest / RH/LH	$384.48	2
<605K44	LR158513	CALF REST	LR158513 CALF REST Passenger Side Heated Calf Rest / Passenger Side	$384.48	1
<611A08A	LR150696	HEADREST	LR150696 HEADREST Meridian 3D Surround Sound System / RH/LH	$1,412.07	2
<611A08B	LR150703	HEADREST	LR150703 HEADREST Super Premium Audio 2500 W / RH/LH	$1,343.50	2
<611A46	LR152503	PILLOW - HEADREST	LR152503 PILLOW - HEADREST Hot Stone Massage Rear, Less Rear Seat Calf Rests / RH/LH	$250.27	2
<611A46	LR163060	PILLOW - HEADREST	LR163060 PILLOW - HEADREST Hot Stone Massage Rear, Passenger Side Heated Calf Rest / RH/LH	$252.05	2
<63804A	LR150742	COVER - REAR SEAT CUSHION	LR150742 COVER - REAR SEAT CUSHION Driver + Passenger Heated Calf Rest / RH	$1,676.28	1
<63804A	LR150743	COVER - REAR SEAT CUSHION	LR150743 COVER - REAR SEAT CUSHION Less Rear Seat Calf Rests / RH	$1,676.28	1
<63804B	LR150854	COVER - REAR SEAT CUSHION	LR150854 COVER - REAR SEAT CUSHION Driver + Passenger Heated Calf Rest / LH	$1,920.09	1
<63804B	LR150858	COVER - REAR SEAT CUSHION	LR150858 COVER - REAR SEAT CUSHION Less Rear Seat Calf Rests / LH	$1,920.09	1
<63804C	LR151276	COVER - REAR SEAT CUSHION	LR151276 COVER - REAR SEAT CUSHION Centre	$1,386.01	1
<66600A	LR150931	COVER - REAR SEAT BACK	LR150931 COVER - REAR SEAT BACK iSize / RH	$1,263.93	1
<66600A	LR164692	COVER - REAR SEAT BACK	LR164692 COVER - REAR SEAT BACK ISO Fix / RH	$1,263.93	1
<66600B	LR150960	COVER - REAR SEAT BACK	LR150960 COVER - REAR SEAT BACK iSize / LH	$1,263.93	1
<66600B	LR164699	COVER - REAR SEAT BACK	LR164699 COVER - REAR SEAT BACK ISO Fix / LH	$1,263.93	1
HR1	LR057150	RING - RETAINING IN STOCK	LR057150 RING - RETAINING Hog Rings To Attach Trim Covers To Foam Pads IN STOCK	$2.94	-
