Rear Seat Base (60/40 Load Through With Slide) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Seat Base (60/40 Load Through With Slide)

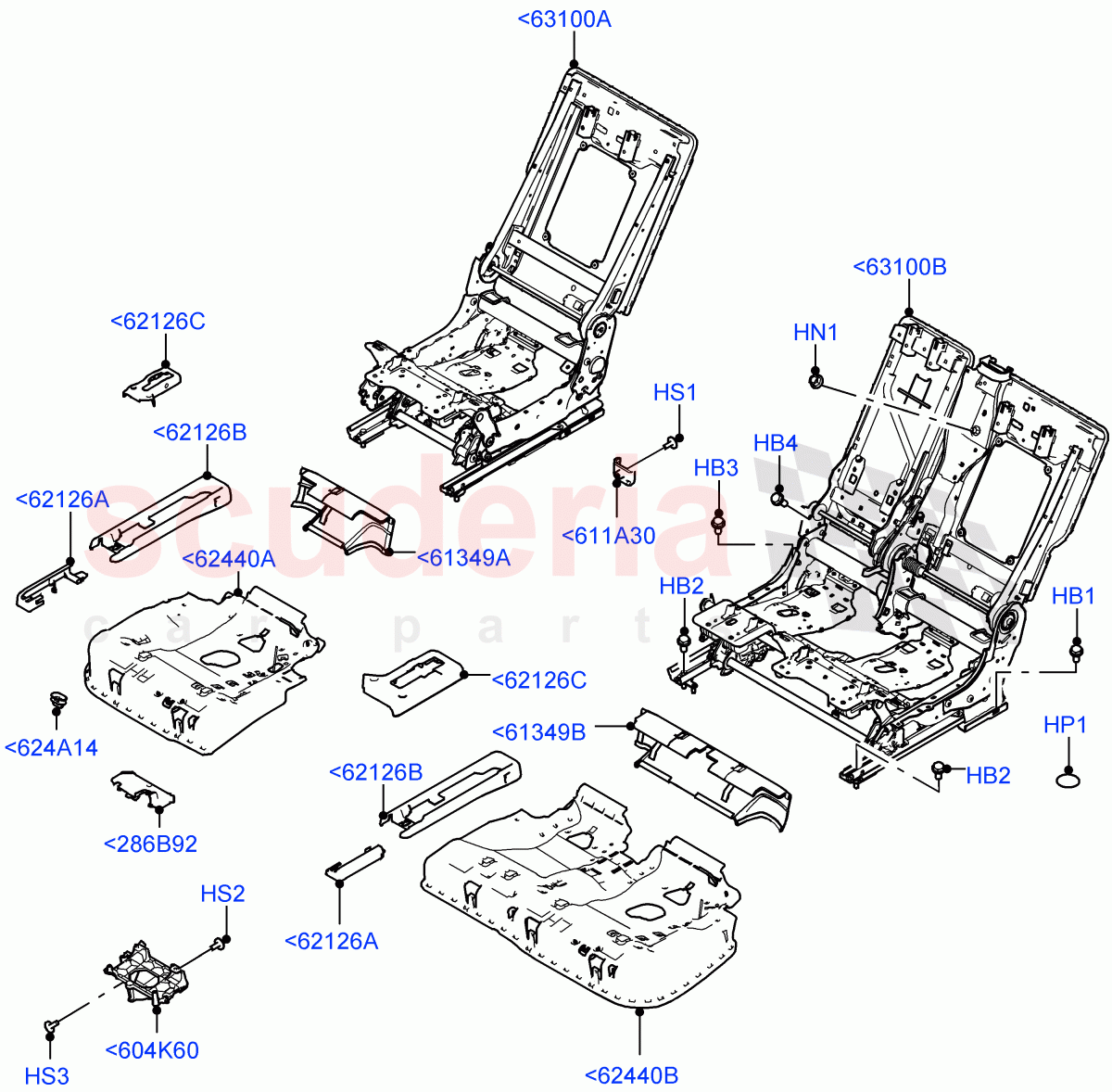

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR081047	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110086	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049658	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153368	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039505	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050869	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159958	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048418	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007354	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153370	COVER - MOTOR PROTECTOR	Enquire	To Order
	LR153371	COVER - MOTOR PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153231	TRAY - PACKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166338	PROTECTOR - EDGE - SEAT FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151365	COVER - SEAT RECLINING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151366	COVER - SEAT RECLINING MECHANISM	Enquire	To Order
	LR172897	Cover - Seat Reclining Mechanism	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154092	COVER - SEAT TRACK	Enquire	To Order
	LR154094	COVER - SEAT TRACK	Enquire	To Order
	LR154093	COVER - SEAT TRACK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR151243	COVER - SEAT TRACK	Enquire	To Order
	LR151247	COVER - SEAT TRACK	Enquire	To Order
	LR151241	COVER - SEAT TRACK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR151244	COVER - SEAT TRACK	Enquire	To Order
	LR151245	COVER - SEAT TRACK	Enquire	To Order
	LR151248	COVER - SEAT TRACK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR154079	SUPPORT - REAR SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154080	SUPPORT - REAR SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092463	RETAINER - SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152073	FRAME - SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152078	FRAME - SEAT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<286B92	LR153370	COVER - MOTOR PROTECTOR	LR153370 COVER - MOTOR PROTECTOR RH Seat	-	1	Enquire
<286B92	LR153371	COVER - MOTOR PROTECTOR	LR153371 COVER - MOTOR PROTECTOR LH Seat	-	1	Enquire
<604K60	LR153231	TRAY - PACKAGE	LR153231 TRAY - PACKAGE RH/LH	-	2	Enquire
<611A30	LR166338	PROTECTOR - EDGE - SEAT FRAME	LR166338 PROTECTOR - EDGE - SEAT FRAME For Seat Frame	-	1	Enquire
<624A14	LR092463	RETAINER - SEAT	LR092463 RETAINER - SEAT Floor, Front	-	5	Enquire
<61349A	LR151365	COVER - SEAT RECLINING MECHANISM	LR151365 COVER - SEAT RECLINING MECHANISM RH Seat	-	1	Enquire
<61349B	LR151366	COVER - SEAT RECLINING MECHANISM	LR151366 COVER - SEAT RECLINING MECHANISM Rear Entertainment Scrn - 11.6 Inch / LH Seat	-	1	Enquire
<61349B	LR172897	Cover - Seat Reclining Mechanism	LR172897 Cover - Seat Reclining Mechanism Less Rear Entertainment Screen / LH Seat	-	1	Enquire
<62126A	LR154092	COVER - SEAT TRACK	LR154092 COVER - SEAT TRACK Front, Inner, LH Seat	-	1	Enquire
<62126A	LR154094	COVER - SEAT TRACK	LR154094 COVER - SEAT TRACK Front, Inner, RH Seat	-	1	Enquire
<62126A	LR154093	COVER - SEAT TRACK	LR154093 COVER - SEAT TRACK Front, Outer, RH Seat	-	1	Enquire
<62126A	LR154095	COVER - SEAT TRACK	LR154095 COVER - SEAT TRACK Front, LH Seat, Outer	-	1	Enquire
<62126B	LR151243	COVER - SEAT TRACK	LR151243 COVER - SEAT TRACK Lower, Outer, Rear, RH Seat	-	1	Enquire
<62126B	LR151247	COVER - SEAT TRACK	LR151247 COVER - SEAT TRACK LH Seat, Lower, Outer, Rear	-	1	Enquire
<62126B	LR151241	COVER - SEAT TRACK	LR151241 COVER - SEAT TRACK Inner, Lower, Rear, RH Seat	-	1	Enquire
<62126B	LR151246	COVER - SEAT TRACK	LR151246 COVER - SEAT TRACK Inner, LH Seat, Lower, Rear	-	1	Enquire
<62126C	LR151244	COVER - SEAT TRACK	LR151244 COVER - SEAT TRACK Outer, Rear, RH Seat, Upper	-	1	Enquire
<62126C	LR151245	COVER - SEAT TRACK	LR151245 COVER - SEAT TRACK Inner, Rear, RH Seat, Upper	-	1	Enquire
<62126C	LR151248	COVER - SEAT TRACK	LR151248 COVER - SEAT TRACK Inner, LH Seat, Rear, Upper	-	1	Enquire
<62126C	LR151249	COVER - SEAT TRACK	LR151249 COVER - SEAT TRACK LH Seat, Outer, Rear, Upper	-	1	Enquire
<62440A	LR154079	SUPPORT - REAR SEAT CUSHION	LR154079 SUPPORT - REAR SEAT CUSHION RH Seat	-	1	Enquire
<62440B	LR154080	SUPPORT - REAR SEAT CUSHION	LR154080 SUPPORT - REAR SEAT CUSHION LH Seat	-	1	Enquire
<63100A	LR152073	FRAME - SEAT	LR152073 FRAME - SEAT RH Seat	-	1	Enquire
<63100B	LR152078	FRAME - SEAT	LR152078 FRAME - SEAT LH Seat	-	1	Enquire
HB1	LR081047	BOLT	LR081047 BOLT M12 x 25MM, Outer, Rear, Seat Frame To Floor	-	2	Enquire
HB2	FB110086	BOLT - HEX.HEAD	FB110086 BOLT - HEX.HEAD Front, M10 x 40MM, Seat Frame To Floor	-	4	Enquire
HB3	LR049658	BOLT	LR049658 BOLT Inner, M12 X 30MM, Rear, Seat Frame To Floor	-	2	Enquire
HB4	LR153368	BOLT	LR153368 BOLT For Seat Frame	-	1	Enquire
HN1	LR039505	NUT - FLANGED	LR039505 NUT - FLANGED For Seat Frame	-	1	Enquire
HP1	LR050869	PLUG - BLANKING	LR050869 PLUG - BLANKING Less 3rd Row Rear Seat / Sealing Patch That Covers Holes When Row 3 Is Not Fitted	-	5	Enquire
HS1	LR159958	SCREW	LR159958 SCREW 4 x 10MM, For Seat Frame, Torx	-	4	Enquire
HS2	LR048418	SCREW	LR048418 SCREW 5 X 14	-	14	Enquire
HS3	LR007354	Screw	LR007354 Screw M6 X 16MM, Screw And Washer	-	4	Enquire
