Name: Rear Seat Pads/Valances & Heating (Heating) (With 60/40 Power Fold Thru Rr Seat, 60/40 Load Through With Slide)
Rating: 5.0 (1 reviews)

Rear Seat Pads/Valances & Heating (Heating) (With 60/40 Power Fold Thru Rr Seat, 60/40 Load Through With Slide) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Seat Pads/Valances & Heating (Heating) (With 60/40 Power Fold Thru Rr Seat, 60/40 Load Through...

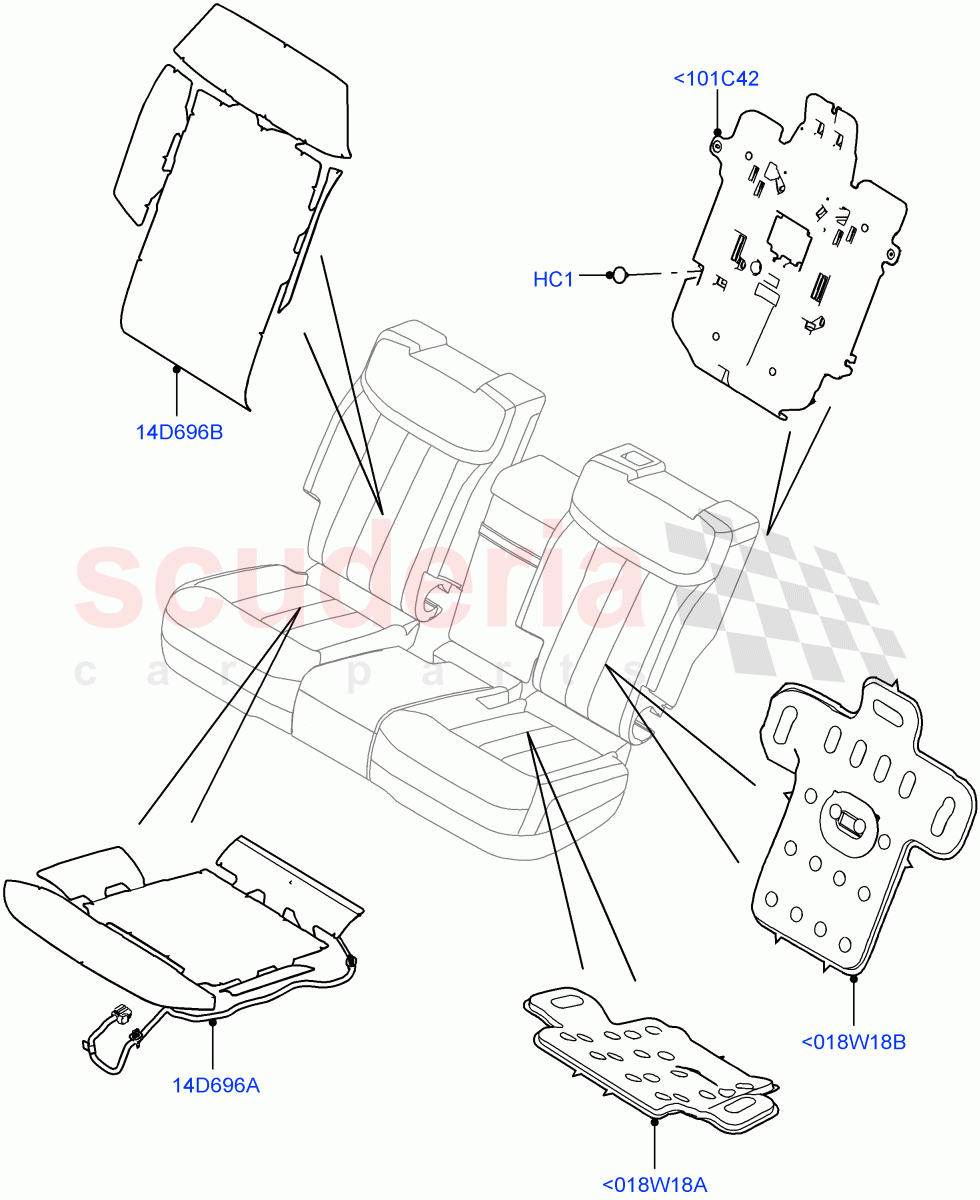

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR035841	CLIP - TRIM - PILLARS	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152867	BACKPLATE - CLIMATE SEAT	$86.54	To Order
	LR152868	BACKPLATE - CLIMATE SEAT	$86.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151400	ELEMENT - SEAT HEATING	$154.07	To Order
	LR151401	ELEMENT - SEAT HEATING	$154.07	To Order
	LR171358	ELEMENT - SEAT HEATING	$153.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152803	ELEMENT - REAR SEAT BACK HEATING	$144.94	To Order
	LR152802	ELEMENT - REAR SEAT BACK HEATING	$154.07	To Order
	LR171354	ELEMENT - REAR SEAT BACK HEATING	$153.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152739	AIR DIFFUSER PAD - SEAT	$83.61	To Order
	LR155071	AIR DIFFUSER PAD - SEAT	$83.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152711	AIR DIFFUSER PAD - SEAT	$83.61	To Order
	LR155073	AIR DIFFUSER PAD - SEAT	$83.61	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<018W18A	LR152739	AIR DIFFUSER PAD - SEAT	LR152739 AIR DIFFUSER PAD - SEAT Heated and Ventilated Rear Seats / For Seat Cushion, RH/LH	$83.61	2
<018W18A	LR155071	AIR DIFFUSER PAD - SEAT	LR155071 AIR DIFFUSER PAD - SEAT Heated And Cooled Rear Seats / For Seat Cushion, RH/LH	$83.61	2
<018W18B	LR152711	AIR DIFFUSER PAD - SEAT	LR152711 AIR DIFFUSER PAD - SEAT Heated and Ventilated Rear Seats / For Seat Back, RH/LH	$83.61	2
<018W18B	LR155073	AIR DIFFUSER PAD - SEAT	LR155073 AIR DIFFUSER PAD - SEAT Heated And Cooled Rear Seats / For Seat Back, RH/LH	$83.61	2
<101C42	LR152867	BACKPLATE - CLIMATE SEAT	LR152867 BACKPLATE - CLIMATE SEAT RH	$86.54	1
<101C42	LR152868	BACKPLATE - CLIMATE SEAT	LR152868 BACKPLATE - CLIMATE SEAT LH	$86.54	1
HC1	LR035841	CLIP - TRIM - PILLARS	LR035841 CLIP - TRIM - PILLARS Clip Lantern 7.1 X 1.5 - 3 + 2.2	$2.20	23
14D696A	LR151400	ELEMENT - SEAT HEATING	LR151400 ELEMENT - SEAT HEATING Heated Rear Seats, Less SV Model Spec / For Seat Cushion, RH/LH	$154.07	2
14D696A	LR151401	ELEMENT - SEAT HEATING	LR151401 ELEMENT - SEAT HEATING Heated And Cooled Rear Seats, Less SV Model Spec / For Seat Cushion, RH/LH	$154.07	2
14D696A	LR171358	ELEMENT - SEAT HEATING	LR171358 ELEMENT - SEAT HEATING SV1 Model Spec / For Seat Cushion, RH/LH / From: PA000001	$153.63	2
14D696B	LR152803	ELEMENT - REAR SEAT BACK HEATING	LR152803 ELEMENT - REAR SEAT BACK HEATING Heated Rear Seats, Less SV Model Spec / For Seat Back, RH/LH	$144.94	2
14D696B	LR152802	ELEMENT - REAR SEAT BACK HEATING	LR152802 ELEMENT - REAR SEAT BACK HEATING Heated And Cooled Rear Seats, Less SV Model Spec / For Seat Back, RH/LH	$154.07	2
14D696B	LR171354	ELEMENT - REAR SEAT BACK HEATING	LR171354 ELEMENT - REAR SEAT BACK HEATING SV1 Model Spec / For Seat Back, RH/LH / From: PA000001	$153.63	2
