Name: Turbocharger (Heatshields) (4.4 V8 Turbo Petrol (NC10))
Rating: 4.8 (1 reviews)

View All

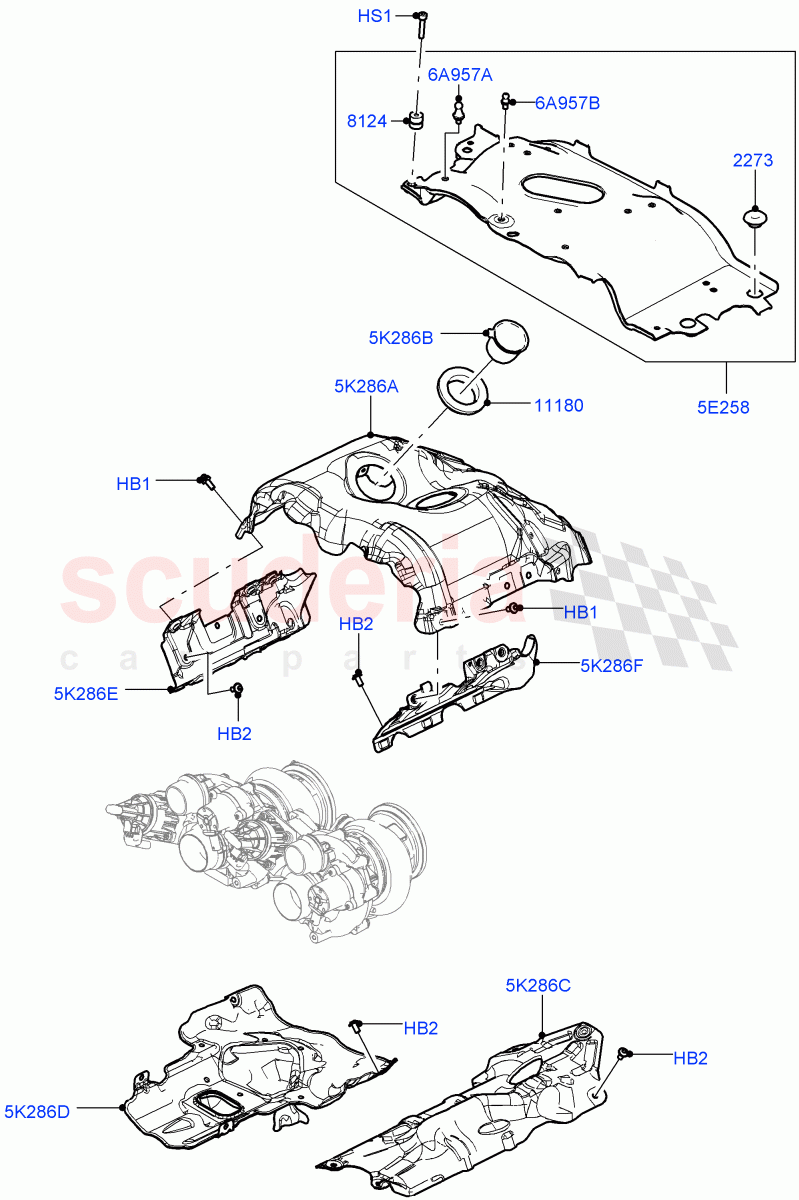

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158693	BOLT	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158547	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159808	SCREW	$4.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159065	GROMMET	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175162	Insulator	$22.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158950	SEAL	$20.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159852	SHIELD - EXHAUST MANIFOLD HEAT	$112.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170350	SHIELD	$130.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158244	HEAT SHIELD	$20.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163179	HEAT SHIELD - TURBOCHARGER	$75.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158935	HEAT SHIELD - TURBOCHARGER	$158.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159819	HEAT SHIELD - TURBOCHARGER	$75.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159827	SHIELD	$120.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175160	Stud	$7.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175161	Stud	$7.08	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158693	BOLT	LR158693 BOLT Heatshield Fixing, M6 X 16	$2.98	6
HB2	LR158547	SCREW	LR158547 SCREW Heatshield To Engine, M6 x 12MM	$2.27	14
HS1	LR159808	SCREW	LR159808 SCREW M6 x 30MM, V-Space Bridge	$4.13	4
5E258	LR159852	SHIELD - EXHAUST MANIFOLD HEAT	LR159852 SHIELD - EXHAUST MANIFOLD HEAT V-Space Bridge	$112.11	1
5K286A	LR170350	SHIELD	LR170350 SHIELD Upper	$130.72	1
5K286B	LR158244	HEAT SHIELD	LR158244 HEAT SHIELD Sensor, Sleeve	$20.14	1
5K286C	LR163179	HEAT SHIELD - TURBOCHARGER	LR163179 HEAT SHIELD - TURBOCHARGER Lower	$75.33	1
5K286D	LR158935	HEAT SHIELD - TURBOCHARGER	LR158935 HEAT SHIELD - TURBOCHARGER Alternator, Oil Drain	$158.83	1
5K286E	LR159819	HEAT SHIELD - TURBOCHARGER	LR159819 HEAT SHIELD - TURBOCHARGER RH Side	$75.29	1
5K286F	LR159827	SHIELD	LR159827 SHIELD LH Side	$120.05	1
6A957A	LR175160	Stud	LR175160 Stud Ball Stud, RH/LH	$7.08	2
6A957B	LR175161	Stud	LR175161 Stud Ball Stud, Centre	$7.08	1
2273	LR159065	GROMMET	LR159065 GROMMET V-Space Bridge	$8.12	2
8124	LR175162	Insulator	LR175162 Insulator	$22.83	4
11180	LR158950	SEAL	LR158950 SEAL Wire	$20.14	1

Turbocharger (Heatshields) (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
