Name: Turbocharger (Cooling) (4.4 V8 Turbo Petrol (NC10))
Rating: 4.4 (1 reviews)

View All

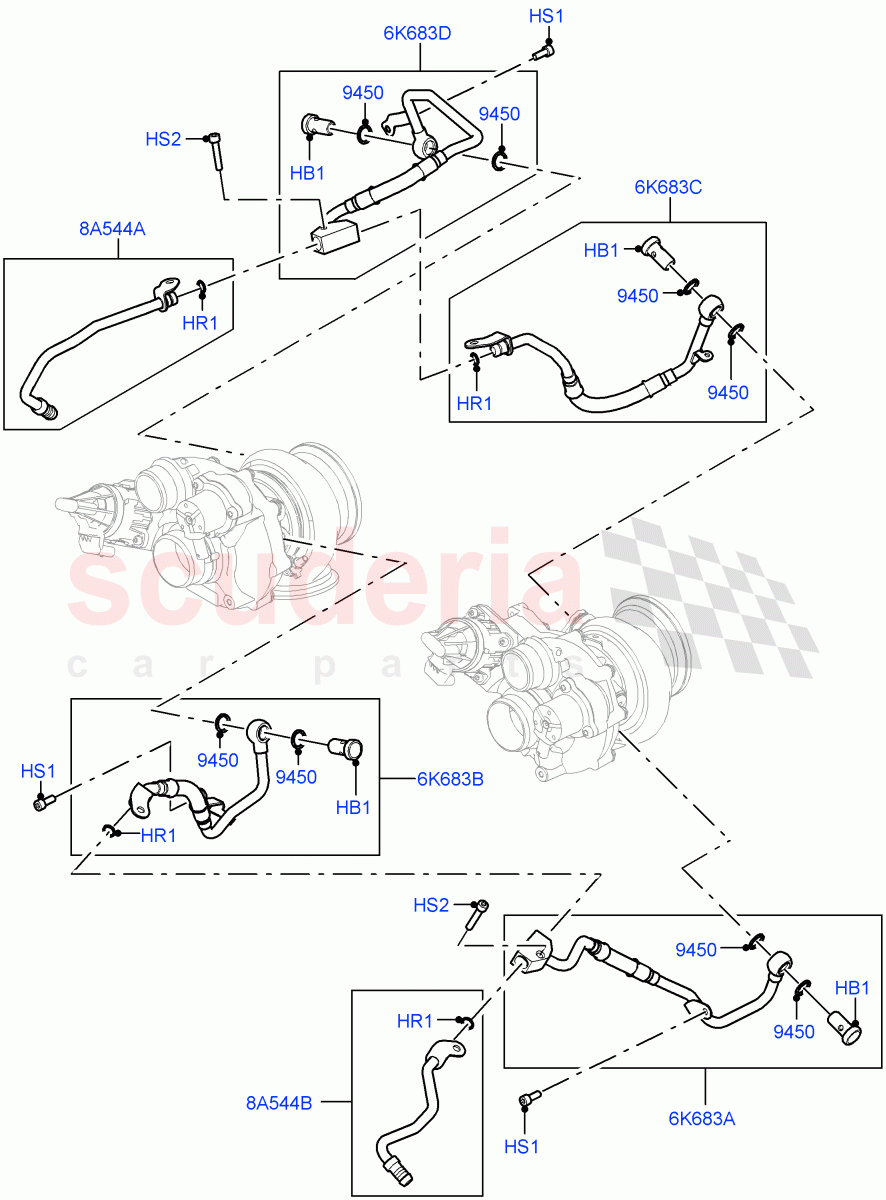

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158906	BOLT - BANJO	$13.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159311	RING - SEALING	$23.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158541	SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158539	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158227	WASHER - COPPER	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158948	CONNECTION - WATER	$104.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158951	CONNECTION - WATER	$80.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158947	CONNECTION - WATER	$80.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158974	CONNECTION - WATER	$104.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158979	CONNECTION - WATER	$80.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158949	CONNECTION - WATER	$62.39	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158906	BOLT - BANJO	LR158906 BOLT - BANJO Hollow Type, M14 x 26 mm	$13.22	4
HR1	LR159311	RING - SEALING	LR159311 RING - SEALING 9.7 x 1.5 mm	$23.50	4
HS1	LR158541	SCREW	LR158541 SCREW Coolant Line To Turbocharger, M6 X 16	$0.96	3
HS2	LR158539	SCREW	LR158539 SCREW Coolant Line To Expansion Tank Bracket, M6 x 30MM	$1.19	2
6K683A	LR158948	CONNECTION - WATER	LR158948 CONNECTION - WATER Coolant Feed, LH Turbocharger	$104.96	1
6K683B	LR158951	CONNECTION - WATER	LR158951 CONNECTION - WATER Coolant Feed, RH Turbocharger	$80.95	1
6K683C	LR158947	CONNECTION - WATER	LR158947 CONNECTION - WATER Coolant Return, LH Turbocharger	$80.95	1
6K683D	LR158974	CONNECTION - WATER	LR158974 CONNECTION - WATER Coolant Return, RH Turbocharger	$104.96	1
8A544A	LR158979	CONNECTION - WATER	LR158979 CONNECTION - WATER Both Turbochargers, Coolant Return	$80.95	1
8A544B	LR158949	CONNECTION - WATER	LR158949 CONNECTION - WATER Both Turbochargers, Coolant Feed	$62.39	1
9450	LR158227	WASHER - COPPER	LR158227 WASHER - COPPER 14 X 18, Banjo Washer, Requires 2 Pcs Per Banjo-Bolt	$3.11	8

Turbocharger (Cooling) (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
