Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Turbocharger (Lubrication) (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR158903 BOLT - BANJO Enquire To Order
Photo Part No Description Price (each) Stock
LR158546 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR158248 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR158210 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR158541 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR158228 WASHER - COPPER Enquire To Order
Photo Part No Description Price (each) Stock
LR159302 GASKET - OIL TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR158668 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR158664 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR158661 PIPE - OIL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR158659 PIPE - OIL FEED Enquire To Order
View All

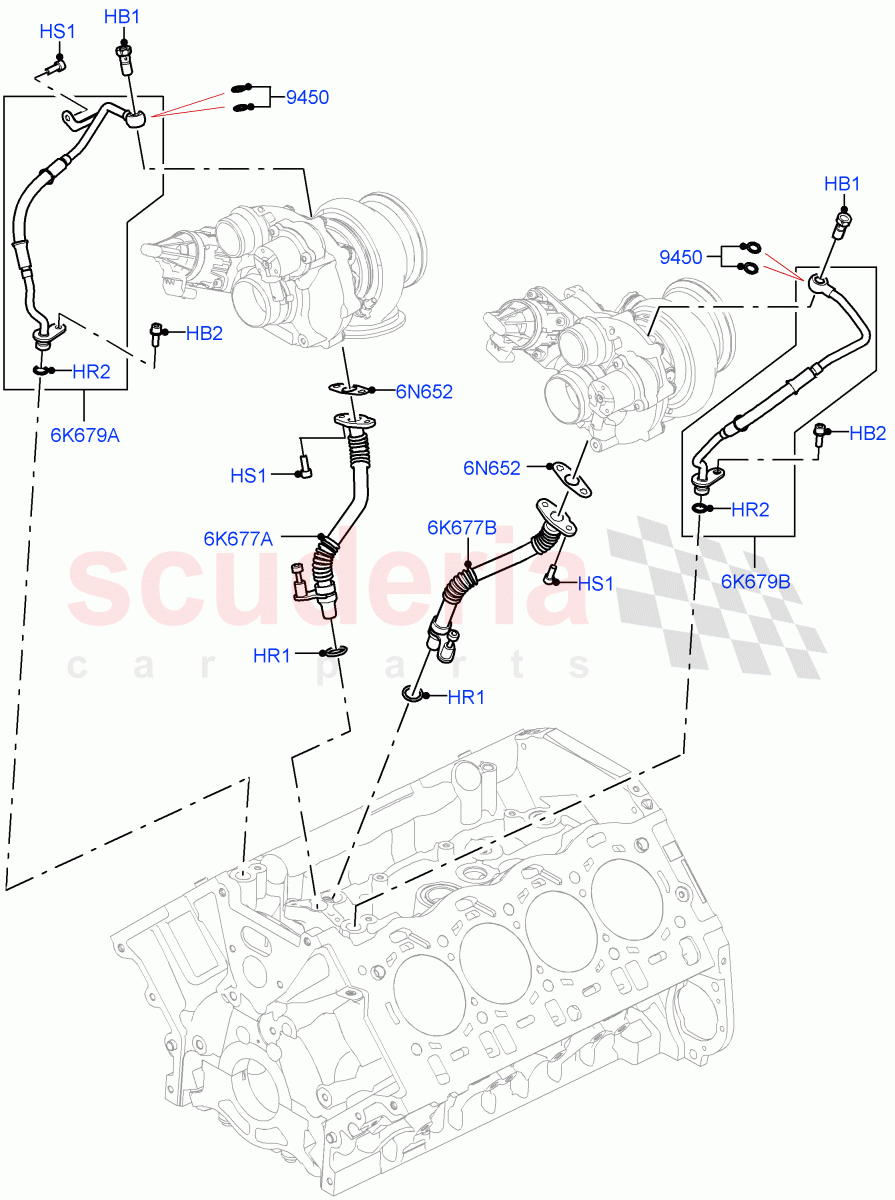

Turbocharger (Lubrication) (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR158903
BOLT - BANJO
Hollow Type, M10, Oil Feed Pipe 		- 2 Enquire
HB2 LR158546
SCREW AND WASHER
M6 x 18MM, Oil Feed Pipe 		- 2 Enquire
HR1 LR158248
O-RING
13.8 x 2.64 mm, Hose - Oil Return 		- 2 Enquire
HR2 LR158210
O-RING
11.2 x 2 mm, Oil Feed Pipe 		- 2 Enquire
HS1 LR158541
SCREW
M6 X 16 		- 5 Enquire
6K677A LR158668
TUBE
RH Turbocharger 		- 1 Enquire
6K677B LR158664
TUBE
LH Turbocharger 		- 1 Enquire
6K679A LR158661
PIPE - OIL FEED
RH Turbocharger 		- 1 Enquire
6K679B LR158659
PIPE - OIL FEED
LH Turbocharger 		- 1 Enquire
6N652 LR159302
GASKET - OIL TUBE
Hose - Oil Return 		- 2 Enquire
9450 LR158228
WASHER - COPPER
Banjo Washer, Oil Feed Pipe, Requires 2 Pcs Per Banjo-Bolt 		- 4 Enquire
