Name: Fuel Injectors And Pipes (4.4 V8 Turbo Petrol (NC10))
Rating: 4.3 (1 reviews)

View All

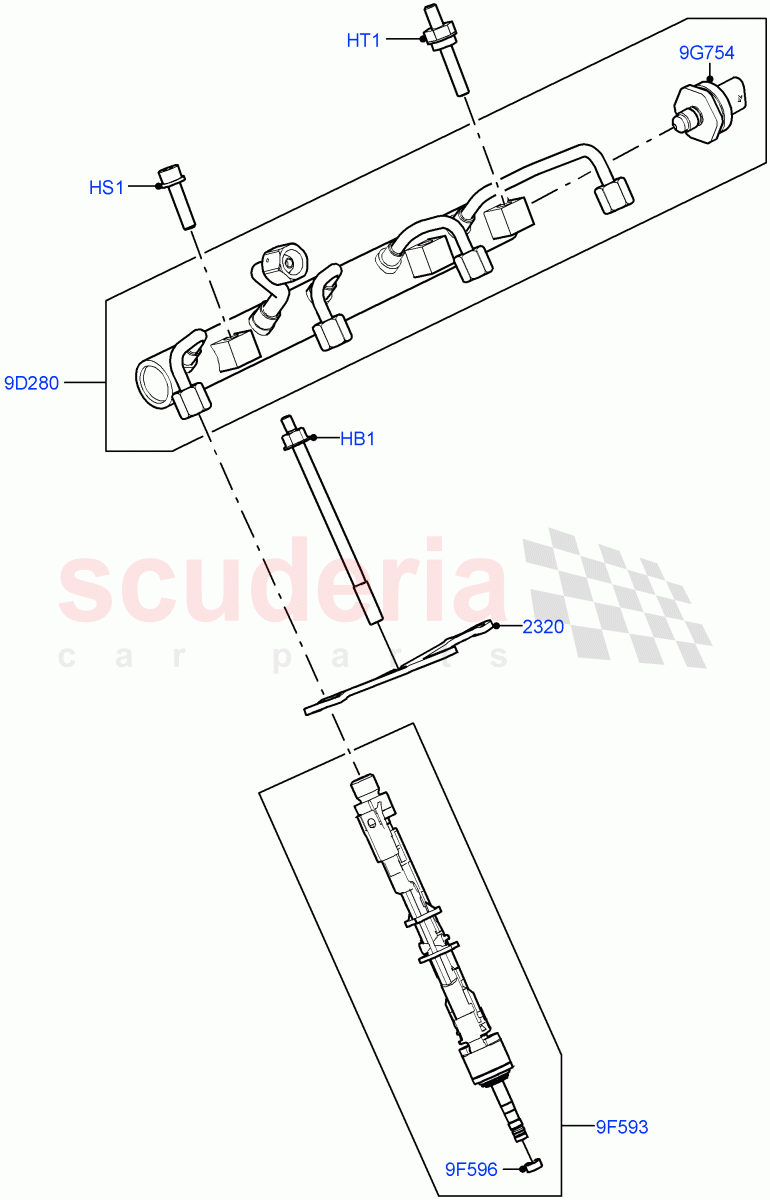

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158709	SCREW	$4.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158712	SCREW	$12.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158674	RETAINER - INJECTION VALVE	$16.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159314	INJECTOR	$407.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159334	SEAL	$8.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159321	SENSOR - FUEL INJECTOR PRESSURE	$180.98	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158709	SCREW	LR158709 SCREW Bracket, Fuel Injectors, M7 x 95 mm	$4.58	4
HS1	LR158538	SCREW	LR158538 SCREW M6 x 25MM, RH Cylinder Bank	$2.65	3
HS1	LR158538	SCREW	LR158538 SCREW LH Cylinder Bank, M6 x 25MM	$2.65	2
HT1	LR158712	SCREW	LR158712 SCREW LH Cylinder Bank	$12.25	1
9D280	LR159315	MANIFOLD - FUEL SUPPLY	LR159315 MANIFOLD - FUEL SUPPLY RH Cylinder Bank	$463.93	1
9D280	LR159316	MANIFOLD - FUEL SUPPLY	LR159316 MANIFOLD - FUEL SUPPLY LH Cylinder Bank	$459.88	1
9F593	LR159314	INJECTOR	LR159314 INJECTOR	$407.32	8
9F596	LR159334	SEAL	LR159334 SEAL Fuel Injectors	$8.10	8
9G754	LR159321	SENSOR - FUEL INJECTOR PRESSURE	LR159321 SENSOR - FUEL INJECTOR PRESSURE	$180.98	2
2320	LR158674	RETAINER - INJECTION VALVE	LR158674 RETAINER - INJECTION VALVE Fuel Injectors	$16.79	4

Fuel Injectors And Pipes (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
