Name: Wiring - Seats (2nd Row, Rear Seats) (With 2 Rear Small Individual Seats, 40/20/40 Super Slouch Rear Seat)
Rating: 4.4 (1 reviews)

Wiring - Seats (2nd Row, Rear Seats) (With 2 Rear Small Individual Seats, 40/20/40 Super Slouch Rear Seat) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Wiring - Seats (2nd Row, Rear Seats) (With 2 Rear Small Individual Seats, 40/20/40 Super Slouch...

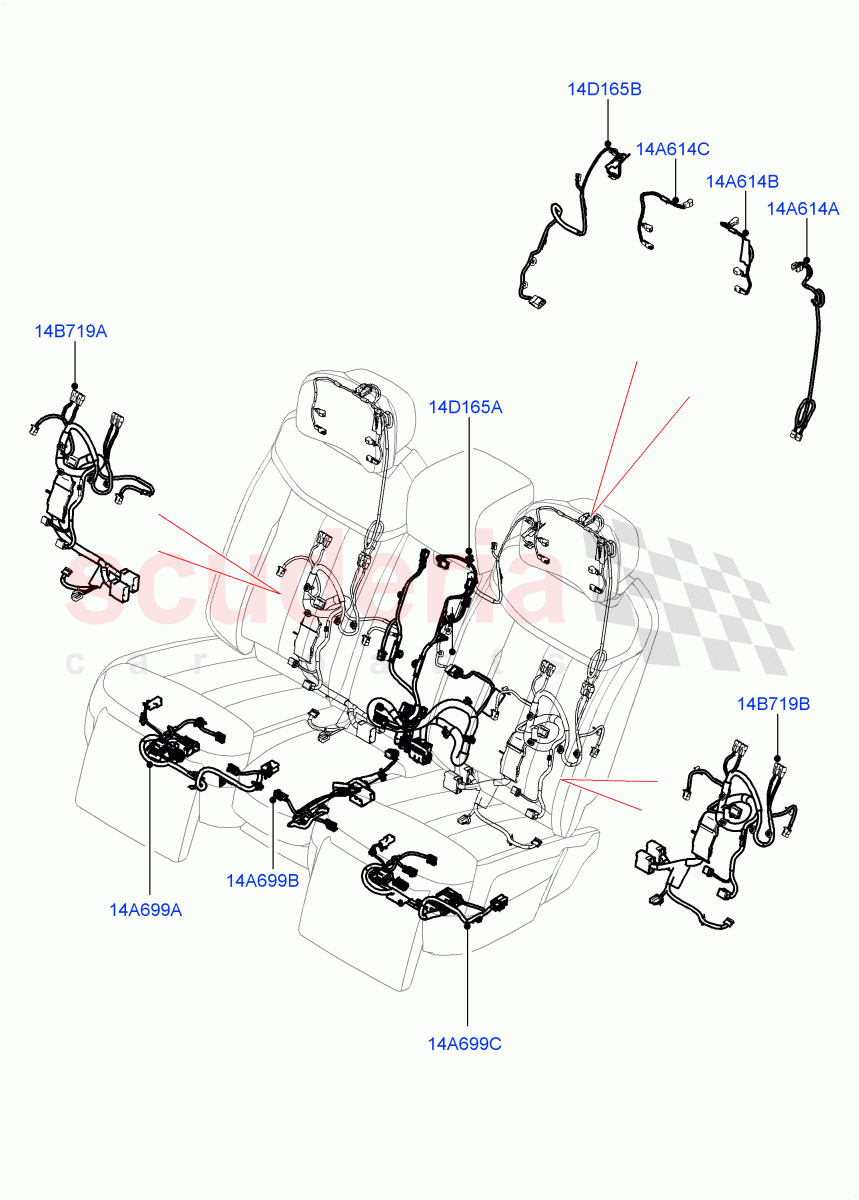

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR159262	LINK HARNESS - SEAT	$193.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159263	LINK HARNESS - SEAT	$185.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159264	LINK HARNESS - SEAT	$185.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158883	WIRING - SEAT	$226.91	To Order
	LR158884	WIRING - SEAT	$250.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158888	WIRING - SEAT	$205.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158885	WIRING - SEAT	$226.91	To Order
	LR158886	WIRING - SEAT	$250.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158892	WIRING - SEAT	$288.17	To Order
	LR158893	WIRING - SEAT	$260.50	To Order
	LR158889	WIRING - SEAT	$284.19	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR158896	WIRING - SEAT	$290.14	To Order
	LR158897	WIRING - SEAT	$262.49	To Order
	LR158894	WIRING - SEAT	$286.19	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR159258	WIRING - ARMREST	$184.15	To Order
	LR159259	WIRING - ARMREST	$212.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159257	WIRING - SEAT	$189.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
14A614A	LR159262	LINK HARNESS - SEAT	LR159262 LINK HARNESS - SEAT Arnc Gen 3 (4 Headrests) / LH Seat, RH Seat	$193.31	4
14A614B	LR159263	LINK HARNESS - SEAT	LR159263 LINK HARNESS - SEAT Arnc Gen 3 (4 Headrests) / Left Side, LH Seat, RH Seat	$185.41	2
14A614C	LR159264	LINK HARNESS - SEAT	LR159264 LINK HARNESS - SEAT Arnc Gen 3 (4 Headrests) / LH Seat, RH Seat, Right Side	$185.41	2
14A699A	LR158883	WIRING - SEAT	LR158883 WIRING - SEAT Less Rear Seat Calf Rests / RH	$226.91	1
14A699A	LR158884	WIRING - SEAT	LR158884 WIRING - SEAT LHD, Passenger Side Heated Calf Rest / RH	$250.63	1
14A699B	LR158888	WIRING - SEAT	LR158888 WIRING - SEAT Centre	$205.17	1
14A699C	LR158885	WIRING - SEAT	LR158885 WIRING - SEAT Heated And Cooled Rear Seats, Less Rear Seat Calf Rests / LH	$226.91	1
14A699C	LR158886	WIRING - SEAT	LR158886 WIRING - SEAT Driver + Passenger Heated Calf Rest / LH	$250.63	1
14B719A	LR158892	WIRING - SEAT	LR158892 WIRING - SEAT Arnc Gen 3 (4 Headrests), Illuminated Seat Belt Buckle / RH	$288.17	1
14B719A	LR158893	WIRING - SEAT	LR158893 WIRING - SEAT Illuminated Seat Belt Buckle, Less Active Road Noise Cancellation / RH	$260.50	1
14B719A	LR158889	WIRING - SEAT	LR158889 WIRING - SEAT Arnc Gen 3 (4 Headrests), Less Illuminated Seat Belt Buckle / RH / From: PA000001	$284.19	1
14B719A	LR158891	WIRING - SEAT	LR158891 WIRING - SEAT Less Active Road Noise Cancellation, Less Illuminated Seat Belt Buckle / RH / From: PA000001	$256.56	1
14B719B	LR158896	WIRING - SEAT	LR158896 WIRING - SEAT Arnc Gen 3 (4 Headrests), Illuminated Seat Belt Buckle / LH	$290.14	1
14B719B	LR158897	WIRING - SEAT	LR158897 WIRING - SEAT Illuminated Seat Belt Buckle, Less Active Road Noise Cancellation / LH	$262.49	1
14B719B	LR158894	WIRING - SEAT	LR158894 WIRING - SEAT Arnc Gen 3 (4 Headrests), Less Illuminated Seat Belt Buckle / LH / From: PA000001	$286.19	1
14B719B	LR158895	WIRING - SEAT	LR158895 WIRING - SEAT Less Active Road Noise Cancellation, Less Illuminated Seat Belt Buckle / LH / From: PA000001	$258.53	1
14D165A	LR159258	WIRING - ARMREST	LR159258 WIRING - ARMREST Less Rear Entertainment Screen	$184.15	1
14D165A	LR159259	WIRING - ARMREST	LR159259 WIRING - ARMREST Rear Entertainment Scrn - 11.6 Inch	$212.15	1
14D165B	LR159257	WIRING - SEAT	LR159257 WIRING - SEAT	$189.36	1
