Engine Harness (Lh Side) (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Engine Harness (LH Side) (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR158585 BOLT AND WASHER - TORX HEAD $2.07 To Order
Photo Part No Description Price (each) Stock
LR158328 BOLT AND WASHER - HEX.HEAD $2.07 To Order
Photo Part No Description Price (each) Stock
LR166985 CLIP - WIRING $3.61 To Order
Photo Part No Description Price (each) Stock
LR163186 CLIP - SINGLE $17.91 To Order
Photo Part No Description Price (each) Stock
LR158472 NUT - FLANGED $1.24 To Order
Photo Part No Description Price (each) Stock
LR166039 NUT - FLANGED $2.47 To Order
Photo Part No Description Price (each) Stock
LR159853 BRACKET $44.87 To Order
Photo Part No Description Price (each) Stock
LR158901 WIRING $959.81 To Order
Photo Part No Description Price (each) Stock
LR158813 WIRING - ENGINE $959.81 To Order
Photo Part No Description Price (each) Stock
LR158875 WIRING - FUEL INJECTORS $136.46 To Order
View All

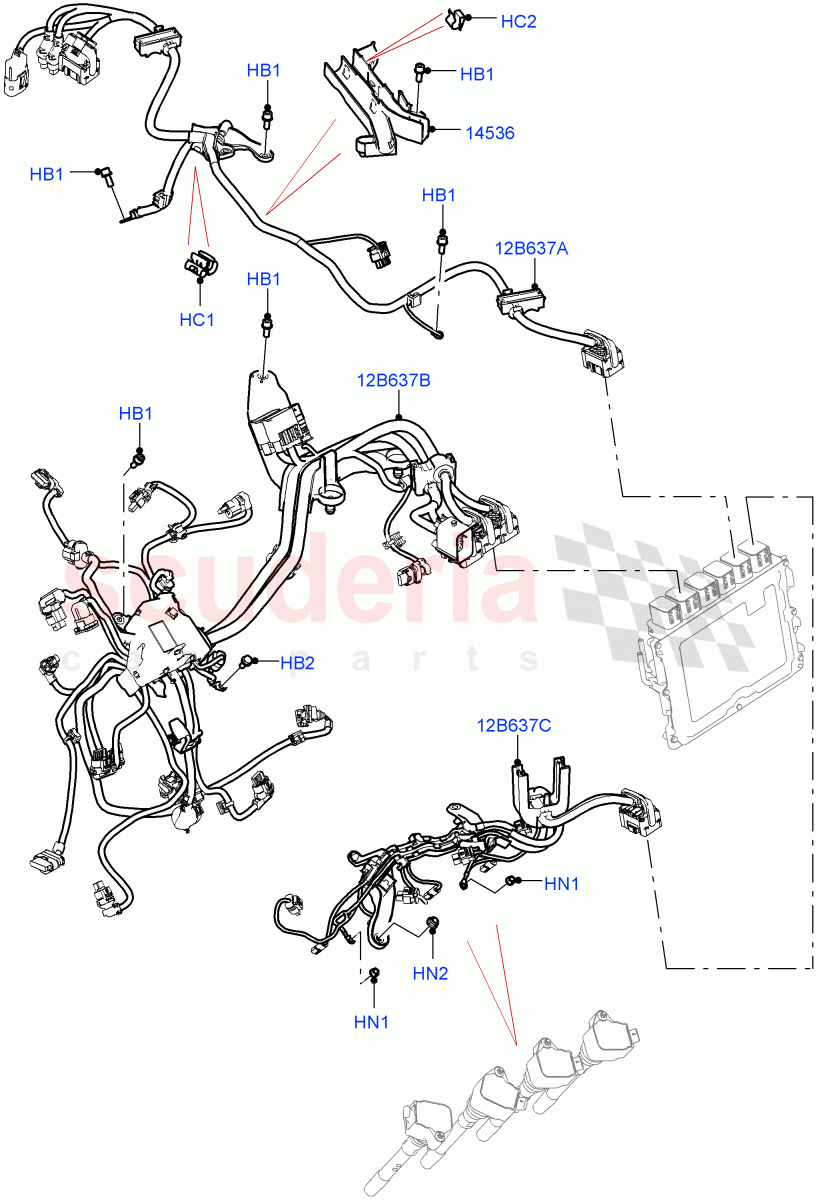

Engine Harness (LH Side) (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR158585
BOLT AND WASHER - TORX HEAD
M6 X 16MM 		$2.07 8
HB2 LR158328
BOLT AND WASHER - HEX.HEAD
M6 x 14mm 		$2.07 1
HC1 LR166985
CLIP - WIRING
Engine Harness, Ground Link 		$3.61 1
HC2 LR163186
CLIP - SINGLE
Bracket, Engine Harness, Interconnection 		$17.91 2
HN1 LR158472
NUT - FLANGED
M5 		$1.24 2
HN2 LR166039
NUT - FLANGED
M6 		$2.47 1
12B637A LR158901
WIRING
Interconnection, RH And LH 		$959.81 1
12B637B LR158813
WIRING - ENGINE
LH Cylinder Bank, Main Harness - Engine 		$959.81 1
12B637C LR158875
WIRING - FUEL INJECTORS
Fuel Injector, Ignition Coil, LH Cylinder Bank 		$136.46 1
14536 LR159853
BRACKET
Interconnection, RH And LH, Wire 		$44.87 1
