Battery Cables And Horn of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Battery Cables And Horn

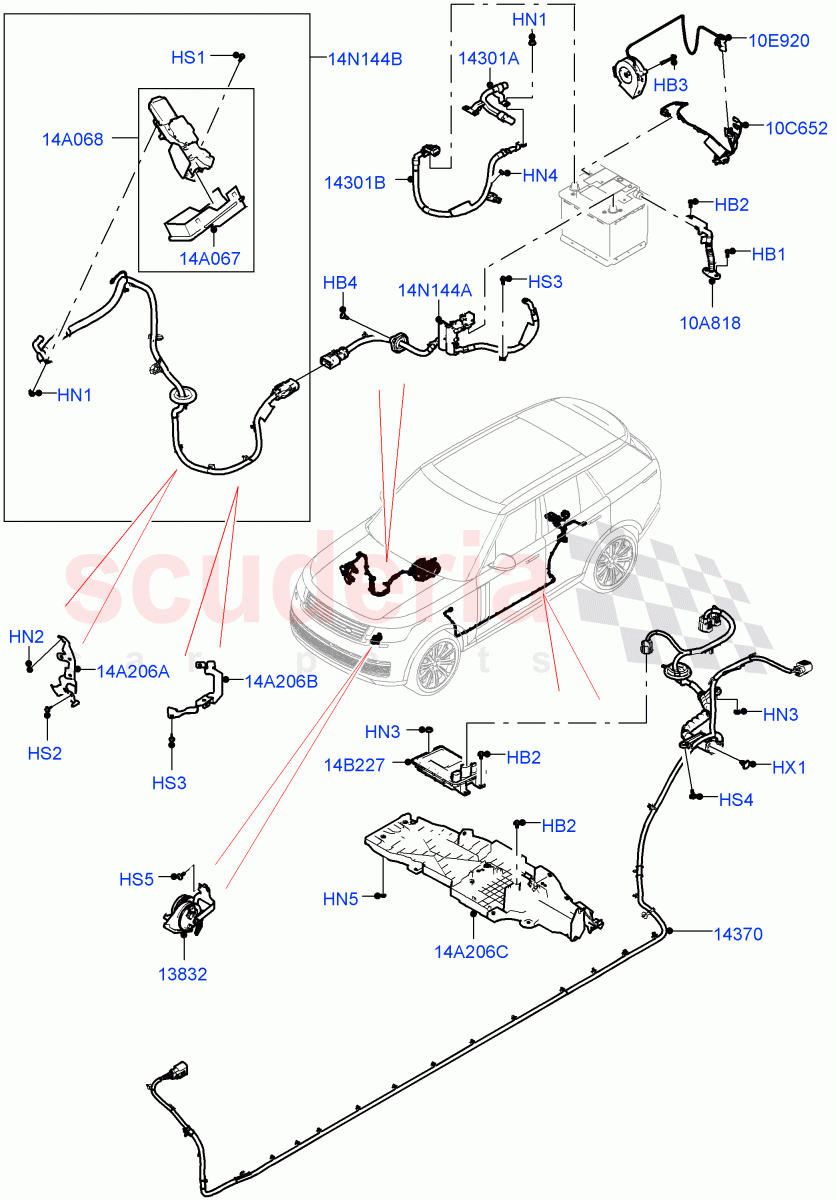

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR166355	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	Enquire	To Order
	RYG500800	BOLT	Enquire	To Order
	RYG500800	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR173226	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154099	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500540	NUT - SPECIAL	Enquire	To Order
	RYH500540	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154100	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500290	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	Enquire	To Order
	RYG500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122583	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133305	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153017	HORN	Enquire	To Order
	LR153021	HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159236	HARNESS - SUPERCAP	Enquire	To Order
	LR159237	HARNESS - SUPERCAP	Enquire	To Order
	LR159238	HARNESS - SUPERCAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152804	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152806	BATTERY MANAGEMENT SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170077	FAN - AUXILIARY COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159232	CABLE - BATTERY NEGATIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159231	CABLE - BATTERY NEGATIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164960	PANEL - FUSE JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154056	BOX - FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153302	ACTIVE ROLL CONTROL MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159068	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159069	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151468	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159233	CABLE - BATTERY POSITIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159227	JUNCTION BOX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR166355	Bolt	LR166355 Bolt Bolt And Washer, M6 X 20MM, Ventilation Tube	-	2	Enquire
HB2	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM, Ventilation Tube	-	1	Enquire
HB2	RYG500800	BOLT	RYG500800 BOLT Electronic Air Suspension With ACE, With Third Row Power Folding Seat / Converter, Hexagonal Head, M6 X 16MM	-	3	Enquire
HB2	RYG500800	BOLT	RYG500800 BOLT With Third Row Power Folding Seat / Converter Bracket, Hexagonal Head, M6 X 16MM	-	2	Enquire
HB3	LR173226	BOLT	LR173226 BOLT Fan, M6 x 50MM	-	2	Enquire
HB4	LR154099	BOLT - HEX.HEAD	LR154099 BOLT - HEX.HEAD Cable Assembly Positive Main 12V Battery, M5 x 20MM	-	2	Enquire
HN1	LR122999	NUT - HEX.	LR122999 NUT - HEX. Fuse Box, M8	-	1	Enquire
HN2	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, Jump Start Wheel Arch Bracket, M6	-	1	Enquire
HN3	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL Electronic Air Suspension With ACE / Converter, M6	-	2	Enquire
HN3	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL Electronic Air Suspension With ACE / M6, Supercap Harness	-	1	Enquire
HN4	LR154100	NUT - FLANGED	LR154100 NUT - FLANGED Ground Wire, Inside Box, M6	-	1	Enquire
HN5	RYH500290	NUT AND WASHER - HEX.	RYH500290 NUT AND WASHER - HEX. With Third Row Power Folding Seat / Converter Bracket, M6	-	4	Enquire
HS1	RYG500220	SCREW	RYG500220 SCREW Fuse Box, Hexagonal Head, M6 X 20MM	-	2	Enquire
HS2	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, Jump Start Wheel Arch Bracket, M6 X 20MM	-	1	Enquire
HS3	RYG500190	SCREW	RYG500190 SCREW Hexagonal Head, Jump Start Under Body Bracket, M6 X 16MM	-	2	Enquire
HS3	RYG500190	SCREW	RYG500190 SCREW Cable Assembly Positive Main 12V Battery, Hexagonal Head, M6 X 16MM	-	1	Enquire
HS4	FYP500550	SCREW	FYP500550 SCREW Electronic Air Suspension With ACE / Hexagonal Head, M6 X 20MM	-	1	Enquire
HS5	LR122583	SCREW	LR122583 SCREW Hexagonal Head, Horn, M6 X 16	-	2	Enquire
HX1	LR133305	RETAINER - RIVET	LR133305 RETAINER - RIVET Electronic Air Suspension With ACE / 10.5 x 6 mm	-	1	Enquire
10A818	LR152804	HOSE - VENT	LR152804 HOSE - VENT	-	1	Enquire
10C652	LR152806	BATTERY MANAGEMENT SYSTEM	LR152806 BATTERY MANAGEMENT SYSTEM	-	1	Enquire
10E920	LR170077	FAN - AUXILIARY COOLING	LR170077 FAN - AUXILIARY COOLING	-	1	Enquire
14A067	LR164960	PANEL - FUSE JUNCTION	LR164960 PANEL - FUSE JUNCTION Fuse Box Component, Lower	-	1	Enquire
14A068	LR154056	BOX - FUSE	LR154056 BOX - FUSE Standard	-	1	Enquire
14A206A	LR159068	BRACKET	LR159068 BRACKET Jump Start Wheel Arch Bracket	-	1	Enquire
14A206B	LR159069	BRACKET	LR159069 BRACKET Jump Start Under Body Bracket	-	1	Enquire
14A206C	LR151468	BRACKET - MODULE	LR151468 BRACKET - MODULE With Third Row Power Folding Seat / Converter Bracket	-	1	Enquire
14B227	LR153302	ACTIVE ROLL CONTROL MODULE	LR153302 ACTIVE ROLL CONTROL MODULE Electronic Air Suspension With ACE	-	1	Enquire
14N144A	LR159233	CABLE - BATTERY POSITIVE	LR159233 CABLE - BATTERY POSITIVE Cable Assembly Positive Main 12V Battery	-	1	Enquire
14N144B	LR159227	JUNCTION BOX	LR159227 JUNCTION BOX Electric Engine Battery-MHEV / Main Power Feed Subassembly	-	1	Enquire
13832	LR153017	HORN	LR153017 HORN Dual Note Electric Horn	-	1	Enquire
13832	LR153021	HORN	LR153021 HORN Dual Note Electric Horn - Level 2	-	1	Enquire
14301A	LR159232	CABLE - BATTERY NEGATIVE	LR159232 CABLE - BATTERY NEGATIVE Outside Box	-	1	Enquire
14301B	LR159231	CABLE - BATTERY NEGATIVE	LR159231 CABLE - BATTERY NEGATIVE Inside Box	-	1	Enquire
14370	LR159236	HARNESS - SUPERCAP	LR159236 HARNESS - SUPERCAP Electronic Air Suspension With ACE, Less 3rd Row Rear Seat, Standard Wheelbase	-	1	Enquire
14370	LR159237	HARNESS - SUPERCAP	LR159237 HARNESS - SUPERCAP Electronic Air Suspension With ACE, Less 3rd Row Rear Seat, Long Wheelbase	-	1	Enquire
14370	LR159238	HARNESS - SUPERCAP	LR159238 HARNESS - SUPERCAP Electronic Air Suspension With ACE, Long Wheelbase, With Third Row Power Folding Seat	-	1	Enquire
