Name: Engine Harness (RH Side) (4.4 V8 Turbo Petrol (NC10))
Rating: 5.0 (1 reviews)

Engine Harness (RH Side) (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Engine Harness (RH Side) (4.4 V8 Turbo Petrol (NC10))

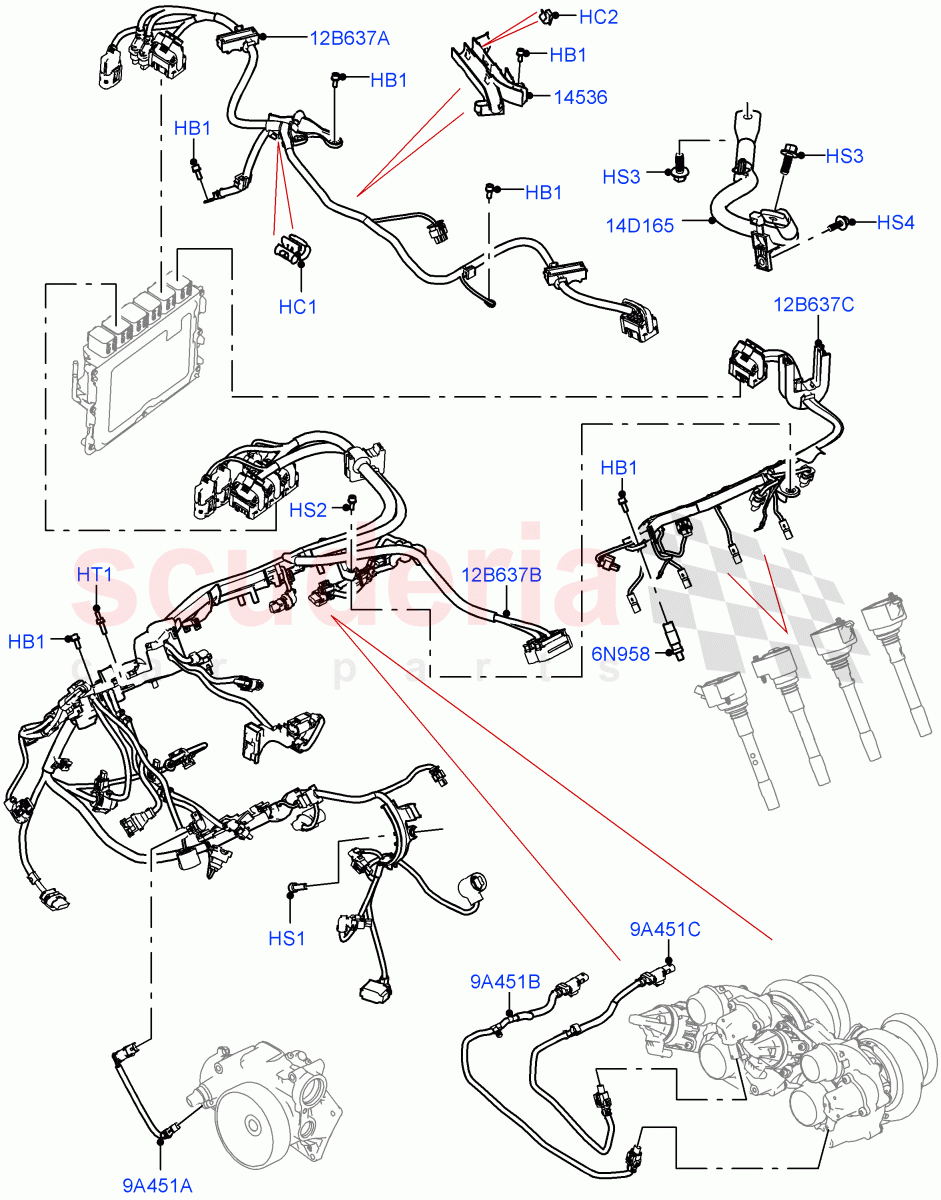

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158585	BOLT AND WASHER - TORX HEAD	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166985	CLIP - WIRING	$3.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163186	CLIP - SINGLE	$17.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159796	SCREW	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158538	SCREW	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124564	SCREW	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122583	SCREW	$2.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158564	STUD	$15.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159853	BRACKET	$44.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176307	Stud	$6.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159242	WIRE - ENGINE EARTH	$26.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159030	LINK LEAD	$106.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159312	LINK LEAD	$47.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159029	LINK LEAD	$47.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158901	WIRING	$959.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158807	WIRING - ENGINE	$959.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158865	WIRING - FUEL INJECTORS	$131.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158585	BOLT AND WASHER - TORX HEAD	LR158585 BOLT AND WASHER - TORX HEAD M6 X 16MM	$2.07	7
HC1	LR166985	CLIP - WIRING	LR166985 CLIP - WIRING Engine Harness, Ground Link	$3.61	1
HC2	LR163186	CLIP - SINGLE	LR163186 CLIP - SINGLE Bracket, Engine Harness, Interconnection	$17.91	2
HS1	LR159796	SCREW	LR159796 SCREW M8 X 20MM	$2.69	1
HS2	LR158538	SCREW	LR158538 SCREW M6 x 25MM, Main Harness	$2.65	1
HS3	LR124564	SCREW	LR124564 SCREW Engine Earth, Hexagonal Head, M8 X 20MM, Taptite	$2.15	2
HS4	LR122583	SCREW	LR122583 SCREW Engine Earth, Hexagonal Head, M6 X 16	$2.09	2
HT1	LR158564	STUD	LR158564 STUD M6/M5	$15.05	1
6N958	LR176307	Stud	LR176307 Stud Fuel Injector, Ignition Coil, RH Cylinder Bank	$6.83	1
9A451A	LR159030	LINK LEAD	LR159030 LINK LEAD Water Pump	$106.08	1
9A451B	LR159312	LINK LEAD	LR159312 LINK LEAD Adapter Cable eSUV, RH Cylinder Bank	$47.21	1
9A451C	LR159029	LINK LEAD	LR159029 LINK LEAD Adapter Cable eSUV, LH Cylinder Bank	$47.21	1
12B637A	LR158901	WIRING	LR158901 WIRING Interconnection, RH And LH	$959.81	1
12B637B	LR158807	WIRING - ENGINE	LR158807 WIRING - ENGINE Main Harness - Engine, RH Cylinder Bank	$959.81	1
12B637C	LR158865	WIRING - FUEL INJECTORS	LR158865 WIRING - FUEL INJECTORS Fuel Injector, Ignition Coil, RH Cylinder Bank	$131.83	1
14D165	LR159242	WIRE - ENGINE EARTH	LR159242 WIRE - ENGINE EARTH Engine Earth	$26.81	1
14536	LR159853	BRACKET	LR159853 BRACKET Interconnection, RH And LH, Wire	$44.87	1
