Body Mouldings ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Body Mouldings ((V) FROMAA000001)

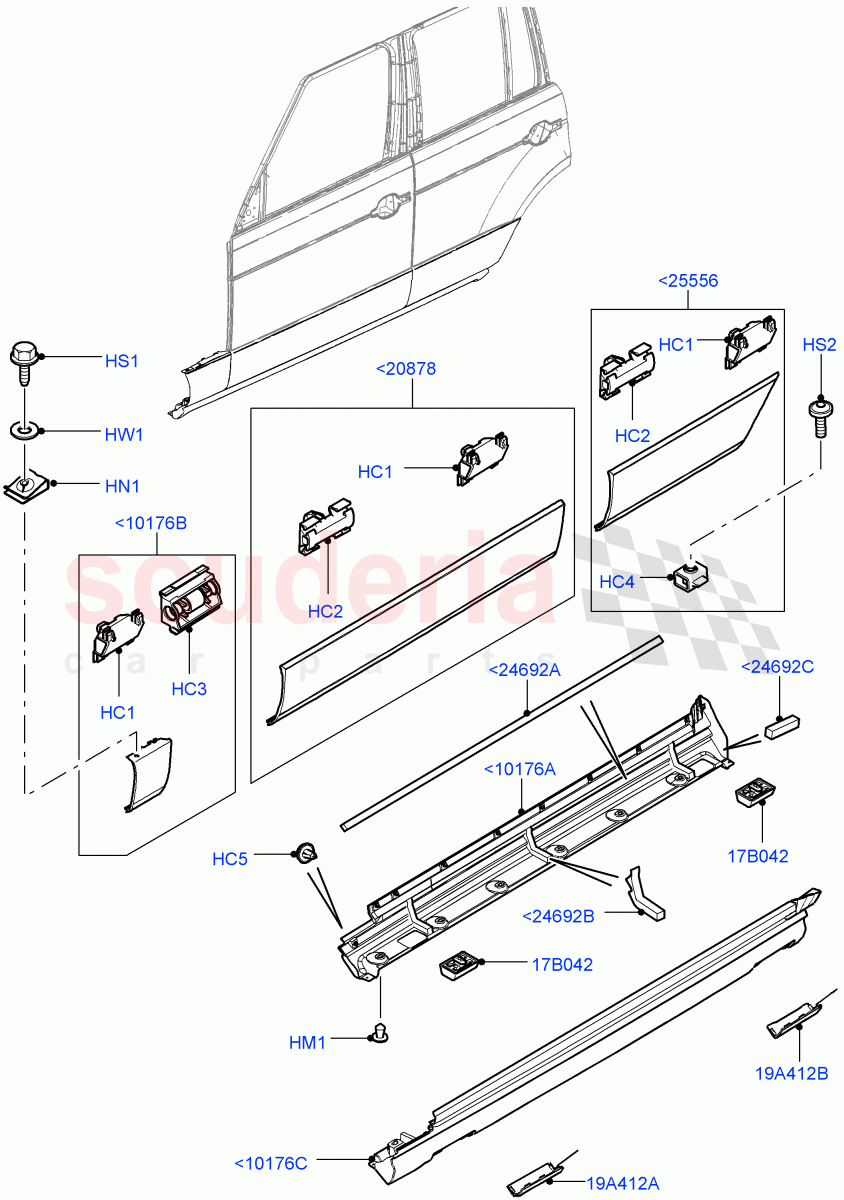

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYC000091	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYC000122	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYC000080	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYC000130	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018389	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500190	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500120	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYF105200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006221	CLADDING - DOOR	Enquire	To Order
	LR006222	MOULDING - DOOR OUTSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006219	MOULDING - DOOR OUTSIDE	Enquire	To Order
	LR006220	MOULDING - DOOR OUTSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KAV100041	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018383	MOULDING	Enquire	To Order
	LR018384	MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DDC500440	MOULDING - DOOR OUTSIDE	Enquire	To Order
	DDC500450	MOULDING - DOOR OUTSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023795	MOULDING	Enquire	To Order
	LR023796	MOULDING	Enquire	To Order
	LR026422	MOULDING - DOOR SILL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR018385	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR022937	SEAL - DOOR FRONT AND REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018386	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR022938	SEAL - DOOR FRONT AND REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022940	SEAL - DOOR FRONT AND REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023772	COVER - JACKING POINT	Enquire	To Order
	LR023773	COVER - JACKING POINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023775	COVER - JACKING POINT	Enquire	To Order
	LR023776	COVER - JACKING POINT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<10176A	LR018383	MOULDING	LR018383 MOULDING RH, Black / From: AA000001	-	1	Enquire
<10176A	LR018384	MOULDING	LR018384 MOULDING LH, Black / From: AA000001	-	1	Enquire
<10176B	DDC500440	MOULDING - DOOR OUTSIDE	DDC500440 MOULDING - DOOR OUTSIDE RH, Front Fender, Primed / From: AA000001	-	1	Enquire
<10176B	DDC500450	MOULDING - DOOR OUTSIDE	DDC500450 MOULDING - DOOR OUTSIDE LH, Front Fender, Primed / From: AA000001	-	1	Enquire
<10176C	LR023795	MOULDING	LR023795 MOULDING Sill Moulding - Exterior Sport / RH, Primed / From: AA313069 / To: AA999999	-	1	Enquire
<10176C	LR023796	MOULDING	LR023796 MOULDING Sill Moulding - Exterior Sport / LH, Primed / From: AA313069 / To: AA999999	-	1	Enquire
<10176C	LR026422	MOULDING - DOOR SILL	LR026422 MOULDING - DOOR SILL Sill Moulding - Exterior Sport / RH, For Power Deployable Side Steps Please Order Standard Sill Mouldings LR018383 And LR018384, Primed / From: BA000001	-	1	Enquire
<10176C	LR026423	MOULDING - DOOR SILL	LR026423 MOULDING - DOOR SILL Sill Moulding - Exterior Sport / LH, For Power Deployable Side Steps Please Order Standard Sill Mouldings LR018383 And LR018384, Primed / From: BA000001	-	1	Enquire
<20878	LR006221	CLADDING - DOOR	LR006221 CLADDING - DOOR RH, Front Door, Primed / From: AA000001	-	1	Enquire
<20878	LR006222	MOULDING - DOOR OUTSIDE	LR006222 MOULDING - DOOR OUTSIDE LH, Front Door, Primed / From: AA000001	-	1	Enquire
<24692A	LR018385	SEAL - DOOR FRONT AND REAR	LR018385 SEAL - DOOR FRONT AND REAR Moulding / From: AA000001 / To: BA334342	-	1	Enquire
<24692A	LR022937	SEAL - DOOR FRONT AND REAR	LR022937 SEAL - DOOR FRONT AND REAR Moulding / From: BA334343	-	1	Enquire
<24692B	LR018386	SEAL - DOOR FRONT AND REAR	LR018386 SEAL - DOOR FRONT AND REAR Moulding / From: AA000001 / To: BA334342	-	3	Enquire
<24692B	LR022938	SEAL - DOOR FRONT AND REAR	LR022938 SEAL - DOOR FRONT AND REAR Moulding / From: BA334343	-	1	Enquire
<24692C	LR022940	SEAL - DOOR FRONT AND REAR	LR022940 SEAL - DOOR FRONT AND REAR 75 X 10 X 12 MM, Sill / From: BA334343	-	1	Enquire
<25556	LR006219	MOULDING - DOOR OUTSIDE	LR006219 MOULDING - DOOR OUTSIDE RH, Primed, Rear Door / From: AA000001	-	1	Enquire
<25556	LR006220	MOULDING - DOOR OUTSIDE	LR006220 MOULDING - DOOR OUTSIDE LH, Primed, Rear Door / From: AA000001	-	1	Enquire
HC1	DYC000091	CLIP	DYC000091 CLIP Door, Moulding / From: AA000001	-	12	Enquire
HC2	DYC000122	CLIP	DYC000122 CLIP Door, Moulding / From: AA000001	-	10	Enquire
HC3	DYC000080	CLIP	DYC000080 CLIP Front Fender / From: AA000001	-	1	Enquire
HC4	DYC000130	CLIP	DYC000130 CLIP Rear Door / From: AA000001	-	1	Enquire
HC5	LR018389	CLIP	LR018389 CLIP Moulding / From: AA000001	-	1	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Moulding, Pin / From: AA000001	-	6	Enquire
HN1	DYH500190	NUT - FLANGED	DYH500190 NUT - FLANGED Front Fender, Nut "U" Spring,	-	1	Enquire
HS1	VYP500120	SCREW AND WASHER	VYP500120 SCREW AND WASHER 4.8 X 19MM, Front Fender, Hex Head, Self Tapping / From: AA000001	-	1	Enquire
HS2	BYP500270	SCREW	BYP500270 SCREW M4.2 x 1.41, Rear Door, Torx / From: AA000001	-	1	Enquire
HW1	QYF105200	WASHER	QYF105200 WASHER Front Fender,	-	1	Enquire
17B042	KAV100041	PAD	KAV100041 PAD Moulding / From: AA000001	-	2	Enquire
19A412A	LR023772	COVER - JACKING POINT	LR023772 COVER - JACKING POINT Sill Moulding - Exterior Sport / RH, Front, Primed / From: AA313069	-	1	Enquire
19A412A	LR023773	COVER - JACKING POINT	LR023773 COVER - JACKING POINT Sill Moulding - Exterior Sport / LH, Front, Primed / From: AA313069	-	1	Enquire
19A412B	LR023775	COVER - JACKING POINT	LR023775 COVER - JACKING POINT Sill Moulding - Exterior Sport / RH, Primed, Rear / From: AA313069	-	1	Enquire
19A412B	LR023776	COVER - JACKING POINT	LR023776 COVER - JACKING POINT Sill Moulding - Exterior Sport / LH, Primed, Rear / From: AA313069	-	1	Enquire
