Name: Luggage Compartment Door (Door And Fixings) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Luggage Compartment Door (Door And Fixings) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Luggage Compartment Door (Door And Fixings) ((V) FROMAA000001)

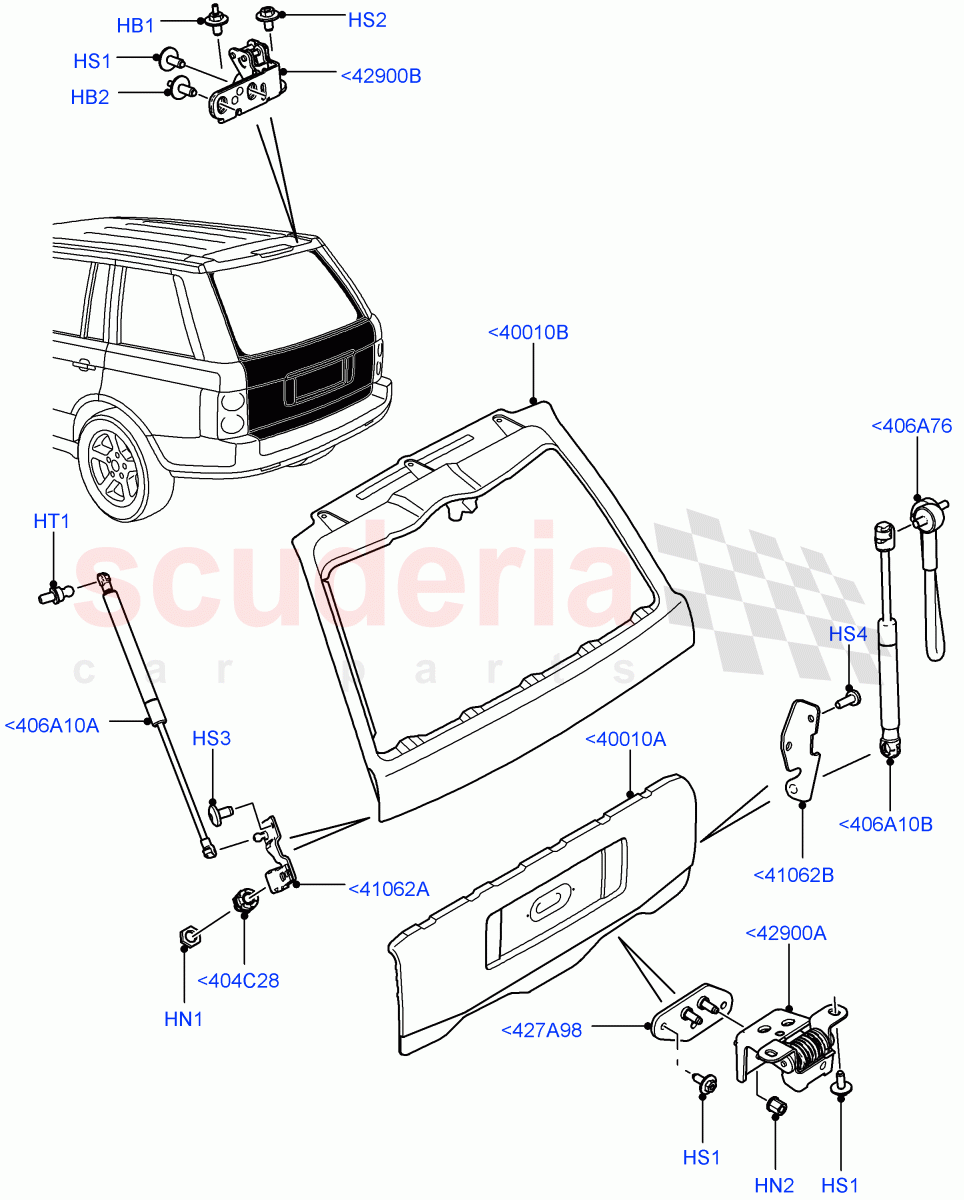

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYG500120	BOLT	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	AYG500110	BOLT	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	BYH500110	NUT - FLANGED	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH500260	NUT - FLANGED	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500190	SCREW	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500210	SCREW	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP100210	SCREW	$3.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003808	BOLT - HEX.HEAD	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BYR500030	STUD	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	BMD760010	DOOR - LUGGAGE COMPARTMENT	$1,030.35	To Order
	LR018131	DOOR - LUGGAGE COMPARTMENT	$1,114.16	To Order

Photo	Part No	Description	Price (each)	Stock
	BHA760090	DOOR - LUGGAGE COMPARTMENT	$2,273.06	To Order

Photo	Part No	Description	Price (each)	Stock
	BHM760021	WEDGE	$42.83	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC000040	STRAP - CABLE	$98.77	To Order
	LR017461	STRAP - CABLE	$67.34	To Order
	LR017462	CABLE - TAILGATE SUPPORT	$67.34	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR018985	BRACKET	$33.25	To Order
	LR018986	BRACKET	$30.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017590	BRACKET	$6.11	To Order
	LR020219	BRACKET	$6.11	To Order
	LR021053	BRACKET	$141.12	To Order

Photo	Part No	Description	Price (each)	Stock
	BDP760180	PAD	$10.45	To Order

Photo	Part No	Description	Price (each)	Stock
	BMB760080	HINGE	$70.87	To Order

Photo	Part No	Description	Price (each)	Stock
	BMB760100	HINGE	$63.29	To Order
	BMB760110	HINGE	$63.29	To Order

Photo	Part No	Description	Price (each)	Stock
	BHE760020	LIFT - GAS	$47.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017455	LIFT - GAS	$33.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<404C28	BHM760021	WEDGE	BHM760021 WEDGE Location, Upper Tailgate / From: AA000001	$42.83	2
<406A10A	BHE760020	LIFT - GAS	BHE760020 LIFT - GAS Upper Tailgate / From: AA000001	$47.64	2
<406A10B	LR017455	LIFT - GAS	LR017455 LIFT - GAS Lower Tailgate, RH Side Only / From: AA313069	$33.59	1
<406A76	FRC000040	STRAP - CABLE	FRC000040 STRAP - CABLE Lower Tailgate, RH/LH / From: AA000001 / To: AA313068	$98.77	2
<406A76	LR017461	STRAP - CABLE	LR017461 STRAP - CABLE RH, Lower Tailgate / From: AA313069 / To: AA376431	$67.34	1
<406A76	LR017462	CABLE - TAILGATE SUPPORT	LR017462 CABLE - TAILGATE SUPPORT LH, Lower Tailgate / From: AA313069 / To: AA375508	$67.34	1
<406A76	LR038048	STRAP - CABLE	LR038048 STRAP - CABLE RH, Lower Tailgate / From: AA376432	$67.34	1
<406A76	LR038051	STRAP - CABLE	LR038051 STRAP - CABLE LH, Lower Tailgate / From: AA375509	$67.34	1
<427A98	BDP760180	PAD	BDP760180 PAD Bracket, Lower Tailgate / From: AA000001	$10.45	2
<40010A	BMD760010	DOOR - LUGGAGE COMPARTMENT	BMD760010 DOOR - LUGGAGE COMPARTMENT Lower / From: AA000001 / To: AA313068	$1,030.35	1
<40010A	LR018131	DOOR - LUGGAGE COMPARTMENT	LR018131 DOOR - LUGGAGE COMPARTMENT Lower / From: AA313069	$1,114.16	1
<40010B	BHA760090	DOOR - LUGGAGE COMPARTMENT	BHA760090 DOOR - LUGGAGE COMPARTMENT Upper / From: AA000001	$2,273.06	1
<41062A	LR018985	BRACKET	LR018985 BRACKET RH, Upper Tailgate / From: AA000001	$33.25	1
<41062A	LR018986	BRACKET	LR018986 BRACKET LH, Upper Tailgate / From: AA000001	$30.59	1
<41062B	LR017590	BRACKET	LR017590 BRACKET Lower Tailgate, RH Side Only / From: AA313069 / To: AA314732	$6.11	1
<41062B	LR020219	BRACKET	LR020219 BRACKET Lower Tailgate, RH Side Only / From: AA314733 / To: AA323359	$6.11	1
<41062B	LR021053	BRACKET	LR021053 BRACKET Lower Tailgate, RH Side Only / From: AA323360	$141.12	1
<42900A	BMB760080	HINGE	BMB760080 HINGE Lower Tailgate / From: AA000001	$70.87	1
<42900B	BMB760100	HINGE	BMB760100 HINGE RH, Upper Tailgate / From: AA000001	$63.29	1
<42900B	BMB760110	HINGE	BMB760110 HINGE LH, Upper Tailgate / From: AA000001	$63.29	1
HB1	AYG500120	BOLT	AYG500120 BOLT Hex Head, Luggage Compartment Hinge, M5, Spacer / From: AA000001	$2.85	2
HB2	AYG500110	BOLT	AYG500110 BOLT Hex Head, M8 X 25MM / From: AA000001	$1.99	2
HN1	BYH500110	NUT - FLANGED	BYH500110 NUT - FLANGED M12, Wedge Base / From: AA000001	$0.65	2
HN2	AYH500260	NUT - FLANGED	AYH500260 NUT - FLANGED Bracket, Lower Tailgate, M8, Pad / From: AA000001	$0.76	6
HS1	AYP500190	SCREW	AYP500190 SCREW Bracket, Lower Tailgate, M8X25, Pad / From: AA000001	$1.12	2
HS2	AYP500210	SCREW	AYP500210 SCREW Luggage Compartment Hinge, M8 X 16MM / From: AA000001	$1.04	2
HS3	BYP100210	SCREW	BYP100210 SCREW Bracket, M5 X 10MM, Torx / From: AA000001	$3.47	2
HS4	LR003808	BOLT - HEX.HEAD IN STOCK	LR003808 BOLT - HEX.HEAD Bracket, Hex Head, Lower Tailgate, M6 X 16MM, Torx / From: AA313069 IN STOCK	$0.63	2
HT1	BYR500030	STUD	BYR500030 STUD liftgate Assist, M8 / From: AA000001	$1.99	2
