Floor Pan - Centre And Rear (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Floor Pan - Centre And Rear (Less Armoured) ((V) FROMAA000001)

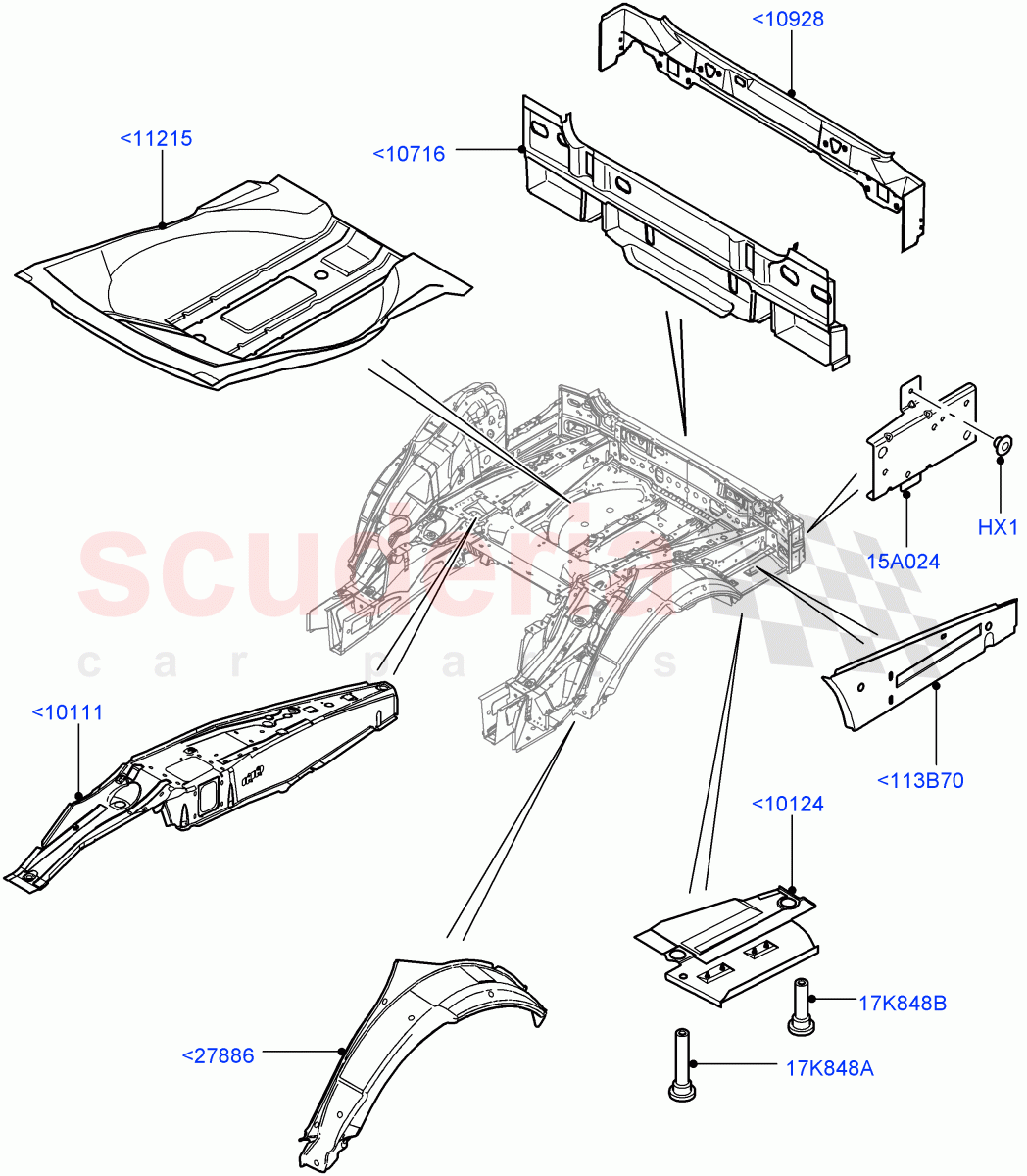

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012895	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012978	MEMBER - SIDE FLOOR	Enquire	To Order
	LR012979	MEMBER - SIDE FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012458	MEMBER - SIDE FLOOR	Enquire	To Order
	LR012457	MEMBER - FLOOR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AQC760250	CROSSMEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012113	PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AGG760010	PAN - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALK760270	WHEELHOUSE - REAR	Enquire	To Order
	ALK760091	WHEELHOUSE - REAR	Enquire	To Order
	LR019651	WHEELHOUSE - REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013311	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AGA760013	STIFFENER - REAR FLOOR	Enquire	To Order
	AGA760052	STIFFENER - REAR FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AGZ760011	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AGZ760021	RETAINER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<113B70	AGA760013	STIFFENER - REAR FLOOR	AGA760013 STIFFENER - REAR FLOOR RH / From: AA000001	-	1	Enquire
<113B70	AGA760052	STIFFENER - REAR FLOOR	AGA760052 STIFFENER - REAR FLOOR LH / From: AA000001	-	1	Enquire
<10111	LR012978	MEMBER - SIDE FLOOR	LR012978 MEMBER - SIDE FLOOR RH, Upper / From: AA000001	-	1	Enquire
<10111	LR012979	MEMBER - SIDE FLOOR	LR012979 MEMBER - SIDE FLOOR LH, Upper / From: AA000001	-	1	Enquire
<10124	LR012458	MEMBER - SIDE FLOOR	LR012458 MEMBER - SIDE FLOOR LH, Lower / From: AA000001	-	1	Enquire
<10124	LR012457	MEMBER - FLOOR SIDE	LR012457 MEMBER - FLOOR SIDE RH, Lower / From: AA000001	-	1	Enquire
<10716	AQC760250	CROSSMEMBER	AQC760250 CROSSMEMBER Rear Floor / From: AA000001	-	1	Enquire
<10928	LR012113	PANEL	LR012113 PANEL Rear / From: AA000001	-	1	Enquire
<11215	AGG760010	PAN - FLOOR	AGG760010 PAN - FLOOR Luggage Compartment / From: AA000001	-	1	Enquire
<27886	ALK760270	WHEELHOUSE - REAR	ALK760270 WHEELHOUSE - REAR RH / From: AA000001 / To: AA314902	-	1	Enquire
<27886	ALK760091	WHEELHOUSE - REAR	ALK760091 WHEELHOUSE - REAR LH / From: AA000001 / To: AA318369	-	1	Enquire
<27886	LR019651	WHEELHOUSE - REAR	LR019651 WHEELHOUSE - REAR LH / From: AA318370	-	1	Enquire
<27886	LR020268	WHEELHOUSE - REAR	LR020268 WHEELHOUSE - REAR RH / From: AA314903	-	1	Enquire
HX1	LR012895	RETAINER - RIVET	LR012895 RETAINER - RIVET Less Blind Spot Information System /	-	2	Enquire
15A024	LR013311	BRACKET - BUMPER MOUNTING	LR013311 BRACKET - BUMPER MOUNTING Less Blind Spot Information System / RH/LH / From: AA000001	-	2	Enquire
17K848A	AGZ760011	RETAINER	AGZ760011 RETAINER Front Bush, Rear Support, Towing / From: AA000001	-	2	Enquire
17K848B	AGZ760021	RETAINER	AGZ760021 RETAINER Rear Bush, Rear Support, Towing / From: AA000001	-	2	Enquire
