Rear Bumper ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

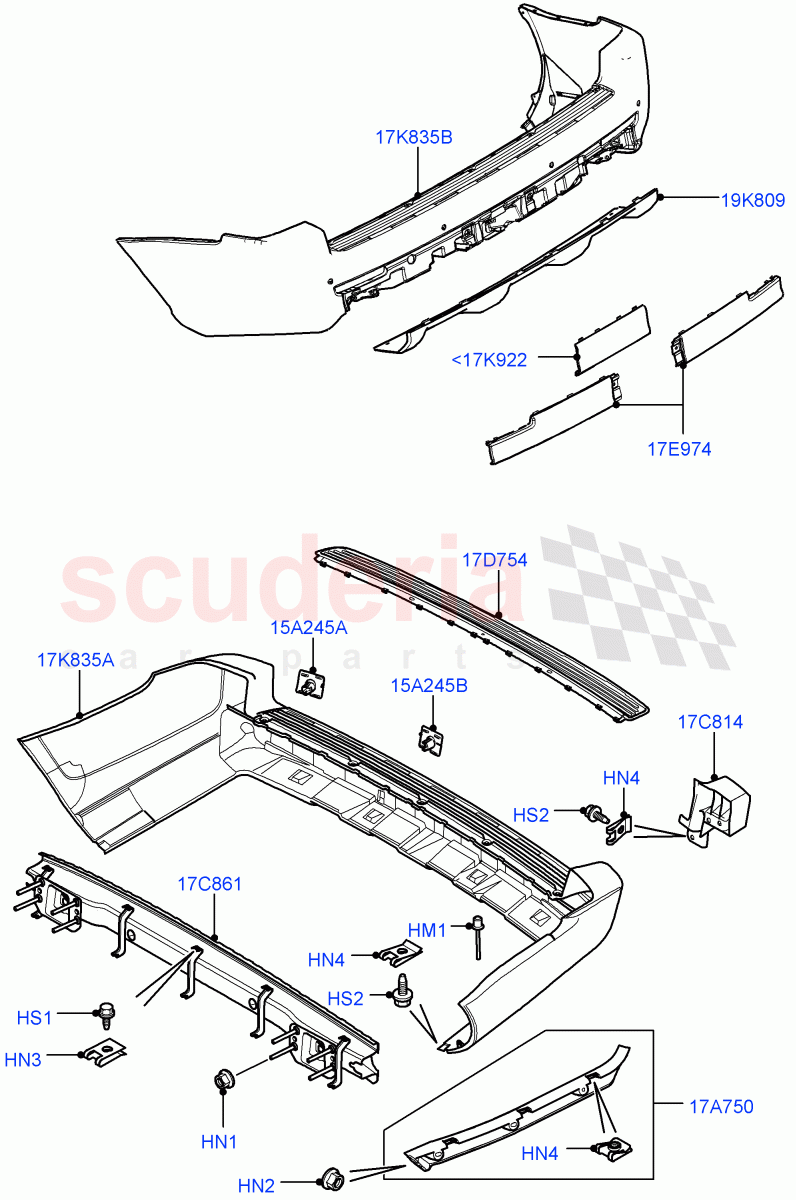

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Rear Bumper ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KYQ100010	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500480	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH106210L	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYH500130	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500160	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500120	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500210	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DQL000020	BRACKET - BUMPER MOUNTING	Enquire	To Order
	DQL000030	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR031734	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR011603	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR011604	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DQE500070	REINFORCEMENT - BUMPER SECURING	Enquire	To Order
	LR021048	REINFORCEMENT - REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014496	INSERT - BUMPER	Enquire	To Order
	LR029581	INSERT - BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023706	COVER ASSY	Enquire	To Order
	LR023707	COVER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026214	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023705	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011451	BEZEL	Enquire	To Order
	LR011882	BEZEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011567	BEZEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017333	BUMPER - REAR	Enquire	To Order
	LR032310	BUMPER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023708	BUMPER - REAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<17K922	LR023705	COVER	LR023705 COVER With Body Kit / Primed, Rear / From: AA313069	-	1	Enquire
HM1	KYQ100010	RIVET	KYQ100010 RIVET Brackets,	-	3	Enquire
HN1	RYH500480	NUT AND WASHER - HEX.	RYH500480 NUT AND WASHER - HEX. M10, Reinforcement / From: AA000001	-	4	Enquire
HN2	DYH106210L	NUT - FLANGED	DYH106210L NUT - FLANGED Attaches to Rear Bumper, M6 / From: AA000001	-	1	Enquire
HN3	EYH500130	NUT - HEX.	EYH500130 NUT - HEX. Nut "U" Spring, Reinforcement / From: AA000001	-	10	Enquire
HN4	DYH500160	NUT - FLANGED	DYH500160 NUT - FLANGED Attaches to Rear Bumper,	-	3	Enquire
HS1	VYP500120	SCREW AND WASHER	VYP500120 SCREW AND WASHER 4.8 X 19MM, Hex Head, Reinforcement, Self Tapping / From: AA000001	-	10	Enquire
HS2	KYP500210	SCREW - SELF-TAPPING	KYP500210 SCREW - SELF-TAPPING 6.3X19.0, Attaches to Rear Bumper, Self Tapping / From: AA000001	-	1	Enquire
15A245A	LR011451	BEZEL	LR011451 BEZEL RH, Primed / From: AA000001	-	1	Enquire
15A245A	LR011882	BEZEL	LR011882 BEZEL LH, Primed / From: AA000001	-	1	Enquire
15A245B	LR011567	BEZEL	LR011567 BEZEL Centre, Primed / From: AA000001	-	2	Enquire
17A750	DQL000020	BRACKET - BUMPER MOUNTING	DQL000020 BRACKET - BUMPER MOUNTING RH, Upper / From: AA000001 / To: BA354999	-	1	Enquire
17A750	DQL000030	BRACKET - BUMPER MOUNTING	DQL000030 BRACKET - BUMPER MOUNTING LH, Upper / From: AA000001 / To: BA354999	-	1	Enquire
17A750	LR031734	BRACKET - BUMPER MOUNTING	LR031734 BRACKET - BUMPER MOUNTING LH, Upper / From: BA355000	-	1	Enquire
17A750	LR031733	BRACKET - BUMPER MOUNTING	LR031733 BRACKET - BUMPER MOUNTING RH, Upper / From: BA355000	-	1	Enquire
17C814	LR011603	BRACKET - BUMPER MOUNTING	LR011603 BRACKET - BUMPER MOUNTING RH, Center Rear / From: AA000001	-	1	Enquire
17C814	LR011604	BRACKET - BUMPER MOUNTING	LR011604 BRACKET - BUMPER MOUNTING LH, Center Rear / From: AA000001	-	1	Enquire
17C861	DQE500070	REINFORCEMENT - BUMPER SECURING	DQE500070 REINFORCEMENT - BUMPER SECURING From: AA000001 / To: AA310413	-	1	Enquire
17C861	LR021048	REINFORCEMENT - REAR BUMPER	LR021048 REINFORCEMENT - REAR BUMPER From: AA310414	-	1	Enquire
17D754	LR014496	INSERT - BUMPER	LR014496 INSERT - BUMPER Brunel Metallic / From: AA000001 / To: BA343050	-	1	Enquire
17D754	LR029581	INSERT - BUMPER	LR029581 INSERT - BUMPER Black / From: BA343051	-	1	Enquire
17E974	LR023706	COVER ASSY	LR023706 COVER ASSY With Body Kit / RH, Primed, Rear / From: AA313069	-	1	Enquire
17E974	LR023707	COVER - REAR	LR023707 COVER - REAR With Body Kit / LH, Primed, Rear / From: AA313069	-	1	Enquire
17K835A	LR017333	BUMPER - REAR	LR017333 BUMPER - REAR Less Body Kit / Primed / From: AA000001 / To: CA360099	-	1	Enquire
17K835A	LR032310	BUMPER - REAR	LR032310 BUMPER - REAR Less Body Kit / Primed / From: CA360100	-	1	Enquire
17K835B	LR023708	BUMPER - REAR	LR023708 BUMPER - REAR With Body Kit / Primed, Rear / From: AA313069	-	1	Enquire
19K809	LR026214	COVER	LR026214 COVER With Body Kit / Lower Rear / From: AA313069	-	1	Enquire
