Fuel Tank & Related Parts (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Fuel Tank & Related Parts (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

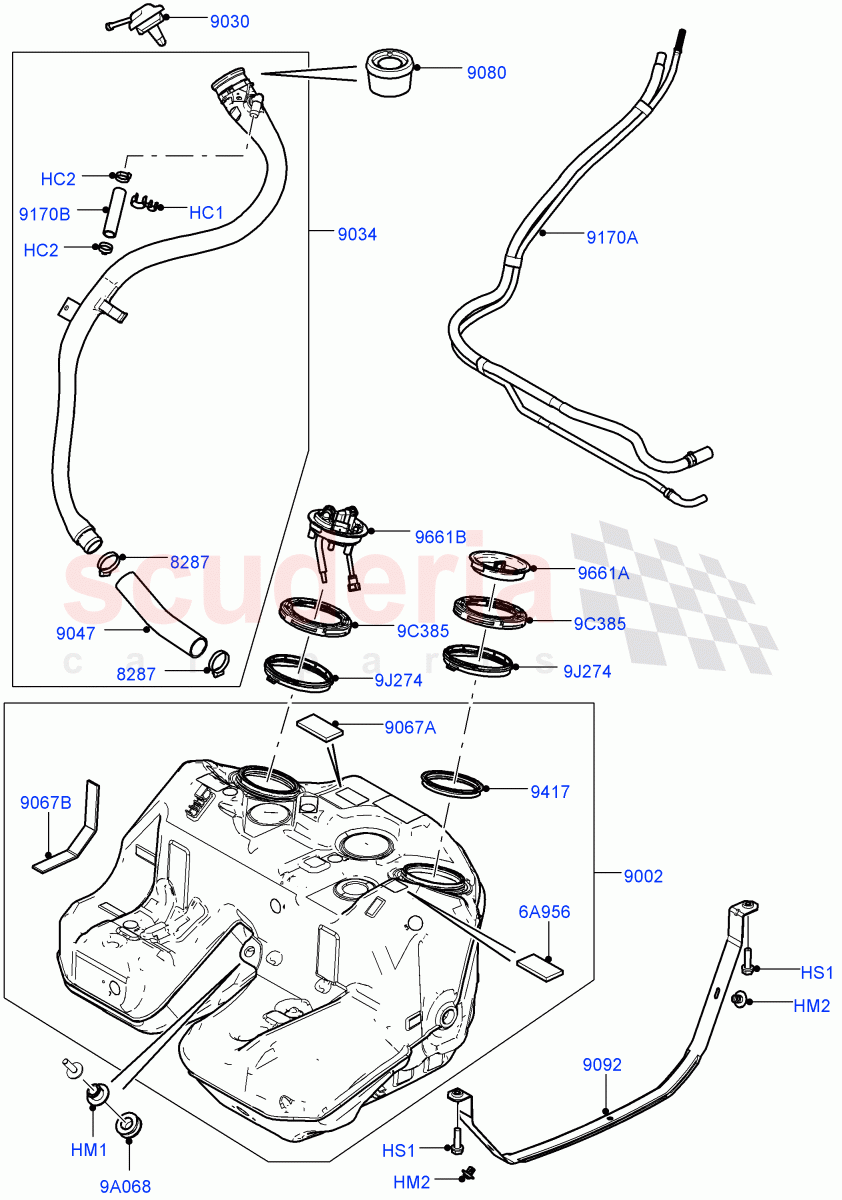

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYC000280	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC000080	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF000020	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ000010	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501170	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9952119	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFE501040	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202123529	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027539	PIPE - FUEL	Enquire	To Order
	LR027550	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJH500050	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WMK000010	GROMMET - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFS500010	STRAP - FUEL TANK	Enquire	To Order
	WFS500020	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WGQ500020	GASKET - FUEL TANK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FWA500230	PAD	Enquire	To Order
	LR035088	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFK000010	STRIP - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFK000020	STRIP - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFP500541	HOSE - VENT	Enquire	To Order
	LR031820	HOSE - FUEL TANK - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027535	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WGC000020	COVER - FUEL SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WGC500081	COVER - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYD000020	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3808	RING - LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR3807	ADAPTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	WYC000280	CLIP - HOSE	WYC000280 CLIP - HOSE Double / From: BA000001	-	1	Enquire
HC2	WYC000080	CLIP - HOSE	WYC000080 CLIP - HOSE 27MM / From: BA000001	-	1	Enquire
HM1	WYF000020	SPACER	WYF000020 SPACER Spacer / From: BA000001	-	1	Enquire
HM2	WYQ000010	RIVET - PLASTIC	WYQ000010 RIVET - PLASTIC Plastic, Rivet Type / From: BA000001	-	4	Enquire
HS1	RYG501170	SCREW AND WASHER	RYG501170 SCREW AND WASHER Hexagonal Head, M8 X 30MM / From: BA000001	-	4	Enquire
6A956	FWA500230	PAD	FWA500230 PAD Fuel Tank / From: BA000001 / To: CA361333	-	2	Enquire
6A956	LR035088	FOAM PAD - ENERGY ABSORBING	LR035088 FOAM PAD - ENERGY ABSORBING Fuel Tank / From: CA361334	-	2	Enquire
9A068	WYD000020	GROMMET	WYD000020 GROMMET Fuel Tank / From: BA000001	-	1	Enquire
9C385	ESR3808	RING - LOCK	ESR3808 RING - LOCK From: BA000001	-	2	Enquire
9J274	ESR3807	ADAPTOR	ESR3807 ADAPTOR Retaining Ring / From: BA000001	-	2	Enquire
8287	9952119	CLAMP	9952119 CLAMP For Fuel Tube / From: BA000001	-	2	Enquire
9002	WFE501040	TANK - FUEL	WFE501040 TANK - FUEL From: BA000001	-	1	Enquire
9030	202123529	CAP - FUEL TANK FILLER	202123529 CAP - FUEL TANK FILLER From: BA000001	-	1	Enquire
9034	LR027539	PIPE - FUEL	LR027539 PIPE - FUEL Fuel Tank Filler Neck - Diesel / From: BA000001	-	1	Enquire
9034	LR027550	TANK - FUEL	LR027550 TANK - FUEL Fuel Tank Filler Neck - All Nozzles / + Russia / From: BA000001	-	1	Enquire
9047	WJH500050	HOSE - FILLER PIPE	WJH500050 HOSE - FILLER PIPE From: BA000001	-	1	Enquire
9067A	WFK000010	STRIP - RUBBER	WFK000010 STRIP - RUBBER Small / From: BA000001	-	4	Enquire
9067B	WFK000020	STRIP - RUBBER	WFK000020 STRIP - RUBBER Large / From: BA000001	-	2	Enquire
9080	WMK000010	GROMMET - FILLER PIPE	WMK000010 GROMMET - FILLER PIPE From: BA000001	-	1	Enquire
9092	WFS500010	STRAP - FUEL TANK	WFS500010 STRAP - FUEL TANK RH / From: BA000001	-	1	Enquire
9092	WFS500020	STRAP - FUEL TANK	WFS500020 STRAP - FUEL TANK LH / From: BA000001	-	1	Enquire
9170A	WFP500541	HOSE - VENT	WFP500541 HOSE - VENT Lower / From: BA000001 / To: BA350362	-	1	Enquire
9170A	LR031820	HOSE - FUEL TANK - VENT	LR031820 HOSE - FUEL TANK - VENT Lower / From: BA350363	-	1	Enquire
9170B	LR027535	HOSE - FUEL	LR027535 HOSE - FUEL Upper / From: BA000001	-	1	Enquire
9417	WGQ500020	GASKET - FUEL TANK COVER	WGQ500020 GASKET - FUEL TANK COVER Fuel Tank / From: BA000001	-	2	Enquire
9661A	WGC000020	COVER - FUEL SENDER	WGC000020 COVER - FUEL SENDER Fuel Tank / From: BA000001	-	1	Enquire
9661B	WGC500081	COVER - FUEL TANK	WGC500081 COVER - FUEL TANK Fuel Tank / From: BA000001	-	1	Enquire
