Fuel Lines (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Fuel Lines (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR023563 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR025324 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR024681 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR023920 PIPE - FUEL Enquire To Order
View All

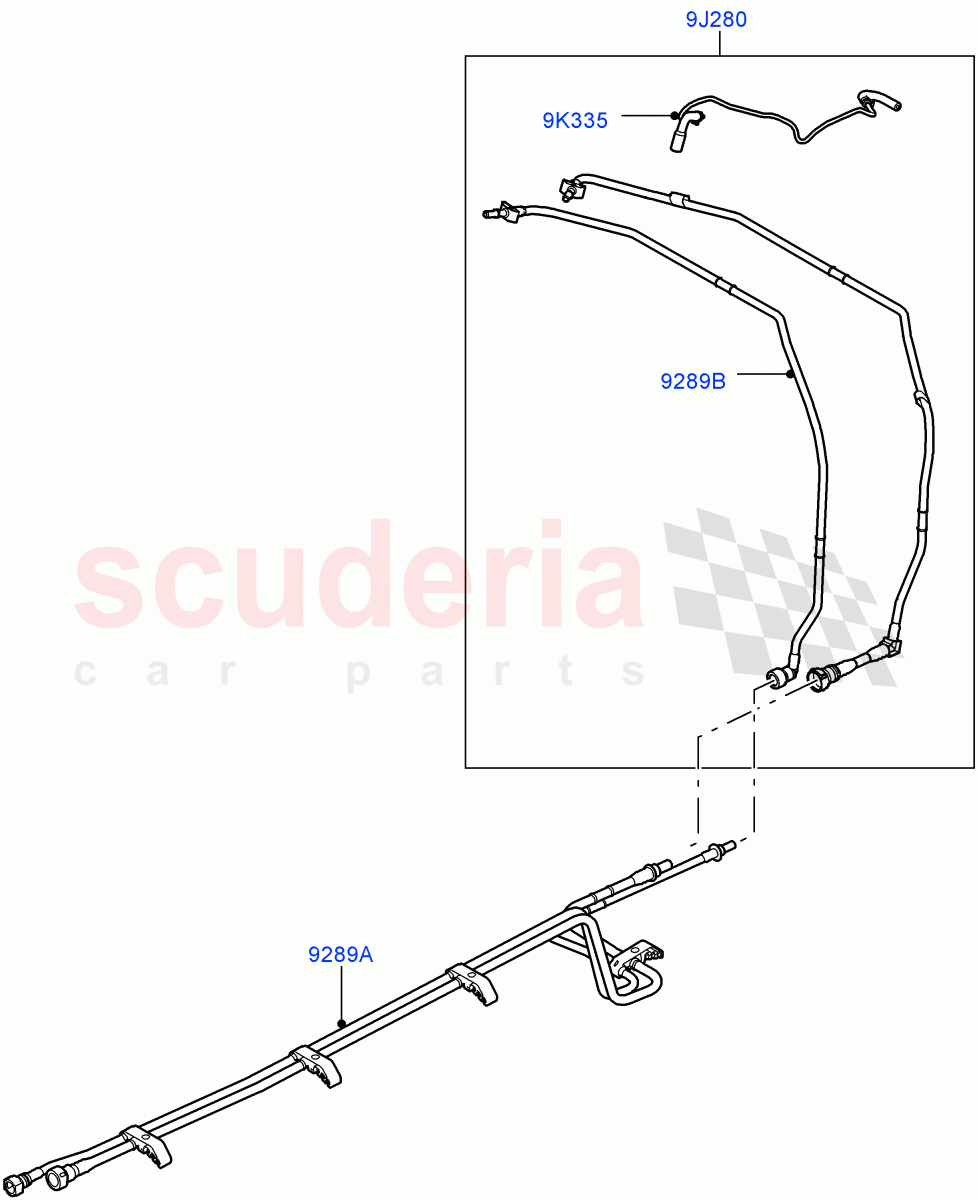

Fuel Lines (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9J280 LR024681
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes, Return / From: BA000001 		- 1 Enquire
9K335 LR023920
PIPE - FUEL
Fuel Tank To Fuel Burning Heater / From: BA000001 		- 1 Enquire
9289A LR023563
PIPE - FUEL
Feed, Under Floor, Vapour Line / From: BA000001 		- 1 Enquire
9289B LR025324
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes / From: BA000001 		- 1 Enquire
