Fuel Lines (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Fuel Lines (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

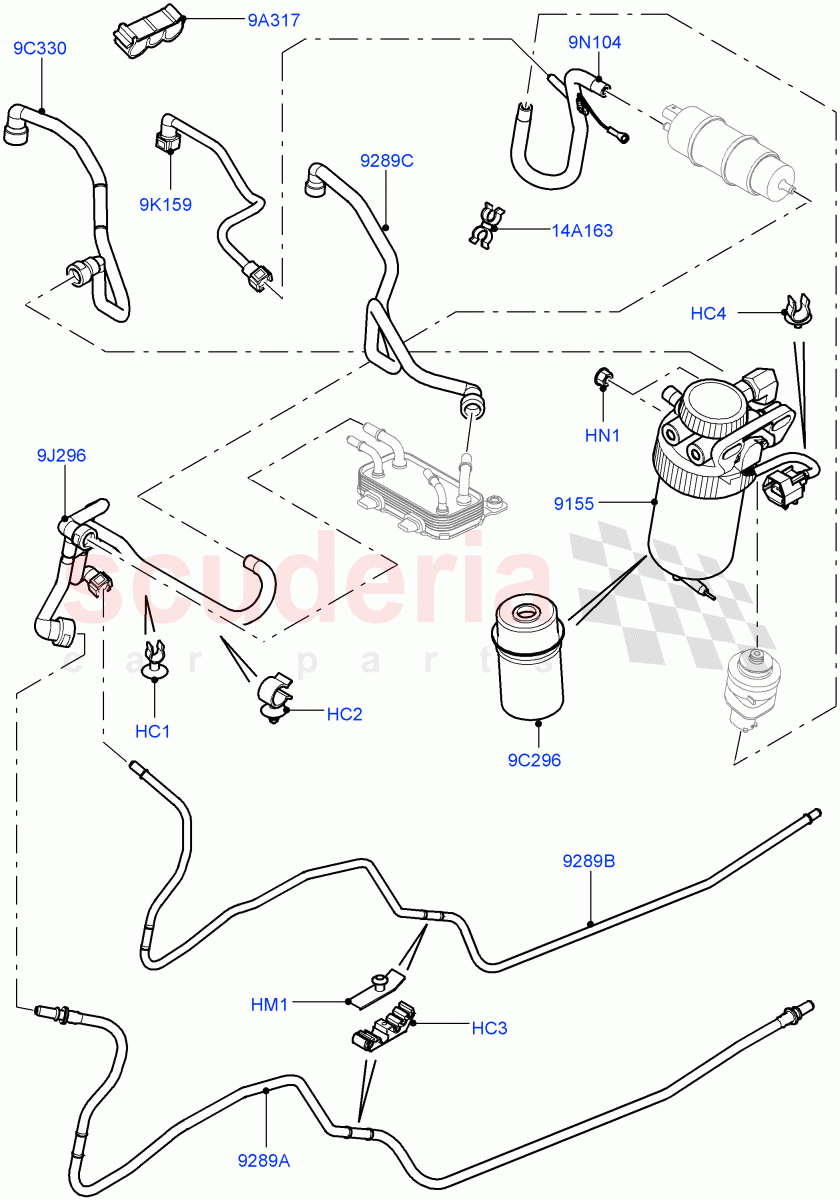

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019161	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019139	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJC000040	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC100900	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WZU000010	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023061	FILTER - FUEL - PRIMARY	Enquire	To Order
	LR029097	FUEL - PRIMARY	Enquire	To Order
	LR072685	FILTER - FUEL - PRIMARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022789	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022778	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023049	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023052	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023042	ELEMENT - FUEL FILTER	Enquire	To Order
	LR072610	ELEMENT - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023054	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023058	TUBE - FUEL RETURN	Enquire	To Order
	LR031822	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023097	PIPE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023062	HOSE - FUEL	Enquire	To Order
	LR031821	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AAU3084	Retainer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR019161	CLIP	LR019161 CLIP 10 x 6.5 / From: BA000001	-	1	Enquire
HC2	LR019139	CLIP	LR019139 CLIP 16 X 0.6MM / From: BA000001	-	1	Enquire
HC3	WJC000040	CLIP - BRAKE PIPE	WJC000040 CLIP - BRAKE PIPE 5 Way / From: BA000001	-	4	Enquire
HC4	WYC100900	CLIP - HOSE	WYC100900 CLIP - HOSE 13MM / From: BA000001	-	3	Enquire
HM1	WZU000010	COVER	WZU000010 COVER Clip, Cover / From: BA000001	-	4	Enquire
HN1	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING M8 / From: BA000001	-	2	Enquire
9A317	LR023052	CLIP	LR023052 CLIP For Fuel Tube / From: BA000001	-	1	Enquire
9C296	LR023042	ELEMENT - FUEL FILTER	LR023042 ELEMENT - FUEL FILTER For Fuel Filter, Includes O-Ring / From: BA000001 / To: BA352846	-	1	Enquire
9C296	LR072610	ELEMENT - FUEL FILTER	LR072610 ELEMENT - FUEL FILTER For Fuel Filter, Includes O-Ring / From: BA352847	-	1	Enquire
9C330	LR023054	TUBE - FUEL FILTER TO FUEL PUMP	LR023054 TUBE - FUEL FILTER TO FUEL PUMP Fuel Filter To High Pressure Pump / From: BA000001	-	1	Enquire
9J296	LR023058	TUBE - FUEL RETURN	LR023058 TUBE - FUEL RETURN From: BA000001 / To: BA352846	-	1	Enquire
9J296	LR031822	TUBE - FUEL RETURN	LR031822 TUBE - FUEL RETURN From: BA352847	-	1	Enquire
9K159	LR023097	PIPE - FUEL RETURN	LR023097 PIPE - FUEL RETURN From: BA000001	-	1	Enquire
9N104	LR023062	HOSE - FUEL	LR023062 HOSE - FUEL From: BA000001 / To: BA350469	-	1	Enquire
9N104	LR031821	TUBE - FUEL FILTER TO FUEL PUMP	LR031821 TUBE - FUEL FILTER TO FUEL PUMP From: BA350470	-	1	Enquire
14A163	AAU3084	Retainer	AAU3084 Retainer From: BA000001	-	3	Enquire
9155	LR023061	FILTER - FUEL - PRIMARY	LR023061 FILTER - FUEL - PRIMARY With Sensor / From: BA000001 / To: BA350469	-	1	Enquire
9155	LR029097	FUEL - PRIMARY	LR029097 FUEL - PRIMARY With Sensor / From: BA350470 / To: BA352846	-	1	Enquire
9155	LR072685	FILTER - FUEL - PRIMARY	LR072685 FILTER - FUEL - PRIMARY With Sensor / From: BA352847	-	1	Enquire
9289A	LR022789	PIPE - FUEL	LR022789 PIPE - FUEL From Fuel Filter To Under Floor Pipes, Return / From: BA000001	-	1	Enquire
9289B	LR022778	TUBE	LR022778 TUBE Feed, To Fuel Filter And Secondary Fuel Pump / From: BA000001	-	1	Enquire
9289C	LR023049	TUBE	LR023049 TUBE From Engine To Fuel Cooler / From: BA000001	-	1	Enquire
