Fuel Cooler Assembly (4.4L Dohc Ditc V8 Diesel) ((V) Fromba000001)

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] - Fuel Cooler Assembly (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP501130 BOLT $1.31 To Order
Photo Part No Description Price (each) Stock
LR000033 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP $2.16 To Order
Photo Part No Description Price (each) Stock
LR023073 BRACKET - FUEL FILTER $55.76 To Order
LR031842 BRACKET - FUEL FILTER $55.76 To Order
Photo Part No Description Price (each) Stock
LR022664 HOSE - FUEL $76.66 To Order
Photo Part No Description Price (each) Stock
LR022666 HOSE $51.83 To Order
Photo Part No Description Price (each) Stock
LR022736 COOLER - FUEL $216.30 To Order
Photo Part No Description Price (each) Stock
PIB500052 COOLER - FUEL $296.40 To Order
LR031827 COOLER - FUEL $203.71 To Order
View All

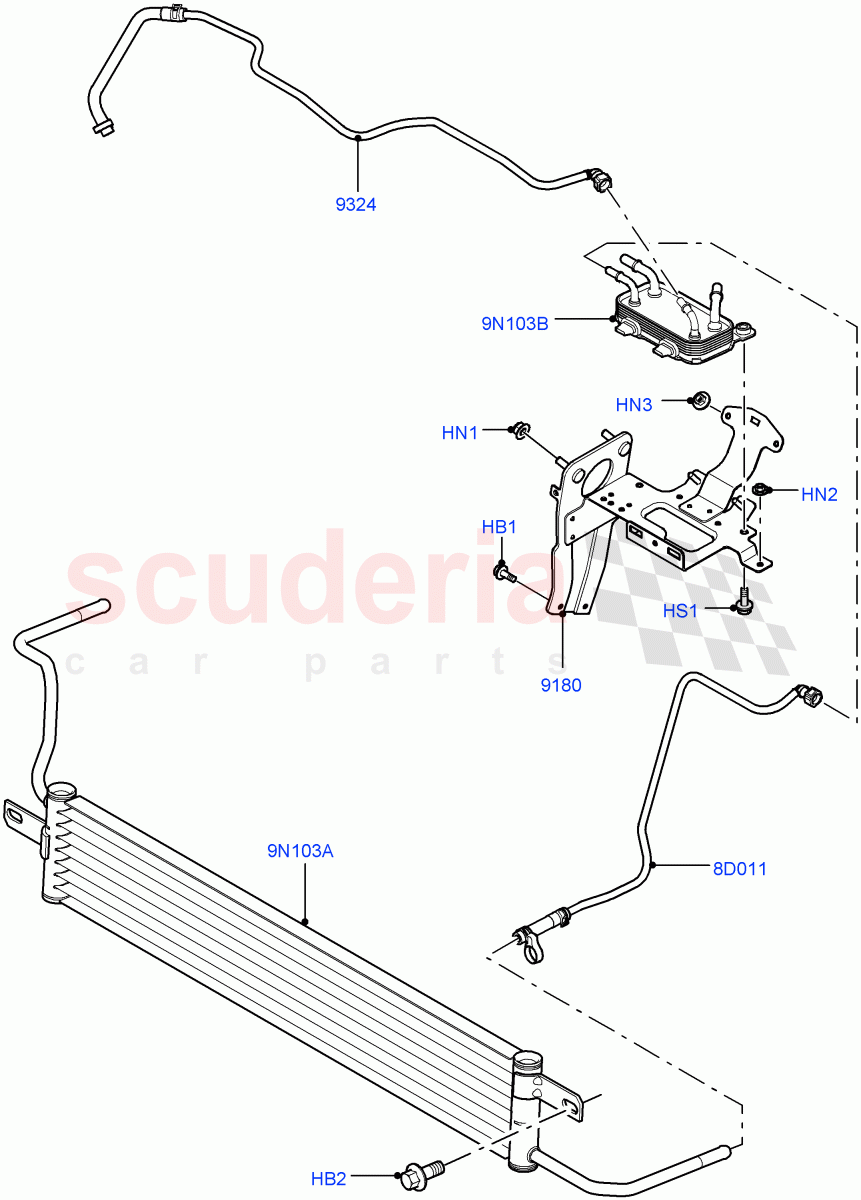

Fuel Cooler Assembly (4.4L DOHC DITC V8 Diesel) ((V) FROMBA000001) of Land Rover Land Rover Range Rover (2010-2012) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP501130
BOLT
M6 x 12MM / From: BA000001 		$1.31 2
HB2 LR000033
SCREW
Hexagonal Head, M6 x 12MM / From: BA000001 		$0.50 2
HN1 FX108046
NUT - LOCKING
M8 / From: BA000001
IN STOCK 		$0.41 2
HN2 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: BA000001
IN STOCK 		$2.97 1
HN3 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: BA000001
IN STOCK 		$1.45 2
HS1 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM / From: BA000001 		$2.16 1
8D011 LR022666
HOSE
Inlet / From: BA000001 		$51.83 1
9N103A LR022736
COOLER - FUEL
Fuel Coolant Cooler / From: BA000001 		$216.30 1
9N103B PIB500052
COOLER - FUEL
Main / From: BA000001 / To: BA352846 		$296.40 1
9N103B LR031827
COOLER - FUEL
Main / From: BA352847 		$203.71 1
9180 LR023073
BRACKET - FUEL FILTER
From: BA000001 / To: BA352846 		$55.76 1
9180 LR031842
BRACKET - FUEL FILTER
From: BA352847 		$55.76 1
9324 LR022664
HOSE - FUEL
Outlet / From: BA000001 		$76.66 1
