Rear Seat Belts (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Rear Seat Belts (Less Armoured) ((V) FROMAA000001)

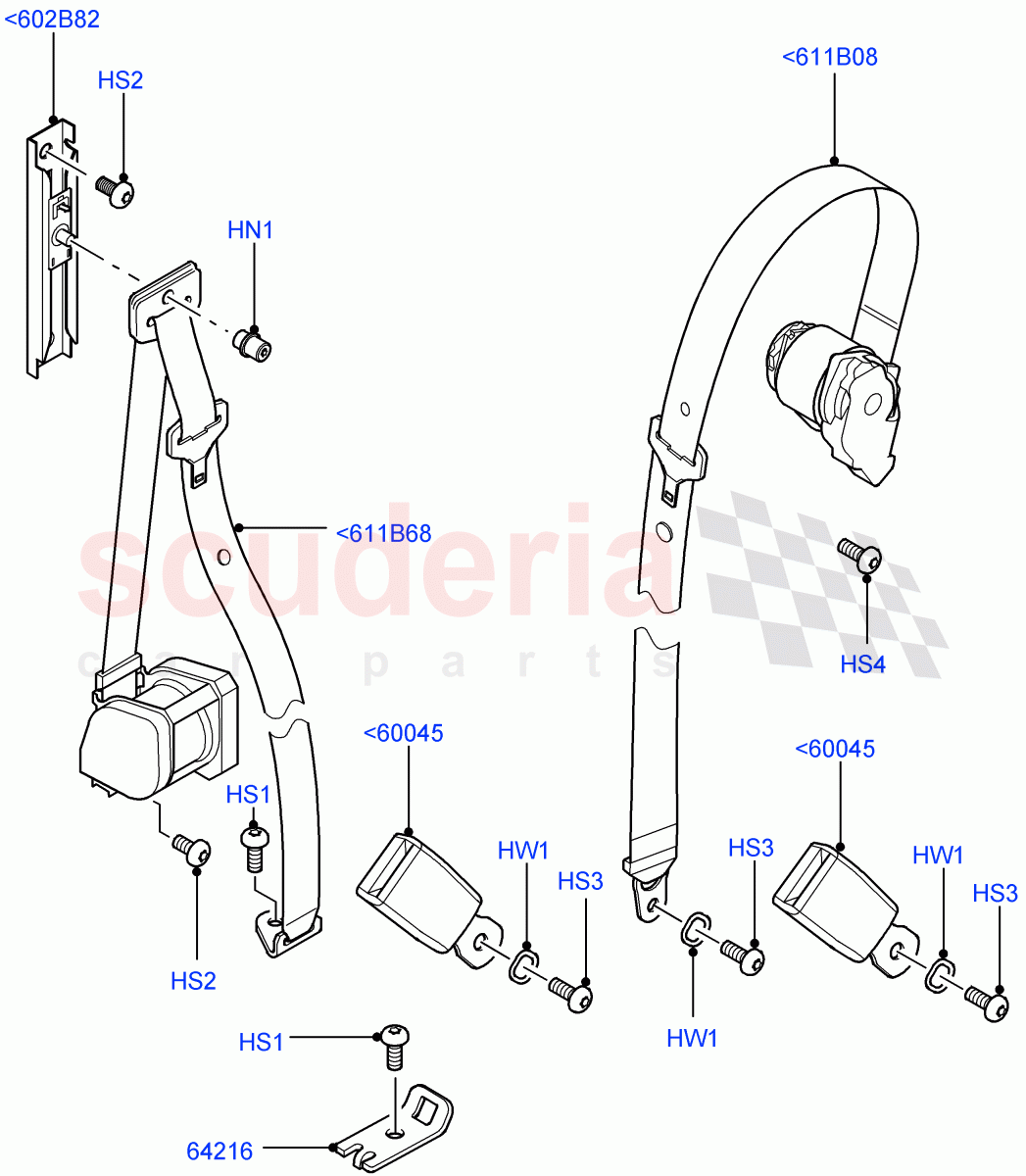

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EYH500140	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP500230	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP500210	SCREW	Enquire	To Order
	EYP500210	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP000190	SCREW	Enquire	To Order
	HYP000190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP000180	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYF000020	WASHER	Enquire	To Order
	HYF000020	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HTM000050	BRACKET - CHILD SEAT MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010355	BUCKLE - SEAT BELT	Enquire	To Order
	LR010360	BUCKLE - SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011172	ADJUSTER - SEAT WITH HEIGHT ADJUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017788	BELT AND BUCKLE ASSY	Enquire	To Order
	LR017789	SEAT BELT AND BUCKLE	Enquire	To Order
	LR017790	SEAT BELT AND BUCKLE	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010943	SEAT BELT ASSY	Enquire	To Order
	LR010944	SEAT BELT ASSY UN3268	Enquire	To Order
	LR010945	SEAT BELT	Enquire	To Order

...and 9 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<602B82	LR011172	ADJUSTER - SEAT WITH HEIGHT ADJUST	LR011172 ADJUSTER - SEAT WITH HEIGHT ADJUST From: AA000001	-	2	Enquire
<611B08	LR017788	BELT AND BUCKLE ASSY	LR017788 BELT AND BUCKLE ASSY I/P Facia Contrast - Arabica/Ivory, With Power Rear Seat Recliner, With Seat Belt Labelling - ROW / Centre / From: AA313069	-	1	Enquire
<611B08	LR017789	SEAT BELT AND BUCKLE	LR017789 SEAT BELT AND BUCKLE I/P Facia Contrast-Navy/Parchment, With Power Rear Seat Recliner, With Seat Belt Labelling - ROW / Centre / From: AA313069	-	1	Enquire
<611B08	LR017790	SEAT BELT AND BUCKLE	LR017790 SEAT BELT AND BUCKLE I/P Facia Contrast - Jet/Tan, With Power Rear Seat Recliner, With Seat Belt Labelling - ROW / Centre / From: AA313069	-	1	Enquire
<611B08	LR017791	BELT AND BUCKLE ASSY	LR017791 BELT AND BUCKLE ASSY I/P Facia Contrast - Arabica/Ivory, With Power Rear Seat Recliner, With Seat Belt Labelling - NAS / Centre / From: AA313069	-	1	Enquire
<611B08	LR017792	SEAT BELT AND BUCKLE	LR017792 SEAT BELT AND BUCKLE I/P Facia Contrast - Navy/Ivory, With Power Rear Seat Recliner, With Seat Belt Labelling - NAS / Centre / From: AA313069	-	1	Enquire
<611B08	LR017793	SEAT BELT AND BUCKLE	LR017793 SEAT BELT AND BUCKLE I/P Facia Contrast-Jet/Kingfisher, With Power Rear Seat Recliner, With Seat Belt Labelling - NAS / Centre / From: AA313069	-	1	Enquire
<611B08	LR011959	SEAT BELT AND BUCKLE	LR011959 SEAT BELT AND BUCKLE I/P Facia Contrast - Arabica/Ivory, Less Rear Seat Recliner, With Seat Belt Labelling - ROW / Centre / From: AA000001 / To: AA313068	-	1	Enquire
<611B08	LR018825	SEAT BELT AND BUCKLE	LR018825 SEAT BELT AND BUCKLE I/P Facia Contrast-Navy/Parchment, Less Rear Seat Recliner, With Seat Belt Labelling - ROW / Centre / From: AA000001 / To: AA313068	-	1	Enquire
<611B08	LR018826	SEAT BELT AND BUCKLE	LR018826 SEAT BELT AND BUCKLE I/P Facia Contrast - Jet/Storm, Less Rear Seat Recliner, With Seat Belt Labelling - ROW / Centre / From: AA000001 / To: AA313068	-	1	Enquire
<611B08	LR011958	SEAT BELT AND BUCKLE	LR011958 SEAT BELT AND BUCKLE I/P Facia Contrast - Arabica/Ivory, Less Rear Seat Recliner, With Seat Belt Labelling - NAS / Centre / From: AA000001 / To: AA313068	-	1	Enquire
<611B08	LR018827	Seat Belt	LR018827 Seat Belt I/P Facia Contrast-Navy/Parchment, Less Rear Seat Recliner, With Seat Belt Labelling - NAS / Centre / From: AA000001 / To: AA313068	-	1	Enquire
<611B08	LR018828	SEAT BELT AND BUCKLE	LR018828 SEAT BELT AND BUCKLE I/P Facia Contrast - Jet/Sand, Less Rear Seat Recliner, With Seat Belt Labelling - NAS / Centre / From: AA000001 / To: AA313068	-	1	Enquire
<611B08	LR019612	SEAT BELT AND BUCKLE	LR019612 SEAT BELT AND BUCKLE I/P Facia Contrast - Arabica/Ivory, Less Rear Seat Recliner, With Seat Belt Labelling - ROW / Centre / From: AA313069	-	1	Enquire
<611B08	LR019613	SEAT BELT AND BUCKLE	LR019613 SEAT BELT AND BUCKLE I/P Facia Contrast - Navy/Ivory, With Seat Belt Labelling - ROW / Centre / From: AA313069	-	1	Enquire
<611B08	LR019614	SEAT BELT AND BUCKLE	LR019614 SEAT BELT AND BUCKLE I/P Facia Contrast - Jet/Ivory, With Seat Belt Labelling - ROW / Centre / From: AA313069	-	1	Enquire
<611B08	LR019615	SEAT BELT AND BUCKLE	LR019615 SEAT BELT AND BUCKLE I/P Facia Contrast - Arabica/Ivory, Less Rear Seat Recliner, With Seat Belt Labelling - NAS / Centre / From: AA313069	-	1	Enquire
<611B08	LR019616	SEAT BELT AND BUCKLE	LR019616 SEAT BELT AND BUCKLE I/P Facia Contrast - Navy/Ivory, With Seat Belt Labelling - NAS / Centre / From: AA313069	-	1	Enquire
<611B08	LR019617	SEAT BELT AND BUCKLE	LR019617 SEAT BELT AND BUCKLE I/P Facia Contrast - Jet/Ivory, With Seat Belt Labelling - NAS / Centre / From: AA313069	-	1	Enquire
<611B68	LR010943	SEAT BELT ASSY	LR010943 SEAT BELT ASSY I/P Facia Contrast - Dark Saddle, With Seat Belt Labelling - ROW / RH / From: AA000001	-	1	Enquire
<611B68	LR010944	SEAT BELT ASSY UN3268	LR010944 SEAT BELT ASSY UN3268 I/P Facia Contrast - Navy/Ivory, With Seat Belt Labelling - ROW / RH / From: AA000001	-	1	Enquire
<611B68	LR010945	SEAT BELT	LR010945 SEAT BELT I/P Facia Contrast - Jet/Tan, With Seat Belt Labelling - ROW / RH / From: AA000001	-	1	Enquire
<611B68	LR010946	SEAT BELT ASSY	LR010946 SEAT BELT ASSY I/P Facia Contrast - Arabica/Ivory, With Seat Belt Labelling - NAS / RH / From: AA000001	-	1	Enquire
<611B68	LR010947	SEAT BELT ASSY	LR010947 SEAT BELT ASSY I/P Facia Contrast-Navy/Parchment, With Seat Belt Labelling - NAS / RH / From: AA000001	-	1	Enquire
<611B68	LR010948	SEAT BELT	LR010948 SEAT BELT I/P Facia Contrast - Jet/Tan, With Seat Belt Labelling - NAS / RH / From: AA000001	-	1	Enquire
<611B68	LR010949	SEAT BELT ASSY	LR010949 SEAT BELT ASSY I/P Facia Contrast - Arabica/Ivory, With Seat Belt Labelling - ROW / LH / From: AA000001	-	1	Enquire
<611B68	LR010950	SEAT BELT ASSY	LR010950 SEAT BELT ASSY I/P Facia Contrast - Navy/Ivory, With Seat Belt Labelling - ROW / LH / From: AA000001	-	1	Enquire
<611B68	LR010951	SEAT BELT	LR010951 SEAT BELT I/P Facia Contrast - Jet/Tan, With Seat Belt Labelling - ROW / LH / From: AA000001	-	1	Enquire
<611B68	LR010952	SEAT BELT ASSY	LR010952 SEAT BELT ASSY I/P Facia Contrast - Arabica/Ivory, With Seat Belt Labelling - NAS / LH / From: AA000001	-	1	Enquire
<611B68	LR010953	SEAT BELT ASSY	LR010953 SEAT BELT ASSY I/P Facia Contrast-Navy/Parchment, With Seat Belt Labelling - NAS / LH / From: AA000001	-	1	Enquire
<611B68	LR010954	SEAT BELT	LR010954 SEAT BELT I/P Facia Contrast - Jet/Tan, With Seat Belt Labelling - NAS / LH / From: AA000001	-	1	Enquire
<60045	LR010355	BUCKLE - SEAT BELT	LR010355 BUCKLE - SEAT BELT Outer / From: AA000001	-	2	Enquire
<60045	LR010360	BUCKLE - SEAT BELT	LR010360 BUCKLE - SEAT BELT Centre / From: AA000001	-	1	Enquire
HN1	EYH500140	NUT - FLANGED	EYH500140 NUT - FLANGED M10, Seat Belt Height Adjuster / From: AA000001	-	4	Enquire
HS1	EYP500230	SCREW	EYP500230 SCREW M10 x 26MM / From: AA000001	-	2	Enquire
HS2	EYP500210	SCREW	EYP500210 SCREW M10 X 20MM, Seat Belt Anchor, Seat Belt Height Adjuster / From: AA000001	-	2	Enquire
HS2	EYP500210	SCREW	EYP500210 SCREW M10 X 20MM, Seat Belt Height Adjuster / From: AA000001	-	4	Enquire
HS3	HYP000190	SCREW	HYP000190 SCREW 7/16-20 UNF, Centre, Only For Seat Belt / From: AA000001	-	1	Enquire
HS3	HYP000190	SCREW	HYP000190 SCREW 7/16-20 UNF, Bolt to Attach Seat Belt Buckle To Cushion Frame, Rear / From: AA000001	-	3	Enquire
HS4	HYP000180	SCREW	HYP000180 SCREW 7/16" UNF, Seat Belt Anchor / From: AA000001	-	1	Enquire
HW1	HYF000020	WASHER	HYF000020 WASHER Centre, Only For Seat Belt / From: AA000001	-	1	Enquire
HW1	HYF000020	WASHER	HYF000020 WASHER Bolt to Attach Seat Belt Buckle To Cushion Frame, Rear / From: AA000001	-	3	Enquire
64216	HTM000050	BRACKET - CHILD SEAT MOUNTING	HTM000050 BRACKET - CHILD SEAT MOUNTING Child Seat Only / From: AA000001	-	1	Enquire
