Instrument Panel (Internal Components) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Instrument Panel (Internal Components) ((V) FROMAA000001)

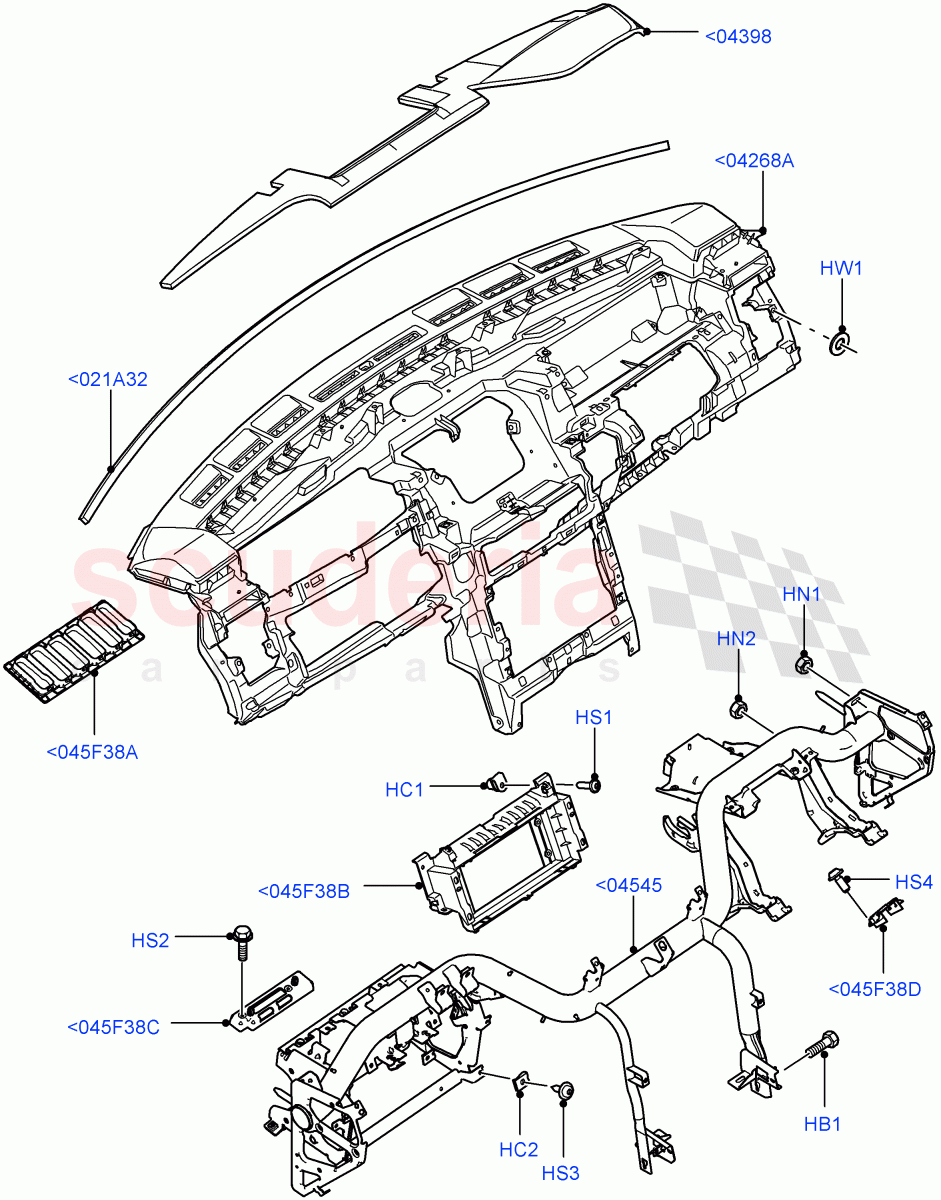

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FYG500040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYC500070	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IPN500220	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYH500030	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020809	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500450	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EHV500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP000280	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP000240	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYF000010	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ETD500160	INSULATOR - DASH PANEL	Enquire	To Order
	ETD500170	INSULATOR - DASH PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011510	REINFORCEMENT	Enquire	To Order
	LR011511	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022908	SEAL - WINDSCREEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011506	MOULDING - INSTRUMENT PANEL	Enquire	To Order
	LR011507	MOULDING - INSTRUMENT PANEL	Enquire	To Order
	LR030343	MOULDING - INSTRUMENT PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FGA500090	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011525	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011550	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011551	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A32	LR022908	SEAL - WINDSCREEN	LR022908 SEAL - WINDSCREEN From: BA000001	-	1	Enquire
<045F38A	FGA500090	BRACKET	FGA500090 BRACKET Inner, Reinforcement, VENT / From: AA000001	-	1	Enquire
<045F38B	LR011525	BRACKET	LR011525 BRACKET With Navigation System / Support / From: AA000001	-	1	Enquire
<045F38C	LR011550	BRACKET	LR011550 BRACKET Audio Head Unit / From: AA000001	-	1	Enquire
<045F38D	LR011551	BRACKET	LR011551 BRACKET From: AA000001	-	1	Enquire
<04268A	LR011506	MOULDING - INSTRUMENT PANEL	LR011506 MOULDING - INSTRUMENT PANEL RHD / Black, Instrument Panel / From: AA000001 / To: BA345199	-	1	Enquire
<04268A	LR011507	MOULDING - INSTRUMENT PANEL	LR011507 MOULDING - INSTRUMENT PANEL LHD / Black, Instrument Panel / From: AA000001 / To: BA345199	-	1	Enquire
<04268A	LR030343	MOULDING - INSTRUMENT PANEL	LR030343 MOULDING - INSTRUMENT PANEL RHD / Black, Instrument Panel / From: BA345200	-	1	Enquire
<04268A	LR030344	MOULDING - INSTRUMENT PANEL	LR030344 MOULDING - INSTRUMENT PANEL LHD / Black, Instrument Panel / From: BA345200	-	1	Enquire
<04398	ETD500160	INSULATOR - DASH PANEL	ETD500160 INSULATOR - DASH PANEL RHD / Upper / From: AA000001	-	1	Enquire
<04398	ETD500170	INSULATOR - DASH PANEL	ETD500170 INSULATOR - DASH PANEL LHD / Upper / From: AA000001	-	1	Enquire
<04545	LR011510	REINFORCEMENT	LR011510 REINFORCEMENT RHD / From: AA000001	-	1	Enquire
<04545	LR011511	REINFORCEMENT	LR011511 REINFORCEMENT LHD / From: AA000001	-	1	Enquire
HB1	FYG500040	SCREW	FYG500040 SCREW M8 X 16MM / From: AA000001	-	2	Enquire
HC1	FYC500070	CLIP	FYC500070 CLIP Instrument panel / From: AA000001	-	1	Enquire
HC2	IPN500220	CLIP - RETAINING	IPN500220 CLIP - RETAINING 4.2 / From: AA000001	-	4	Enquire
HN1	TYH500030	NUT	TYH500030 NUT M8 / From: AA000001	-	4	Enquire
HN2	LR020809	NUT - HEX. - FLANGED	LR020809 NUT - HEX. - FLANGED M4 / From: AA000001	-	1	Enquire
HS1	FYP500450	SCREW	FYP500450 SCREW M5 x 20MM, Torx / From: AA000001	-	1	Enquire
HS2	EHV500030	SCREW	EHV500030 SCREW M4 x 10MM, Torx / From: AA000001	-	2	Enquire
HS3	EYP000280	SCREW - SELF-TAPPING	EYP000280 SCREW - SELF-TAPPING Self Tapping, Torx / From: AA000001	-	1	Enquire
HS4	FYP000240	SCREW	FYP000240 SCREW M4 x 10MM / From: AA000001	-	4	Enquire
HW1	AYF000010	WASHER	AYF000010 WASHER M8 x 18MM, Washer - Flat Nylon / From: AA000001	-	1	Enquire
