Name: Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Console - Floor (For Stowage Boxes And Lids) ((V) FROMAA000001)

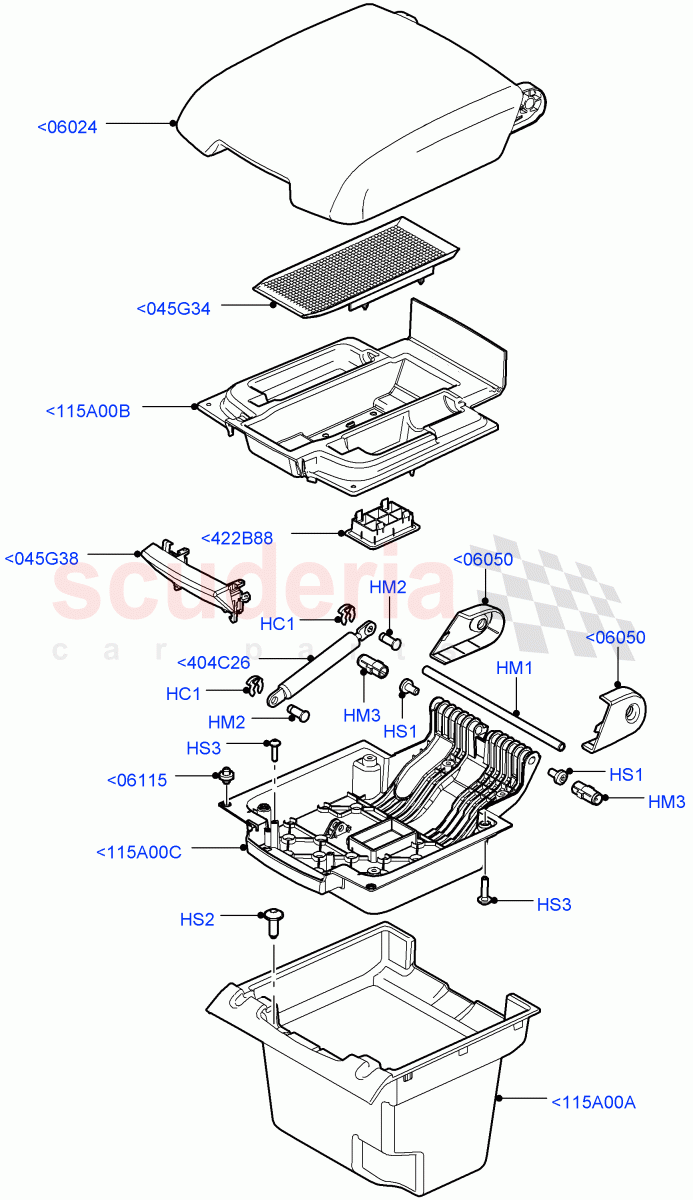

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FYV000010	CIRCLIP	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	FWB500010	PIN - HINGE	$3.46	To Order

Photo	Part No	Description	Price (each)	Stock
	FYT500050	PIN	$2.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FZV000020	SLEEVE	$21.50	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500480	SCREW AND WASHER	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FYP000240	SCREW	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP000250	SCREW	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013474	LID - STORAGE COMPARTMENT	$368.38	To Order
	LR012813	LID - STORAGE COMPARTMENT	$387.83	To Order
	LR013475	LID - STORAGE COMPARTMENT	$368.38	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FJV500580MVM	HINGE - STOWAGE BOX	$8.60	To Order
	FJV500590MVM	HINGE - STOWAGE BOX	$20.73	To Order

Photo	Part No	Description	Price (each)	Stock
	FZU000011	BUMP STOP	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FIF500110	MAT	$9.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016429	LATCH	$91.83	To Order
	LR022047	LATCH	$294.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FFZ500130	DAMPER	$27.72	To Order

Photo	Part No	Description	Price (each)	Stock
	FHY500080PVA	PLUG - BLANKING	$11.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013190	COMPARTMENT - STOWAGE	$984.82	To Order
	LR013191	COMPARTMENT - STOWAGE	$395.33	To Order

Photo	Part No	Description	Price (each)	Stock
	FJJ500150PVA	COMPARTMENT - STOWAGE	$129.29	To Order

Photo	Part No	Description	Price (each)	Stock
	FJJ500140PVA	COMPARTMENT - STOWAGE	$67.74	To Order
	LR025822	BOX - STOWAGE	$58.65	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<045G34	FIF500110	MAT	FIF500110 MAT From: AA000001	$9.45	1
<045G38	LR016429	LATCH	LR016429 LATCH From: AA000001 / To: AA311992	$91.83	1
<045G38	LR022047	LATCH	LR022047 LATCH From: AA311993	$294.43	1
<115A00A	LR013190	COMPARTMENT - STOWAGE	LR013190 COMPARTMENT - STOWAGE With Front Comfort Air Con (IHKA) / Jet / From: AA000001	$984.82	1
<115A00A	LR013191	COMPARTMENT - STOWAGE	LR013191 COMPARTMENT - STOWAGE Premium Air Conditioning-Front/Rear / Jet / From: AA000001	$395.33	1
<115A00B	FJJ500150PVA	COMPARTMENT - STOWAGE	FJJ500150PVA COMPARTMENT - STOWAGE Jet, Oddments Tray, Upper / From: AA000001	$129.29	1
<115A00C	FJJ500140PVA	COMPARTMENT - STOWAGE	FJJ500140PVA COMPARTMENT - STOWAGE Jet, Lower, Oddments Tray / From: AA000001 / To: AA332271	$67.74	1
<115A00C	LR025822	BOX - STOWAGE	LR025822 BOX - STOWAGE Jet, Lower, Oddments Tray / From: AA332272	$58.65	1
<404C26	FFZ500130	DAMPER	FFZ500130 DAMPER Lid / From: AA000001	$27.72	1
<422B88	FHY500080PVA	PLUG - BLANKING	FHY500080PVA PLUG - BLANKING From: AA000001	$11.63	1
<06024	LR013474	LID - STORAGE COMPARTMENT	LR013474 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Storm / Outer / From: AA000001 / To: BA347483	$368.38	1
<06024	LR012813	LID - STORAGE COMPARTMENT	LR012813 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Ivory, Jet/Ivory Interior / Outer / From: AA000001 / To: BA338873	$387.83	1
<06024	LR013475	LID - STORAGE COMPARTMENT	LR013475 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Pimento / Outer / From: AA000001 / To: BA338873	$368.38	1
<06024	LR013476	LID - STORAGE COMPARTMENT	LR013476 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Sand / Outer / From: AA000001 / To: BA344531	$368.38	1
<06024	LR013477	LID - STORAGE COMPARTMENT	LR013477 LID - STORAGE COMPARTMENT Ext Navy/Parchment Interior, I/P Facia Contrast-Navy/Parchment / Outer / From: AA000001 / To: BA344531	$369.34	1
<06024	LR016895	LID - STORAGE COMPARTMENT	LR016895 LID - STORAGE COMPARTMENT Arabica/Ivory/Ivory, I/P Facia Contrast - Arabica/Ivory / Outer / From: AA000001 / To: BA338873	$368.38	1
<06024	LR016896	LID - STORAGE COMPARTMENT	LR016896 LID - STORAGE COMPARTMENT I/P Facia Contrast-Navy/Parchment, Navy/Parch/Parch / Outer / From: AA000001 / To: BA338873	$368.38	1
<06024	LR017927	LID - STORAGE COMPARTMENT	LR017927 LID - STORAGE COMPARTMENT I/P Facia Contrast-Jet/Kingfisher / Outer / From: AA000001 / To: BA353998	$332.39	1
<06024	LR017928	LID - STORAGE COMPARTMENT	LR017928 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Tan / Outer / From: AA000001 / To: BA338873	$332.39	1
<06024	LR027757	LID - STORAGE COMPARTMENT	LR027757 LID - STORAGE COMPARTMENT Arabica/Ivory/Ivory, I/P Facia Contrast - Arabica/Ivory / Outer / From: BA338874	$439.66	1
<06024	LR027759	LID - STORAGE COMPARTMENT	LR027759 LID - STORAGE COMPARTMENT I/P Facia Contrast-Jet/Kingfisher / Outer / From: BA353999	$439.66	1
<06024	LR027762	LID - STORAGE COMPARTMENT	LR027762 LID - STORAGE COMPARTMENT I/P Facia Contrast-Navy/Parchment, Navy/Parchment Interior / Outer / From: BA338874	$439.66	1
<06024	LR027764	LID - STORAGE COMPARTMENT	LR027764 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Storm / Outer / From: BA347484	$439.66	1
<06024	LR027765	LID - STORAGE COMPARTMENT	LR027765 LID - STORAGE COMPARTMENT I/P Facia Contrast - Navy/Ivory, Navy/Ivory / Outer / From: BA338874	$439.66	1
<06024	LR027766	LID - STORAGE COMPARTMENT	LR027766 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Ivory, Jet/Jet Interior / Outer / From: BA338874	$573.79	1
<06024	LR027767	LID - STORAGE COMPARTMENT	LR027767 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Tan / Outer / From: BA338874	$439.66	1
<06024	LR027768	LID - STORAGE COMPARTMENT	LR027768 LID - STORAGE COMPARTMENT I/P Facia Contrast - Jet/Sand / Outer / From: BA344532	$573.79	1
<06024	LR027769	LID - STORAGE COMPARTMENT	LR027769 LID - STORAGE COMPARTMENT Ext Navy/Parchment Interior, I/P Facia Contrast-Navy/Parchment / Outer / From: BA344532	$439.66	1
<06050	FJV500580MVM	HINGE - STOWAGE BOX	FJV500580MVM HINGE - STOWAGE BOX RH, Noble / From: AA000001	$8.60	1
<06050	FJV500590MVM	HINGE - STOWAGE BOX	FJV500590MVM HINGE - STOWAGE BOX LH, Noble / From: AA000001	$20.73	1
<06115	FZU000011	BUMP STOP	FZU000011 BUMP STOP From: AA000001	$7.52	2
HC1	FYV000010	CIRCLIP	FYV000010 CIRCLIP Circlip, Damper / From: AA000001	$1.35	4
HM1	FWB500010	PIN - HINGE	FWB500010 PIN - HINGE Hinge, M6 X 189MM, Pin / From: AA000001	$3.46	1
HM2	FYT500050	PIN IN STOCK	FYT500050 PIN 6 x 16MM, Damper, Lid, Pin / From: AA000001 IN STOCK	$2.54	4
HM3	FZV000020	SLEEVE	FZV000020 SLEEVE	$21.50	2
HS1	FYP500480	SCREW AND WASHER IN STOCK	FYP500480 SCREW AND WASHER M6 x 12MM, Screw And Washer / From: AA000001 IN STOCK	$0.63	2
HS2	FYP000240	SCREW	FYP000240 SCREW M4 x 10MM / From: AA000001	$1.39	2
HS3	FYP000250	SCREW	FYP000250 SCREW 3 x 12MM, Torx / From: AA000001	$1.39	4
