Name: Console - Overhead (Less Armoured) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Console - Overhead (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Console - Overhead (Less Armoured) ((V) FROMAA000001)

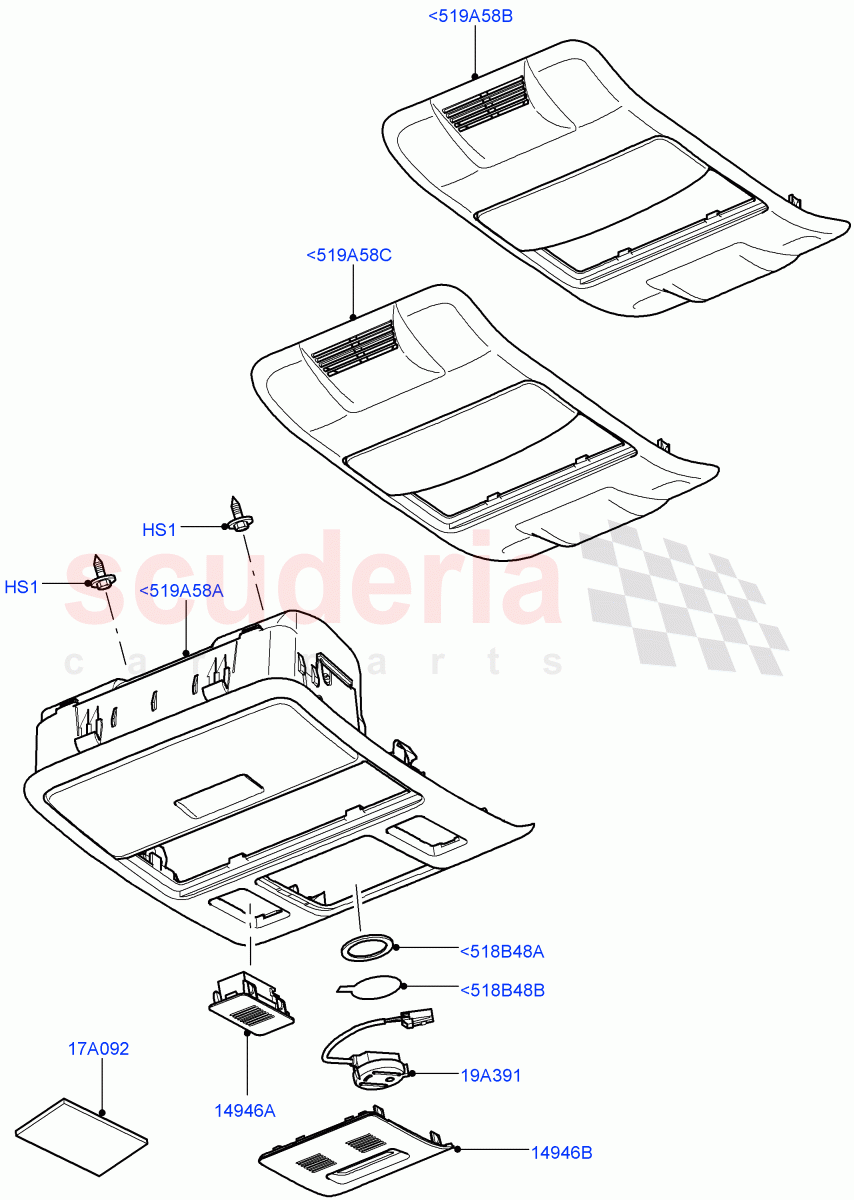

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FYP500700	SCREW AND WASHER	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	EDV000053PUY	BEZEL - CONSOLE FINISHER	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	EDV500470NUG	BEZEL - CONSOLE FINISHER	$6.29	To Order
	EDV500470VAE	BEZEL - CONSOLE FINISHER	$100.87	To Order
	EDV500470PVA	BEZEL - CONSOLE FINISHER	$8.08	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FRJ000020	PAD - ANTI-RATTLE	$13.05	To Order

Photo	Part No	Description	Price (each)	Stock
	XVC000050	MICROPHONE	$53.89	To Order

Photo	Part No	Description	Price (each)	Stock
	EDV500500	COVER - CONSOLE OVERHEAD	$8.70	To Order

Photo	Part No	Description	Price (each)	Stock
	EDV500510	COVER - CONSOLE OVERHEAD	$8.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013536	CONSOLE - OVERHEAD	$145.83	To Order
	LR013537	CONSOLE - OVERHEAD	$145.83	To Order
	LR013538	CONSOLE - OVERHEAD	$145.83	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FJV500800NUG	CONSOLE	$35.08	To Order
	FJV500800VAE	CONSOLE	$35.08	To Order
	FJV500800PVA	CONSOLE - OVERHEAD	$20.54	To Order

Photo	Part No	Description	Price (each)	Stock
	FHB500170NUG	CONSOLE - OVERHEAD	$351.20	To Order
	FHB500170VAE	CONSOLE - OVERHEAD	$351.20	To Order
	FHB500170PVA	CONSOLE - OVERHEAD	$398.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<518B48A	EDV500500	COVER - CONSOLE OVERHEAD	EDV500500 COVER - CONSOLE OVERHEAD With Microphone / From: AA000001	$8.70	1
<518B48B	EDV500510	COVER - CONSOLE OVERHEAD	EDV500510 COVER - CONSOLE OVERHEAD With Microphone / From: AA000001	$8.70	1
<519A58A	LR013536	CONSOLE - OVERHEAD	LR013536 CONSOLE - OVERHEAD Ivory Headliner / Front / From: AA000001 / To: AA309548	$145.83	1
<519A58A	LR013537	CONSOLE - OVERHEAD	LR013537 CONSOLE - OVERHEAD With Jet Headliner / Front / From: AA000001 / To: AA309548	$145.83	1
<519A58A	LR013538	CONSOLE - OVERHEAD	LR013538 CONSOLE - OVERHEAD Parchment Headliner / Front / From: AA000001 / To: AA309548	$145.83	1
<519A58A	LR019337	CONSOLE - OVERHEAD	LR019337 CONSOLE - OVERHEAD Ivory Headliner / Front / From: AA309549	$361.79	1
<519A58A	LR019338	CONSOLE - OVERHEAD	LR019338 CONSOLE - OVERHEAD With Jet Headliner / Front / From: AA309549	$347.80	1
<519A58A	LR019339	CONSOLE - OVERHEAD	LR019339 CONSOLE - OVERHEAD Parchment Headliner / Front / From: AA309549	$361.79	1
<519A58B	FJV500800NUG	CONSOLE	FJV500800NUG CONSOLE Ivory Headliner, Less DVD Screen / Rear / From: AA000001	$35.08	1
<519A58B	FJV500800VAE	CONSOLE	FJV500800VAE CONSOLE Less DVD Screen, Parchment Headliner / Rear / From: AA000001	$35.08	1
<519A58B	FJV500800PVA	CONSOLE - OVERHEAD	FJV500800PVA CONSOLE - OVERHEAD Less DVD Screen, With Jet Headliner / Rear / From: AA000001	$20.54	1
<519A58C	FHB500170NUG	CONSOLE - OVERHEAD	FHB500170NUG CONSOLE - OVERHEAD Ivory Headliner, With Provision For DVD Screen / Rear / From: AA000001	$351.20	1
<519A58C	FHB500170VAE	CONSOLE - OVERHEAD	FHB500170VAE CONSOLE - OVERHEAD Parchment Headliner, With Provision For DVD Screen / Rear / From: AA000001	$351.20	1
<519A58C	FHB500170PVA	CONSOLE - OVERHEAD	FHB500170PVA CONSOLE - OVERHEAD With Jet Headliner, With Provision For DVD Screen / Rear / From: AA000001	$398.73	1
HS1	FYP500700	SCREW AND WASHER	FYP500700 SCREW AND WASHER 4.8X19, Console Front / From: AA000001	$0.55	2
17A092	FRJ000020	PAD - ANTI-RATTLE	FRJ000020 PAD - ANTI-RATTLE From: AA000001	$13.05	1
19A391	XVC000050	MICROPHONE	XVC000050 MICROPHONE From: AA000001	$53.89	1
14946A	EDV000053PUY	BEZEL - CONSOLE FINISHER	EDV000053PUY BEZEL - CONSOLE FINISHER Black / From: AA000001	$9.60	2
14946B	EDV500470NUG	BEZEL - CONSOLE FINISHER	EDV500470NUG BEZEL - CONSOLE FINISHER Ivory Headliner, Less Passenger Air Bag Deactivation / From: AA000001	$6.29	1
14946B	EDV500470VAE	BEZEL - CONSOLE FINISHER	EDV500470VAE BEZEL - CONSOLE FINISHER Less Passenger Air Bag Deactivation, Parchment Headliner / From: AA000001	$100.87	1
14946B	EDV500470PVA	BEZEL - CONSOLE FINISHER	EDV500470PVA BEZEL - CONSOLE FINISHER Less Passenger Air Bag Deactivation, With Jet Headliner / From: AA000001	$8.08	1
14946B	EDV500480PVA	BEZEL - CONSOLE FINISHER	EDV500480PVA BEZEL - CONSOLE FINISHER With Jet Headliner, With Passenger Air Bag Deactivation / From: AA000001	$31.73	1
14946B	EDV500480NUG	BEZEL - CONSOLE FINISHER	EDV500480NUG BEZEL - CONSOLE FINISHER Ivory Headliner, With Passenger Air Bag Deactivation / From: AA000001	$127.65	1
14946B	EDV500480VAE	BEZEL - CONSOLE FINISHER	EDV500480VAE BEZEL - CONSOLE FINISHER Parchment Headliner, With Passenger Air Bag Deactivation / From: AA000001	$105.68	1
