Rear Brake Pipes (LHD) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Rear Brake Pipes (LHD) ((V) FROMAA000001)

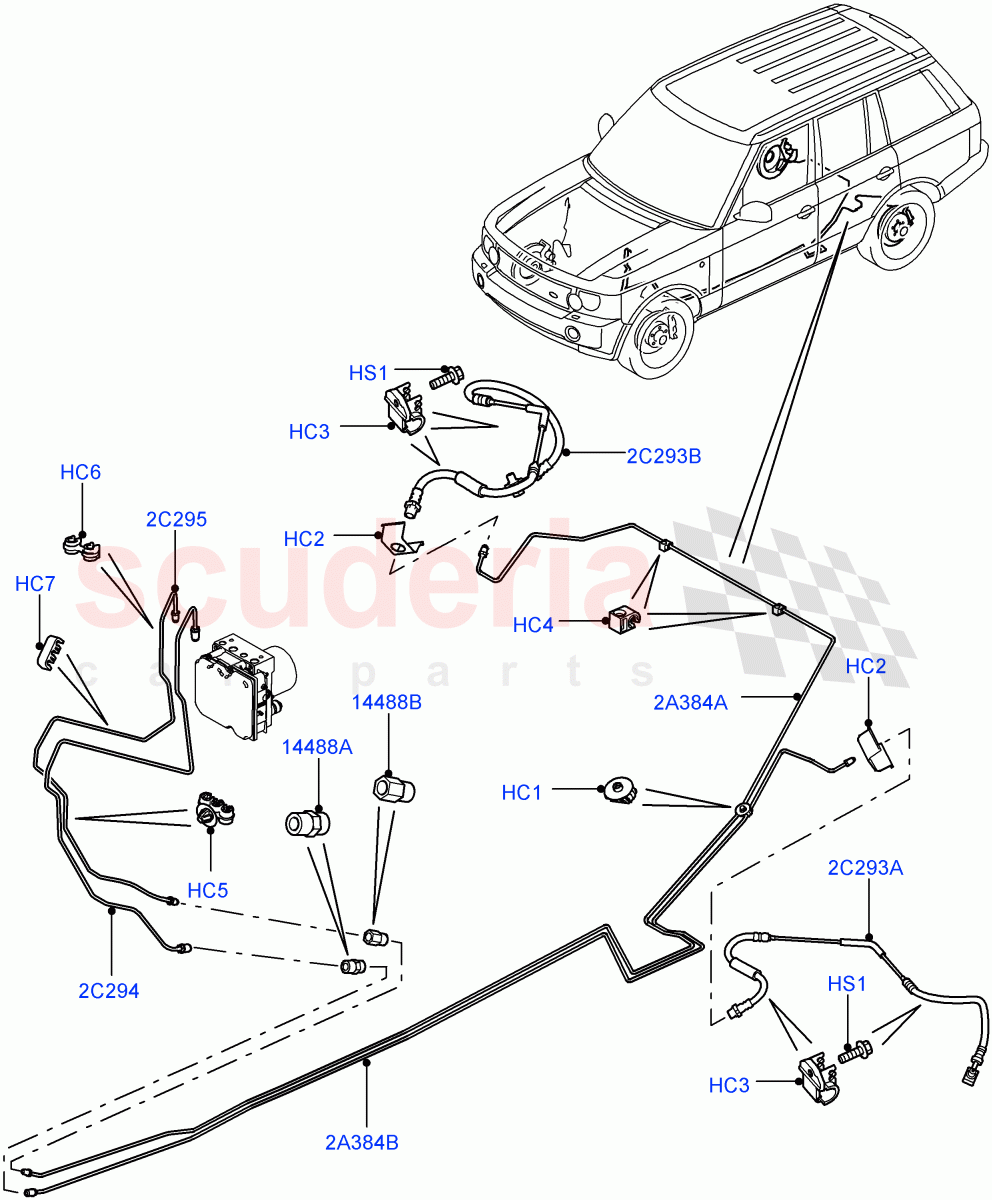

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGK100630	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100670L	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SHU500030	BRACKET - BRAKE HOSE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100570	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011843	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC101141	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU8846L	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016903	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016902	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500110	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500120	CONNECTOR - BRAKE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019463	TUBE - BRAKE	Enquire	To Order
	LR019463	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019464	TUBE - BRAKE	Enquire	To Order
	LR019464	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058025	TUBE - BRAKE	Enquire	To Order
	LR044358	TUBE - BRAKE	Enquire	To Order
	LR058025	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058026	TUBE - BRAKE	Enquire	To Order
	LR044359	TUBE - BRAKE	Enquire	To Order
	LR058026	TUBE - BRAKE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	SGK100630	CLIP - BRAKE PIPE	SGK100630 CLIP - BRAKE PIPE Double / From: AA000001	-	1	Enquire
HC2	SGK100670L	CLIP - RETAINING	SGK100670L CLIP - RETAINING Single / From: AA000001	-	2	Enquire
HC3	SHU500030	BRACKET - BRAKE HOSE SUPPORT	SHU500030 BRACKET - BRAKE HOSE SUPPORT Brake Hose, Single / From: AA000001	-	2	Enquire
HC4	SGK100570	CLIP	SGK100570 CLIP Single / From: AA000001	-	2	Enquire
HC5	LR011843	CLIP - SPECIAL	LR011843 CLIP - SPECIAL 3 way / From: AA000001	-	1	Enquire
HC6	SYC101141	CLIP	SYC101141 CLIP Double / From: AA000001	-	1	Enquire
HC7	ADU8846L	CLIP - BRAKE PIPE	ADU8846L CLIP - BRAKE PIPE 3 way / From: AA000001	-	2	Enquire
HS1	FS105166	SCREW	FS105166 SCREW M5 X 16MM / From: AA000001	-	4	Enquire
2A384A	LR019463	TUBE - BRAKE	LR019463 TUBE - BRAKE RH, Brake Pipe, Under Floor / From: AA000001 / To: AA307575	-	1	Enquire
2A384A	LR019463	TUBE - BRAKE	LR019463 TUBE - BRAKE RH, Brake Pipe, Under Floor / From: AA307576	-	1	Enquire
2A384B	LR019464	TUBE - BRAKE	LR019464 TUBE - BRAKE LH, Brake Pipe, Under Floor / From: AA000001 / To: AA307575	-	1	Enquire
2A384B	LR019464	TUBE - BRAKE	LR019464 TUBE - BRAKE LH, Brake Pipe, Under Floor / From: AA307576	-	1	Enquire
2C293A	LR058025	TUBE - BRAKE	LR058025 TUBE - BRAKE LH, To Caliper / From: AA000001 / To: CA638818	-	1	Enquire
2C293A	LR044358	TUBE - BRAKE	LR044358 TUBE - BRAKE LH, To Caliper / From: CA638819 / To: CA639877	-	1	Enquire
2C293A	LR058025	TUBE - BRAKE	LR058025 TUBE - BRAKE LH, To Caliper / From: CA639878	-	1	Enquire
2C293B	LR058026	TUBE - BRAKE	LR058026 TUBE - BRAKE RH, To Caliper / From: AA000001 / To: CA638818	-	1	Enquire
2C293B	LR044359	TUBE - BRAKE	LR044359 TUBE - BRAKE RH, To Caliper / From: CA638819 / To: CA639877	-	1	Enquire
2C293B	LR058026	TUBE - BRAKE	LR058026 TUBE - BRAKE RH, To Caliper / From: CA639878	-	1	Enquire
2C294	LR016903	TUBE - BRAKE	LR016903 TUBE - BRAKE Modulator To LH Rear / From: AA000001	-	1	Enquire
2C295	LR016902	TUBE - BRAKE	LR016902 TUBE - BRAKE Modulator To RH Rear / From: AA000001	-	1	Enquire
14488A	SYC500110	CONNECTOR	SYC500110 CONNECTOR LH, Brake Tube, M12 / From: AA000001	-	1	Enquire
14488B	SYC500120	CONNECTOR - BRAKE TUBE	SYC500120 CONNECTOR - BRAKE TUBE RH, Brake Tube, M10 / From: AA000001	-	1	Enquire
