Master Cylinder - Brake System ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Master Cylinder - Brake System ((V) FROMAA000001)

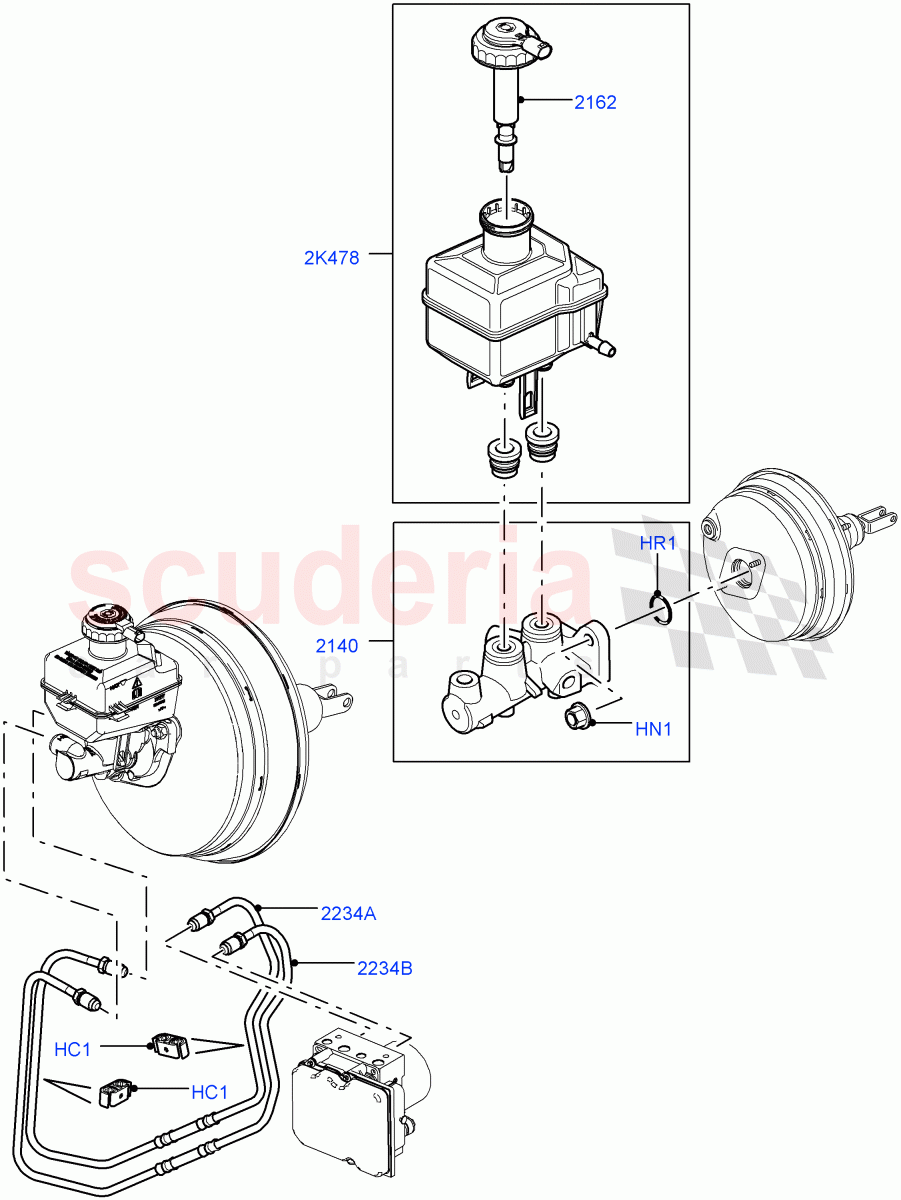

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WJC000170	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012898	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012972	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012900	KIT - MASTER CYLINDER REPAIR	Enquire	To Order
	LR012901	KIT - MASTER CYLINDER REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012971	CAP - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011723	TUBE ASSY - BRAKE - NYLON	Enquire	To Order
	LR011724	TUBE - BRAKE - NYLON	Enquire	To Order
	LR019349	TUBE - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR011725	TUBE ASSY - BRAKE - NYLON	Enquire	To Order
	LR011726	TUBE - BRAKE - NYLON	Enquire	To Order
	LR019350	TUBE - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012902	RESERVOIR - BRAKE FLUID	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	WJC000170	CLIP - BRAKE PIPE	WJC000170 CLIP - BRAKE PIPE Double / From: AA000001	-	2	Enquire
HN1	LR012898	NUT - FLANGED	LR012898 NUT - FLANGED M8 / From: AA000001	-	2	Enquire
HR1	LR012972	O-RING	LR012972 O-RING Brake Master Cylinder / From: AA000001	-	1	Enquire
2K478	LR012902	RESERVOIR - BRAKE FLUID	LR012902 RESERVOIR - BRAKE FLUID From: AA000001	-	1	Enquire
2140	LR012900	KIT - MASTER CYLINDER REPAIR	LR012900 KIT - MASTER CYLINDER REPAIR LHD / From: AA000001	-	1	Enquire
2140	LR012901	KIT - MASTER CYLINDER REPAIR	LR012901 KIT - MASTER CYLINDER REPAIR RHD / From: AA000001	-	1	Enquire
2162	LR012971	CAP - FILLER	LR012971 CAP - FILLER From: AA000001	-	1	Enquire
2234A	LR011723	TUBE ASSY - BRAKE - NYLON	LR011723 TUBE ASSY - BRAKE - NYLON LHD / Master Cylinder Primary / From: AA000001 / To: AA311503	-	1	Enquire
2234A	LR011724	TUBE - BRAKE - NYLON	LR011724 TUBE - BRAKE - NYLON RHD / Master Cylinder Primary / From: AA000001 / To: AA311503	-	1	Enquire
2234A	LR019349	TUBE - BRAKE	LR019349 TUBE - BRAKE LHD / Master Cylinder Primary / From: AA311504	-	1	Enquire
2234A	LR019447	TUBE - BRAKE	LR019447 TUBE - BRAKE RHD / Master Cylinder Primary / From: AA311504	-	1	Enquire
2234B	LR011725	TUBE ASSY - BRAKE - NYLON	LR011725 TUBE ASSY - BRAKE - NYLON LHD / Master Cylinder Secondary / From: AA000001 / To: AA311503	-	1	Enquire
2234B	LR011726	TUBE - BRAKE - NYLON	LR011726 TUBE - BRAKE - NYLON RHD / Master Cylinder Secondary / From: AA000001 / To: AA311503	-	1	Enquire
2234B	LR019350	TUBE - BRAKE	LR019350 TUBE - BRAKE LHD / Master Cylinder Secondary / From: AA311504	-	1	Enquire
2234B	LR019476	TUBE - BRAKE	LR019476 TUBE - BRAKE RHD / Master Cylinder Secondary / From: AA311504	-	1	Enquire
