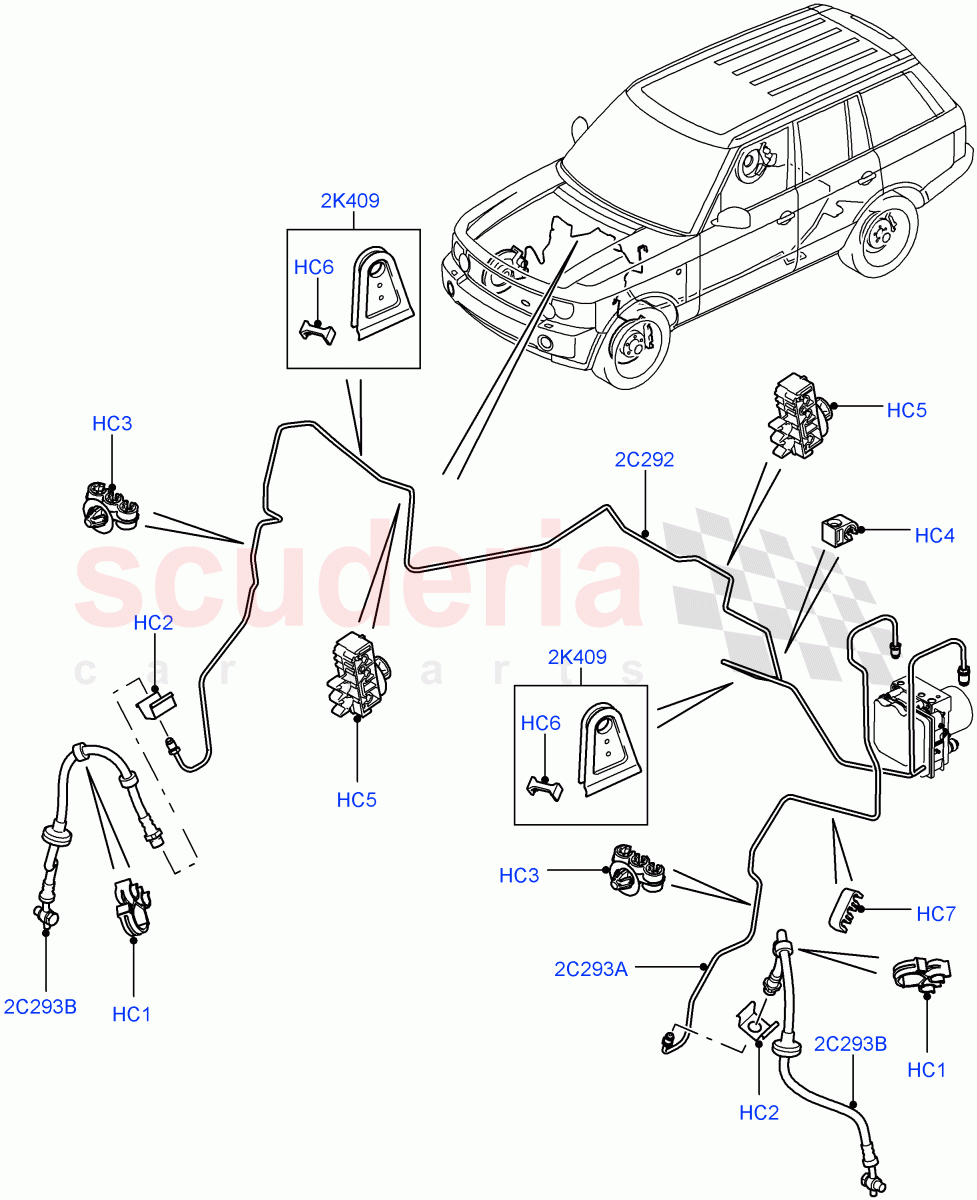

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGK000110	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100670L	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011843	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100570	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK500071	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011842	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU8846L	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011716	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012825	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016901	TUBE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	SGK000110	CLIP	SGK000110 CLIP Brake Hose, Triple / From: AA000001	-	-	Enquire
HC2	SGK100670L	CLIP - RETAINING	SGK100670L CLIP - RETAINING Single / From: AA000001	-	2	Enquire
HC3	LR011843	CLIP - SPECIAL	LR011843 CLIP - SPECIAL 3 way / From: AA000001	-	1	Enquire
HC4	SGK100570	CLIP	SGK100570 CLIP Single / From: AA000001	-	2	Enquire
HC5	SGK500071	CLIP - BRAKE PIPE	SGK500071 CLIP - BRAKE PIPE Double / From: AA000001	-	2	Enquire
HC6	LR011842	CLIP - SPECIAL	LR011842 CLIP - SPECIAL Locking / From: AA000001	-	2	Enquire
HC7	ADU8846L	CLIP - BRAKE PIPE	ADU8846L CLIP - BRAKE PIPE 3 way / From: AA000001	-	2	Enquire
2C292	LR011716	TUBE - BRAKE	LR011716 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / From: AA000001	-	1	Enquire
2C293A	LR016901	TUBE	LR016901 TUBE LH, ABS Modulator To Caliper Hose / From: AA000001	-	1	Enquire
2C293B	SHB500124	TUBE	SHB500124 TUBE RH/LH, To Caliper / From: AA000001 / To: BA335374	-	2	Enquire
2C293B	LR016956	TUBE	LR016956 TUBE RH/LH, To Caliper / From: BA335375 / To: CA387188	-	2	Enquire
2C293B	LR044353	TUBE - BRAKE	LR044353 TUBE - BRAKE RH/LH, To Caliper / From: CA387189 / To: CA392666	-	2	Enquire
2C293B	LR048085	TUBE - BRAKE	LR048085 TUBE - BRAKE RH/LH, To Caliper / From: CA392667 / To: CA492666	-	2	Enquire
2K409	LR012825	GROMMET	LR012825 GROMMET From: AA000001	-	2	Enquire
