Name: Front Brake Pipes (RHD) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

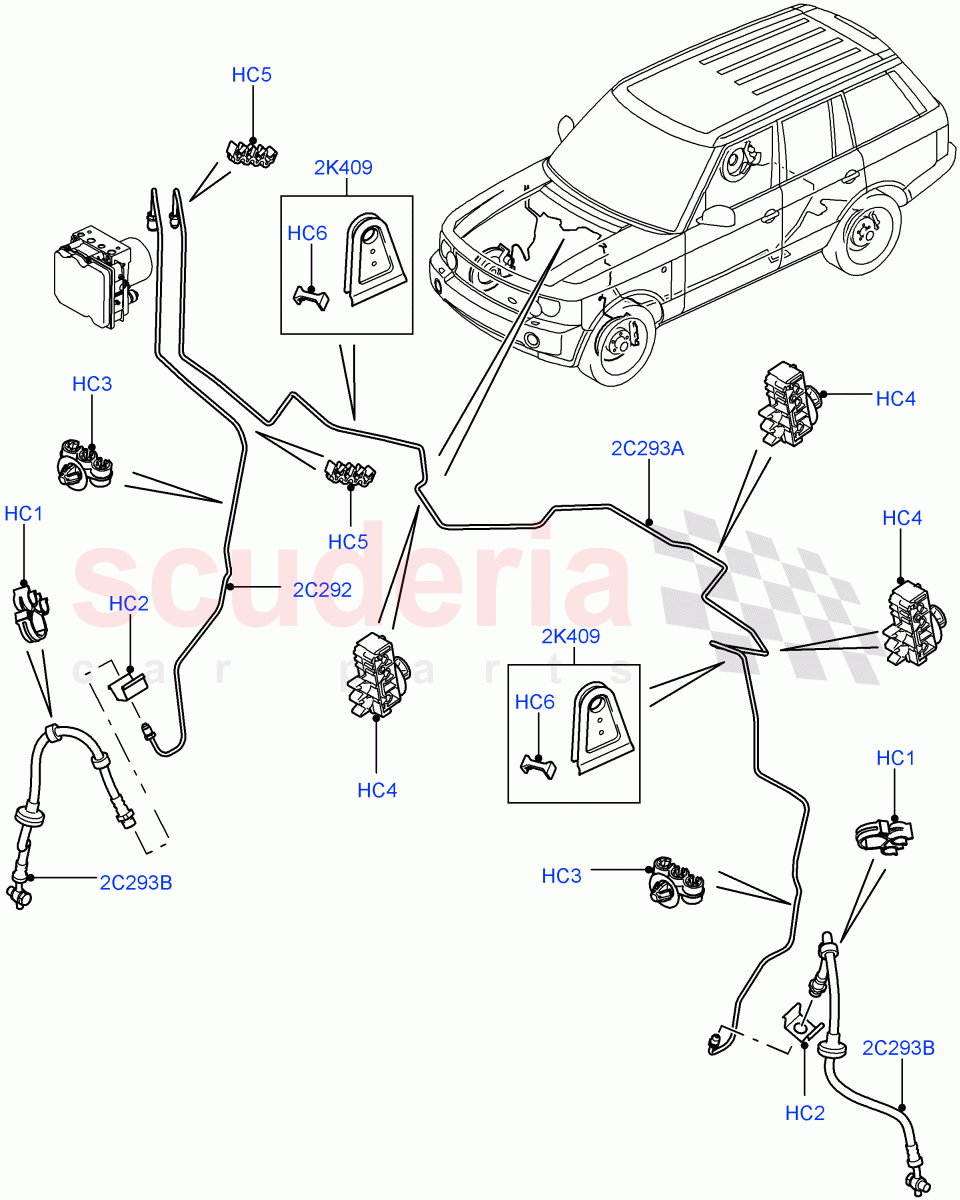

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGK000110	CLIP	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100670L	CLIP - RETAINING	$6.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011843	CLIP - SPECIAL	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK000050	CLIP - BRAKE PIPE	$20.21	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500040	CLIP	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011842	CLIP - SPECIAL	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011717	TUBE - BRAKE	$48.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012826	GROMMET	$8.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016900	TUBE	$116.82	To Order

...and 2 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	SGK000110	CLIP	SGK000110 CLIP Brake Hose, Triple / From: AA000001	$3.78	-
HC2	SGK100670L	CLIP - RETAINING	SGK100670L CLIP - RETAINING Single / From: AA000001	$6.19	2
HC3	LR011843	CLIP - SPECIAL	LR011843 CLIP - SPECIAL 3 way / From: AA000001	$1.62	1
HC4	SGK000050	CLIP - BRAKE PIPE	SGK000050 CLIP - BRAKE PIPE Triple / From: AA000001	$20.21	3
HC5	SYC500040	CLIP	SYC500040 CLIP 4 Way / From: AA000001	$2.32	2
HC6	LR011842	CLIP - SPECIAL	LR011842 CLIP - SPECIAL Locking / From: AA000001	$3.20	2
2C292	LR011717	TUBE - BRAKE	LR011717 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / From: AA000001	$48.18	1
2C293A	LR016900	TUBE	LR016900 TUBE LH, ABS Modulator To Caliper Hose / From: AA000001	$116.82	1
2C293B	SHB500124	TUBE	SHB500124 TUBE RH/LH, To Caliper / From: AA000001 / To: BA335374	$50.49	2
2C293B	LR016956	TUBE	LR016956 TUBE RH/LH, To Caliper / From: BA335375 / To: CA387188	$49.19	2
2C293B	LR044353	TUBE - BRAKE	LR044353 TUBE - BRAKE RH/LH, To Caliper / From: CA387189 / To: CA392666	$75.34	2
2C293B	LR048085	TUBE - BRAKE	LR048085 TUBE - BRAKE RH/LH, To Caliper / From: CA392667 / To: CA492666	$77.18	2
2C293B	LR075628	TUBE - BRAKE	LR075628 TUBE - BRAKE RH/LH, To Caliper / From: CA492667	$58.20	2
2K409	LR012826	GROMMET	LR012826 GROMMET From: AA000001	$8.20	2

Front Brake Pipes (Rhd) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]
