Tyre Pressure Monitor System ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Tyre Pressure Monitor System ((V) FROMAA000001)

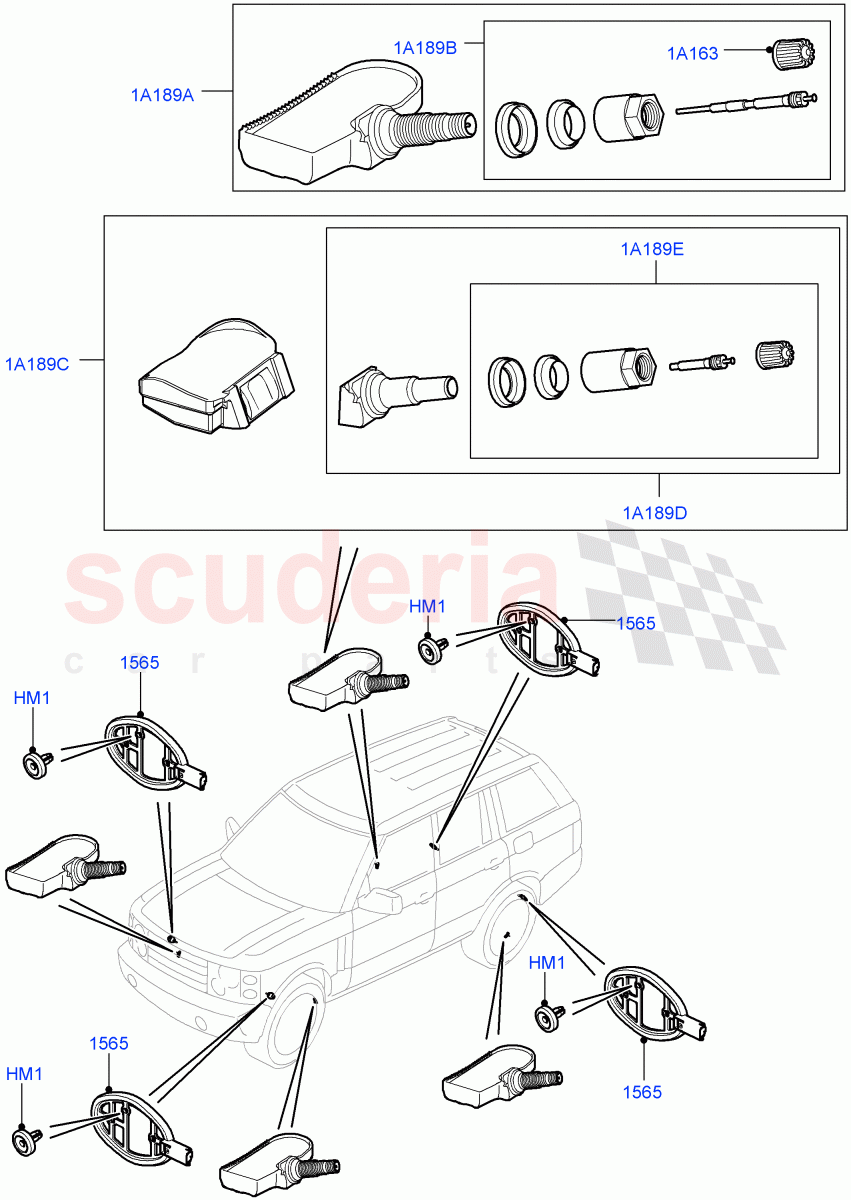

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005541	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRE000010	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRF500030	CAP - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018858	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order
	LR018859	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order
	LR031712	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR032879	KIT - TYRE PRESSURE MONITORING SENS	Enquire	To Order
	LR043161	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066379	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order
	LR070840	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032834	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order
	LR043162	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032865	KIT - TYRE PRESSURE MONITORING SENS	Enquire	To Order
	LR043163	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HM1	LR005541	RIVET - PLASTIC	LR005541 RIVET - PLASTIC Rivet Push Pin 7 X 3-4.5 / From: AA000001	-	8	Enquire
1A163	RRF500030	CAP - VALVE	RRF500030 CAP - VALVE From: AA000001	-	4	Enquire
1A189A	LR018858	SENSOR - TYRE PRESSURE MONITORING	LR018858 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 433 MHZ / Complete Kit / From: AA000001 / To: AA321619	-	4	Enquire
1A189A	LR018859	SENSOR - TYRE PRESSURE MONITORING	LR018859 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 315 MHZ / Complete Kit / From: AA000001 / To: AA321619	-	4	Enquire
1A189A	LR031712	SENSOR - TYRE PRESSURE MONITORING	LR031712 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 433 MHZ / Complete Kit, Includes 1 Set, Type TG1B / From: AA321620 / To: CA959998	-	-	Enquire
1A189A	LR031713	SENSOR - TYRE PRESSURE MONITORING	LR031713 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 315 MHZ / Complete Kit, Includes 1 Set, Type TG1B / From: AA321620 / To: CA959998	-	-	Enquire
1A189B	LR032879	KIT - TYRE PRESSURE MONITORING SENS	LR032879 KIT - TYRE PRESSURE MONITORING SENS Includes 1 Set, Includes Valve Core, Nut, Seal, Washer And Cap / From: AA000001 / To: AA999999	-	4	Enquire
1A189B	LR043161	SENSOR - TYRE PRESSURE MONITORING	LR043161 SENSOR - TYRE PRESSURE MONITORING Includes 5 sets, Includes Valve Core, Nut, Seal, Washer And Cap / From: BA000001 / To: CA959998	-	1	Enquire
1A189C	LR066379	SENSOR - TYRE PRESSURE MONITORING	LR066379 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 315 MHZ / Complete Kit, Includes 1 Set, Type TG1C / From: CA959999	-	-	Enquire
1A189C	LR070840	SENSOR - TYRE PRESSURE MONITORING	LR070840 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 433 MHZ / Complete Kit, Includes 1 Set, Type TG1C / From: CA959999	-	-	Enquire
1A189D	LR032834	SENSOR - TYRE PRESSURE MONITORING	LR032834 SENSOR - TYRE PRESSURE MONITORING Includes 1 Set, Less Sensor, Type TG1C / From: CA959999 / To: CA969998	-	4	Enquire
1A189D	LR043162	SENSOR - TYRE PRESSURE MONITORING	LR043162 SENSOR - TYRE PRESSURE MONITORING Includes 5 sets, Less Sensor, Type TG1C / From: CA969999	-	1	Enquire
1A189E	LR032865	KIT - TYRE PRESSURE MONITORING SENS	LR032865 KIT - TYRE PRESSURE MONITORING SENS Includes 1 Set, Includes Valve Core, Nut, Seal, Washer And Cap, Type TG1C / From: CA959999 / To: CA969998	-	4	Enquire
1A189E	LR043163	SENSOR - TYRE PRESSURE MONITORING	LR043163 SENSOR - TYRE PRESSURE MONITORING Includes 5 sets, Includes Valve Core, Nut, Seal, Washer And Cap, Type TG1C / From: CA969999	-	1	Enquire
1565	RRE000010	SENSOR - TYRE PRESSURE MONITORING	RRE000010 SENSOR - TYRE PRESSURE MONITORING From: AA000001	-	4	Enquire
