Rear Knuckle And Suspension Arms ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Rear Knuckle And Suspension Arms ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP000081 SCREW $3.81 To Order
Photo Part No Description Price (each) Stock
RYP000061 SCREW $12.91 To Order
Photo Part No Description Price (each) Stock
RYP000071 SCREW $6.85 To Order
Photo Part No Description Price (each) Stock
RYP501150 SCREW $16.51 To Order
Photo Part No Description Price (each) Stock
RYP501160 SCREW $15.64 To Order
Photo Part No Description Price (each) Stock
RYV000010 CIRCLIP $4.24 IN STOCK
Photo Part No Description Price (each) Stock
RUE000010 CIRCLIP $8.25 To Order
Photo Part No Description Price (each) Stock
RYH501100 NUT - FLANGED $3.48 To Order
Photo Part No Description Price (each) Stock
KYH000051 NUT - FLANGED $5.31 To Order
Photo Part No Description Price (each) Stock
RUH100030 NUT - SPECIAL $10.83 To Order
Photo Part No Description Price (each) Stock
RGI000012 WASHER - FLAT - SPECIAL $7.43 IN STOCK
Photo Part No Description Price (each) Stock
LR009816 HUB - WHEEL $539.76 To Order
Photo Part No Description Price (each) Stock
RLB000011 BEARING $108.03 To Order
Photo Part No Description Price (each) Stock
RGG500420 ARM - REAR SUSPENSION $299.50 To Order
RGG500430 ARM - REAR SUSPENSION $299.50 To Order
LR023711 ARM - REAR SUSPENSION $262.04 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RGG000084 ARM - REAR SUSPENSION $504.46 To Order
RGG000094 ARM - REAR SUSPENSION $504.46 To Order
LR023713 ARM - REAR SUSPENSION $1,262.66 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RGD500180 LINK $138.05 To Order
Photo Part No Description Price (each) Stock
KHW000010 BUMP STOP $78.56 To Order
Photo Part No Description Price (each) Stock
RGX000080 BUSH $132.45 To Order
Photo Part No Description Price (each) Stock
RGX000071 BUSH $99.18 To Order
Photo Part No Description Price (each) Stock
RGX000060 BUSH $77.73 To Order
Photo Part No Description Price (each) Stock
LR012740 KNUCKLE AND HUB $660.28 To Order
LR012741 KNUCKLE AND HUB $654.04 To Order
Photo Part No Description Price (each) Stock
LR039924 KNUCKLE - REAR WHEEL $686.71 To Order
LR039925 KNUCKLE - REAR WHEEL $686.71 To Order
Photo Part No Description Price (each) Stock
RHF000260 BUSH $59.43 To Order
Photo Part No Description Price (each) Stock
RBK500220 BUSH - REAR SUSPENSION $49.97 To Order
LR032644 BUSH - REAR SUSPENSION $68.82 To Order
View All

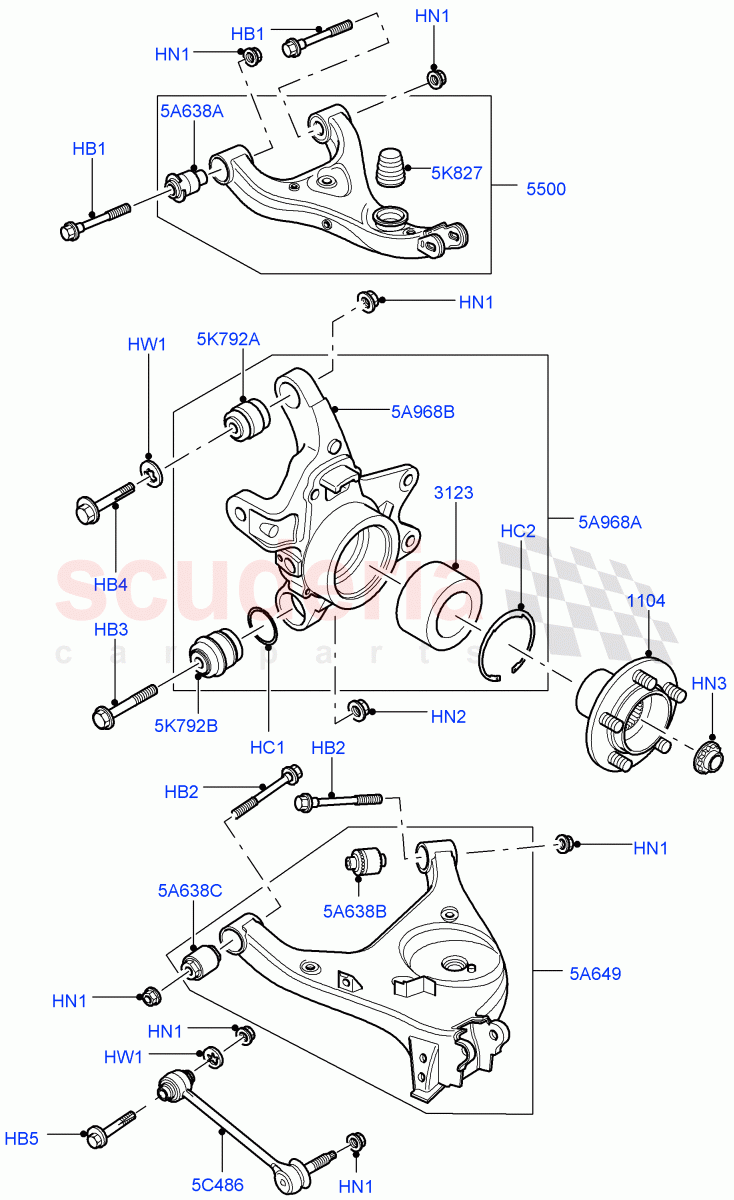

Rear Knuckle And Suspension Arms ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP000081
SCREW
HEX Flange, M14 X 105MM / From: AA000001 		$3.81 4
HB2 RYP000061
SCREW
HEX Flange, M14 X 98MM / From: AA000001 		$12.91 4
HB3 RYP000071
SCREW
HEX Flange, M16 X 98MM / From: AA000001 		$6.85 2
HB4 RYP501150
SCREW
HEX Flange, M14 X 88MM / From: AA000001 		$16.51 2
HB5 RYP501160
SCREW
HEX Flange, M14 X 81MM / From: AA000001 		$15.64 2
HC1 RYV000010
CIRCLIP
Lower Bush Rear Knuckle / From: AA000001
IN STOCK 		$4.24 2
HC2 RUE000010
CIRCLIP 		$8.25 2
HN1 RYH501100
NUT - FLANGED
HEX Flange, M14 X 1.5 / From: AA000001 		$3.48 2
HN2 KYH000051
NUT - FLANGED
HEX Flange, M16 / From: AA000001 		$5.31 2
HN3 RUH100030
NUT - SPECIAL
M27 / From: AA000001 		$10.83 2
HW1 RGI000012
WASHER - FLAT - SPECIAL
Rear Suspension, Special Washer / From: AA000001
IN STOCK 		$7.43 2
5A638A RGX000080
BUSH
Front And Rear, Upper Arm / From: AA000001 		$132.45 4
5A638B RGX000071
BUSH
Lower Arm, Rear / From: AA000001 		$99.18 1
5A638C RGX000060
BUSH
Front, Lower Arm / From: AA000001 		$77.73 1
5A649 RGG000084
ARM - REAR SUSPENSION
RH Lower / From: AA000001 / To: AA331624 		$504.46 1
5A649 RGG000094
ARM - REAR SUSPENSION
LH Lower / From: AA000001 / To: AA331624 		$504.46 1
5A649 LR023713
ARM - REAR SUSPENSION
RH Lower / From: AA331625 		$1,262.66 1
5A649 LR023714
ARM - REAR SUSPENSION
LH Lower / From: AA331625 		$1,262.66 1
5A968A LR012740
KNUCKLE AND HUB
RH, With Bushes, Bearing And Circlips / From: AA000001 		$660.28 1
5A968A LR012741
KNUCKLE AND HUB
LH, With Bushes, Bearing And Circlips / From: AA000001 		$654.04 1
5A968B LR039924
KNUCKLE - REAR WHEEL
RH, Less Bushes, Bearing And Circlips / From: AA000001 		$686.71 1
5A968B LR039925
KNUCKLE - REAR WHEEL
LH, Less Bushes, Bearing And Circlips / From: AA000001 		$686.71 1
5C486 RGD500180
LINK
Toe Link / From: AA000001 		$138.05 2
5K792A RHF000260
BUSH
Upper / From: AA000001 		$59.43 2
5K792B RBK500220
BUSH - REAR SUSPENSION
Lower Bush Rear Knuckle / From: AA000001 / To: BA999999 		$49.97 2
5K792B LR032644
BUSH - REAR SUSPENSION
Lower Bush Rear Knuckle / From: CA000001 		$68.82 2
5K827 KHW000010
BUMP STOP
From: AA000001 		$78.56 1
1104 LR009816
HUB - WHEEL
From: AA000001 		$539.76 2
3123 RLB000011
BEARING
From: AA000001 		$108.03 2
5500 RGG500420
ARM - REAR SUSPENSION
RH Upper / From: AA000001 / To: AA331624 		$299.50 1
5500 RGG500430
ARM - REAR SUSPENSION
LH Upper / From: AA000001 / To: AA331624 		$299.50 1
5500 LR023711
ARM - REAR SUSPENSION
RH Upper / From: AA331625 		$262.04 1
5500 LR023712
ARM - REAR SUSPENSION
LH Upper / From: AA331625 		$262.04 1
