Front Susp.Arms/Stabilizer/X-Member (Less Armoured) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Front Susp.Arms/Stabilizer/X-Member (Less Armoured) ((V) FROMAA000001)

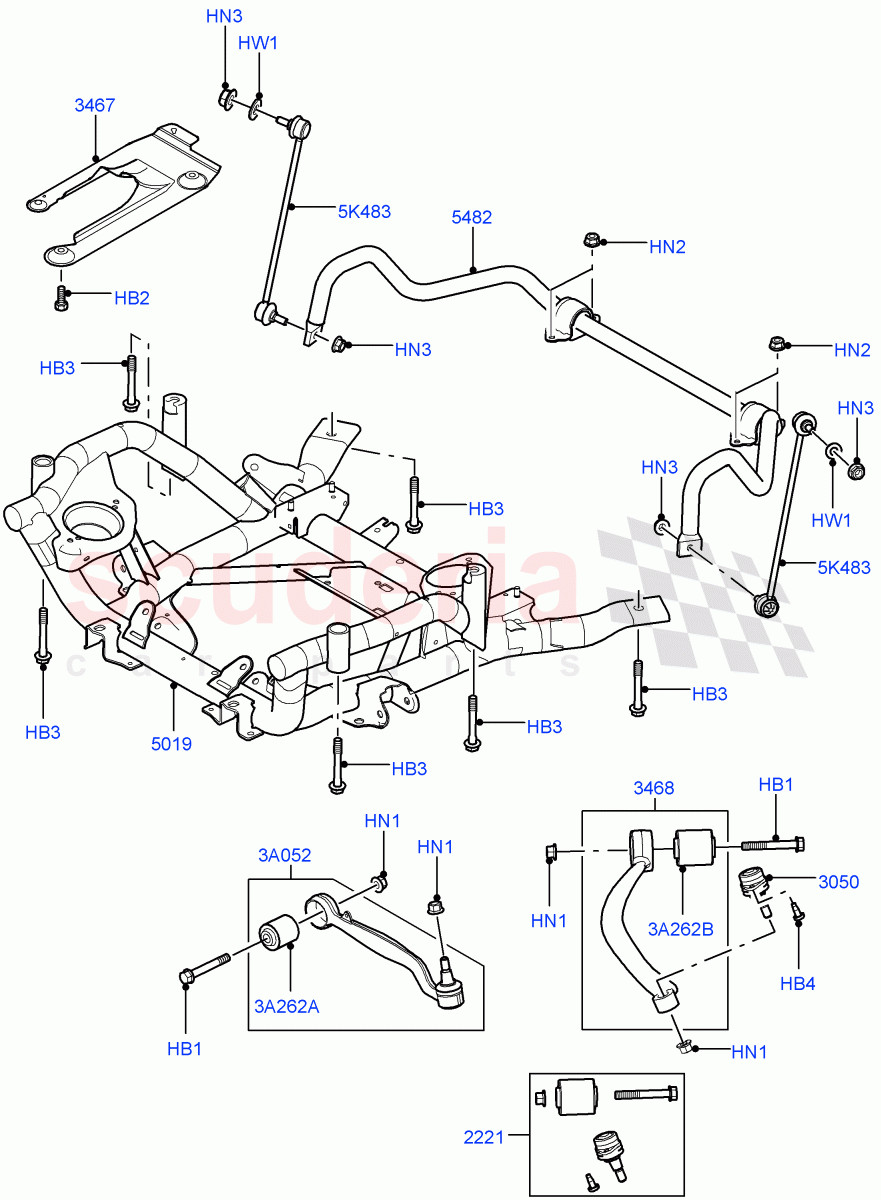

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KYG000043	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP000320	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG000042	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501170	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH501100	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH000021	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYH100271	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF000021	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067001	KIT - STEERING GEAR TIE ROD REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBK500210	JOINT - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KRB500190	DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBJ000120	STRUT	Enquire	To Order
	RBJ000130	STRUT	Enquire	To Order
	LR018343	ARM - FRONT SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010679	CROSSMEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBL500732	BAR - ROLL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBJ500920	ARM - FRONT SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBM500200	LINK - STABILIZER BAR	Enquire	To Order
	LR030047	LINK - STABILIZER BAR	Enquire	To Order
	LR073340	LINK - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBX000070	DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBX000200	BUSH - FRONT SUSPENSION ARM	Enquire	To Order
	LR018345	BUSHING - SHOULDERED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	KYG000043	BOLT	KYG000043 BOLT M14 X 103MM / From: AA000001	-	4	Enquire
HB2	KYP000320	BOLT	KYP000320 BOLT M10 X 20MM / From: AA000001	-	4	Enquire
HB3	KYG000042	BOLT	KYG000042 BOLT M14 x 100MM / From: AA000001	-	6	Enquire
HB4	RYP501170	BOLT - HEX.HEAD	RYP501170 BOLT - HEX.HEAD M10 X 20MM / From: AA000001	-	4	Enquire
HN1	RYH501100	NUT - FLANGED	RYH501100 NUT - FLANGED M14 X 1.5 / From: AA000001	-	4	Enquire
HN2	RYH000021	NUT - FLANGED	RYH000021 NUT - FLANGED M10 / From: AA000001	-	6	Enquire
HN3	QYH100271	NUT - FLANGED	QYH100271 NUT - FLANGED M12 / From: AA000001	-	2	Enquire
HW1	RYF000021	RESTRICTOR	RYF000021 RESTRICTOR M12 / From: AA000001	-	2	Enquire
3A052	RBJ500920	ARM - FRONT SUSPENSION	RBJ500920 ARM - FRONT SUSPENSION Lower / From: AA000001	-	2	Enquire
3A262A	RBX000070	DAMPER	RBX000070 DAMPER From: AA000001	-	2	Enquire
3A262B	RBX000200	BUSH - FRONT SUSPENSION ARM	RBX000200 BUSH - FRONT SUSPENSION ARM RH/LH / From: AA000001 / To: AA317420	-	2	Enquire
3A262B	LR018345	BUSHING - SHOULDERED	LR018345 BUSHING - SHOULDERED RH/LH / From: AA317421	-	2	Enquire
5K483	RBM500200	LINK - STABILIZER BAR	RBM500200 LINK - STABILIZER BAR From: AA000001 / To: BA345096	-	2	Enquire
5K483	LR030047	LINK - STABILIZER BAR	LR030047 LINK - STABILIZER BAR From: BA345097 / To: BA499999	-	2	Enquire
5K483	LR073340	LINK - STABILIZER BAR	LR073340 LINK - STABILIZER BAR From: BA500000	-	2	Enquire
2221	LR067001	KIT - STEERING GEAR TIE ROD REPAIR	LR067001 KIT - STEERING GEAR TIE ROD REPAIR From: AA000001	-	1	Enquire
3050	RBK500210	JOINT - BALL	RBK500210 JOINT - BALL From: AA000001	-	2	Enquire
3467	KRB500190	DEFLECTOR	KRB500190 DEFLECTOR From: AA000001	-	1	Enquire
3468	RBJ000120	STRUT	RBJ000120 STRUT RH Upper / From: AA000001 / To: AA317420	-	1	Enquire
3468	RBJ000130	STRUT	RBJ000130 STRUT LH Upper / From: AA000001 / To: AA317420	-	1	Enquire
3468	LR018343	ARM - FRONT SUSPENSION	LR018343 ARM - FRONT SUSPENSION RH Upper / From: AA317421	-	1	Enquire
3468	LR018344	ARM - FRONT SUSPENSION	LR018344 ARM - FRONT SUSPENSION LH Upper / From: AA317421	-	1	Enquire
5019	LR010679	CROSSMEMBER	LR010679 CROSSMEMBER From: AA000001	-	1	Enquire
5482	RBL500732	BAR - ROLL	RBL500732 BAR - ROLL From: AA000001	-	1	Enquire
