Name: Front Suspension Struts And Springs (Less Armoured, With Continuous Variable Damping) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Front Suspension Struts And Springs (Less Armoured, With Continuous Variable Damping) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Front Suspension Struts And Springs (Less Armoured, With Continuous Variable Damping) ((V)...

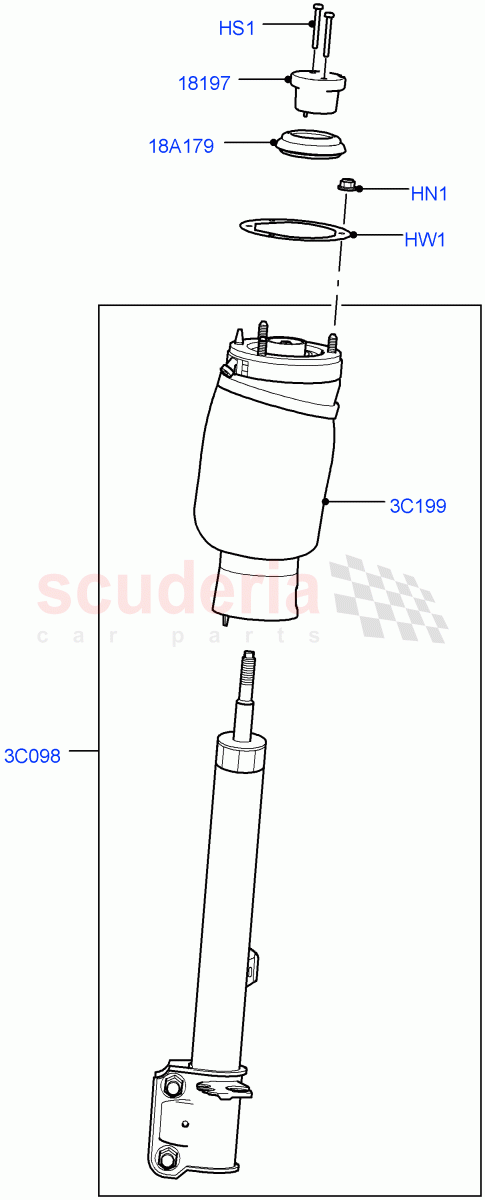

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LYH500020	NUT AND WASHER - HEX.	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500580	SCREW	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF000141	WASHER - SEALING	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012973	SPACER	$86.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032560	MACPHERSON STRUT	$1,836.77	To Order
	LR032567	MACPHERSON STRUT	$1,836.77	To Order
	LR023743	SHOCK ABSORBER - FRONT	$1,686.56	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051702	SPRING - AIR SUSPENSION (NON HAZ)	$423.91	To Order
	LR051700	SPRING - AIR SUSPENSION (NON HAZ)	$423.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010682	COVER	$7.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LYH500020	NUT AND WASHER - HEX.	LYH500020 NUT AND WASHER - HEX. M10, Nut And Washer / From: AA000001	$3.74	6
HS1	FYP500580	SCREW	FYP500580 SCREW M6 x 55MM / From: AA000001	$3.53	4
HW1	RYF000141	WASHER - SEALING	RYF000141 WASHER - SEALING Front Suspension / From: AA000001	$4.25	2
3C098	LR032560	MACPHERSON STRUT	LR032560 MACPHERSON STRUT RH / From: AA000001 / To: BA361455	$1,836.77	1
3C098	LR032567	MACPHERSON STRUT	LR032567 MACPHERSON STRUT LH / From: AA000001 / To: BA361455	$1,836.77	1
3C098	LR023743	SHOCK ABSORBER - FRONT	LR023743 SHOCK ABSORBER - FRONT RH, For Warm Climates Only / From: AA333065 / To: BA361455	$1,686.56	1
3C098	LR023765	SHOCK ABSORBER	LR023765 SHOCK ABSORBER LH, For Warm Climates Only / From: AA333065 / To: BA361455	$1,686.56	1
3C098	LR032560	MACPHERSON STRUT	LR032560 MACPHERSON STRUT RH / From: BA361456	$1,836.77	1
3C098	LR032562	SHOCK ABSORBER - FRONT	LR032562 SHOCK ABSORBER - FRONT RH, For Warm Climates Only / From: BA361456	$1,731.68	1
3C098	LR032567	MACPHERSON STRUT	LR032567 MACPHERSON STRUT LH / From: BA361456	$1,836.77	1
3C098	LR032568	SHOCK ABSORBER	LR032568 SHOCK ABSORBER LH, For Warm Climates Only / From: BA361456	$1,731.68	1
3C199	LR051702	SPRING - AIR SUSPENSION (NON HAZ)	LR051702 SPRING - AIR SUSPENSION (NON HAZ) LH, (-) "GCC", Service Kit / From: AA000001	$423.91	1
3C199	LR051700	SPRING - AIR SUSPENSION (NON HAZ)	LR051700 SPRING - AIR SUSPENSION (NON HAZ) RH, (-) "GCC", Service Kit / From: AA000001	$423.91	1
18A179	LR010682	COVER	LR010682 COVER From: AA000001	$7.36	2
18197	LR012973	SPACER	LR012973 SPACER From: AA000001	$86.54	2
