Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
4380670 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
LR074061 WIRE - EARTH $68.26 To Order
LR076004 WIRING - ALTERNATOR $114.70 To Order
LR090101 WIRING - ALTERNATOR $104.64 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR063759 WIRE - ALTERNATOR $131.35 To Order
LR120985 WIRE - ALTERNATOR $181.08 To Order
LR120986 WIRE - ALTERNATOR $192.09 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041092 STUD $5.08 To Order
Photo Part No Description Price (each) Stock
LR085666 TERMINAL - BATTERY $102.75 To Order
Photo Part No Description Price (each) Stock
LR062488 WIRING - ENGINE $2,236.50 To Order
LR081111 WIRING - ENGINE $2,088.27 To Order
LR084893 WIRING - ENGINE $1,921.57 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041070 SHIELD - WIRING $23.60 To Order
Photo Part No Description Price (each) Stock
LR064071 WIRE - ENGINE EARTH $60.38 To Order
LR076899 WIRE - ENGINE EARTH $39.48 To Order
LR087736 WIRE - ENGINE EARTH $63.74 To Order
...and 1 more part variants. See table on right for more details.
View All

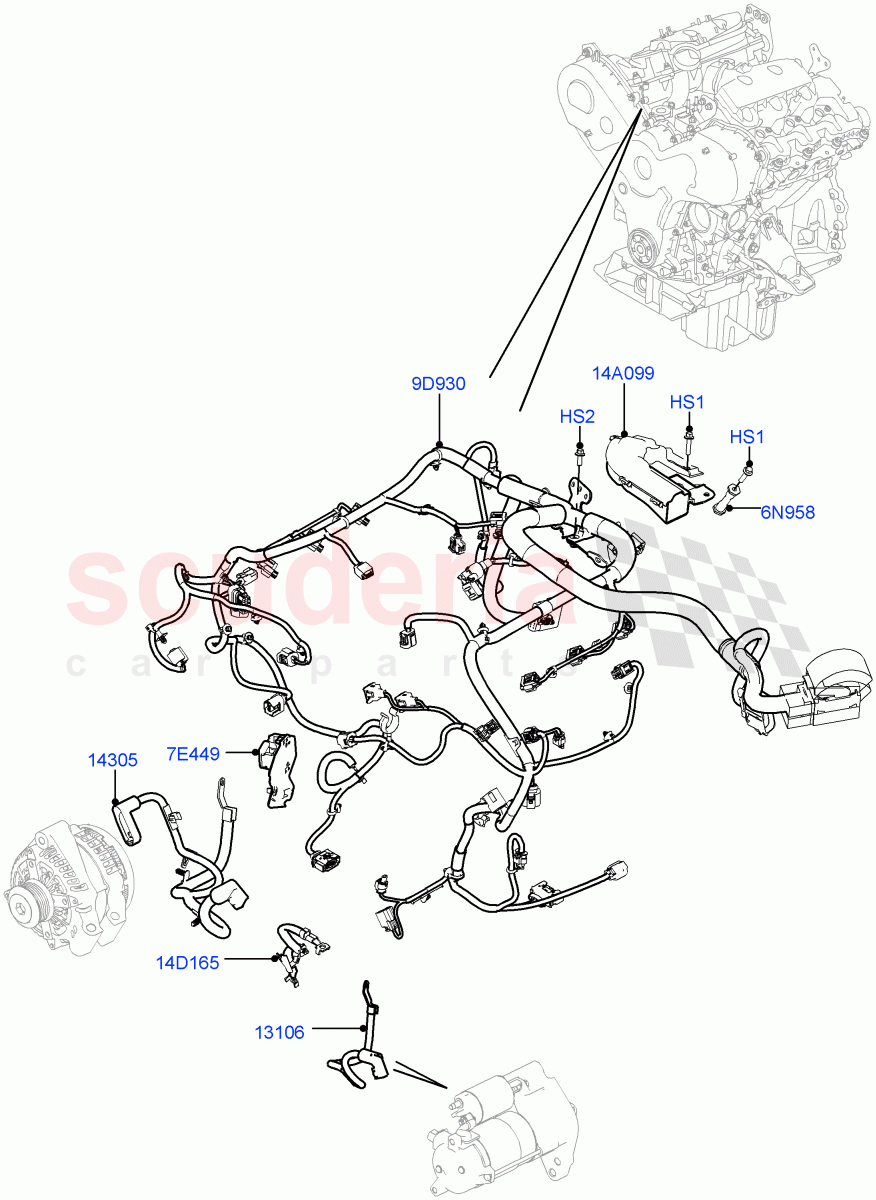

Electrical Wiring - Engine And Dash (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106256
SCREW
HEX Flange, M6 x 25MM / From: FA000001 		$0.42 2
HS2 4380670
SCREW
Hexagonal Head, M6 X 16MM / From: FA000001 		$0.73 1
6N958 LR041092
STUD
M6 X 11 + M6 X 11 / From: FA000001 		$5.08 1
7E449 LR085666
TERMINAL - BATTERY
Battery Cables / From: HA000001 		$102.75 1
9D930 LR062488
WIRING - ENGINE
Engine / From: FA000001 / To: GA267745 		$2,236.50 1
9D930 LR081111
WIRING - ENGINE
Engine / From: GA267746 / To: GA282653 		$2,088.27 1
9D930 LR084893
WIRING - ENGINE
Engine / From: GA282654 / To: GA307609 		$1,921.57 1
9D930 LR095828
WIRING - ENGINE
Engine / From: GA307610 / To: HA362059 		$1,823.91 1
9D930 LR109355
WIRING - ENGINE
Engine / From: HA362060 / To: KA516460 		$1,851.24 1
9D930 LR118761
WIRING - ENGINE
Engine / From: KA516461 		$1,851.24 1
14A099 LR041070
SHIELD - WIRING
Engine Harness / From: FA000001 		$23.60 1
14D165 LR064071
WIRE - ENGINE EARTH
Engine Earth / From: FA000001 / To: FA999999 		$60.38 1
14D165 LR076899
WIRE - ENGINE EARTH
Engine Earth / From: GA000001 / To: GA999999 		$39.48 1
14D165 LR087736
WIRE - ENGINE EARTH
Engine Earth / From: HA000001 / To: HA372034 		$63.74 1
14D165 LR107820
WIRE - ENGINE EARTH
Engine Earth / From: HA372035 		$60.74 1
13106 LR074061
WIRE - EARTH
8 Speed Auto Trans ZF 8HP70 HEV 4WD, Starter - Stop/Start System / Negative Earth / From: FA000001 / To: FA999999 		$68.26 1
13106 LR076004
WIRING - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 HEV 4WD, Starter - Stop/Start System / Negative Earth / From: GA000001 / To: GA298602 		$114.70 1
13106 LR090101
WIRING - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 HEV 4WD, Starter - Stop/Start System / Negative Earth / From: GA298603 / To: GA999999 		$104.64 1
13106 LR087737
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 HEV 4WD, Starter - Stop/Start System / Negative Earth / From: HA000001 / To: HA371982 		$170.91 1
13106 LR107824
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 HEV 4WD, Starter - Stop/Start System / Negative Earth / From: HA371983 		$162.77 1
14305 LR063759
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Starter - Stop/Start System / From: FA000001 / To: FA999999 		$131.35 1
14305 LR120985
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Starter - Stop/Start System / From: KA000001 		$181.08 1
14305 LR120986
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Standard Electric Starter Motor / From: KA000001 		$192.09 1
14305 LR076002
WIRING - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Starter - Stop/Start System / From: GA000001 / To: GA298514 		$105.53 1
14305 LR090099
WIRING - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Starter - Stop/Start System / From: GA298515 / To: GA999999 		$114.70 1
14305 LR063762
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Standard Electric Starter Motor / From: FA000001 / To: FA999999 		$105.06 1
14305 LR076005
WIRING - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Standard Electric Starter Motor / From: GA000001 / To: GA298514 		$114.70 1
14305 LR090102
WIRING - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Standard Electric Starter Motor / From: GA298515 / To: GA999999 		$114.70 1
14305 LR085675
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Starter - Stop/Start System / From: HA000001 / To: HA371968 		$151.10 1
14305 LR107822
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Starter - Stop/Start System / From: HA371969 / To: JA999999 		$160.07 1
14305 LR085676
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Standard Electric Starter Motor / From: HA000001 / To: HA371968 		$187.34 1
14305 LR107817
WIRE - ALTERNATOR
8 Speed Auto Trans ZF 8HP70 4WD, Standard Electric Starter Motor / From: HA371969 / To: JA999999 		$209.27 1
