Name: Electrical Wiring - Engine And Dash (3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

Electrical Wiring - Engine And Dash (3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMFA000001)

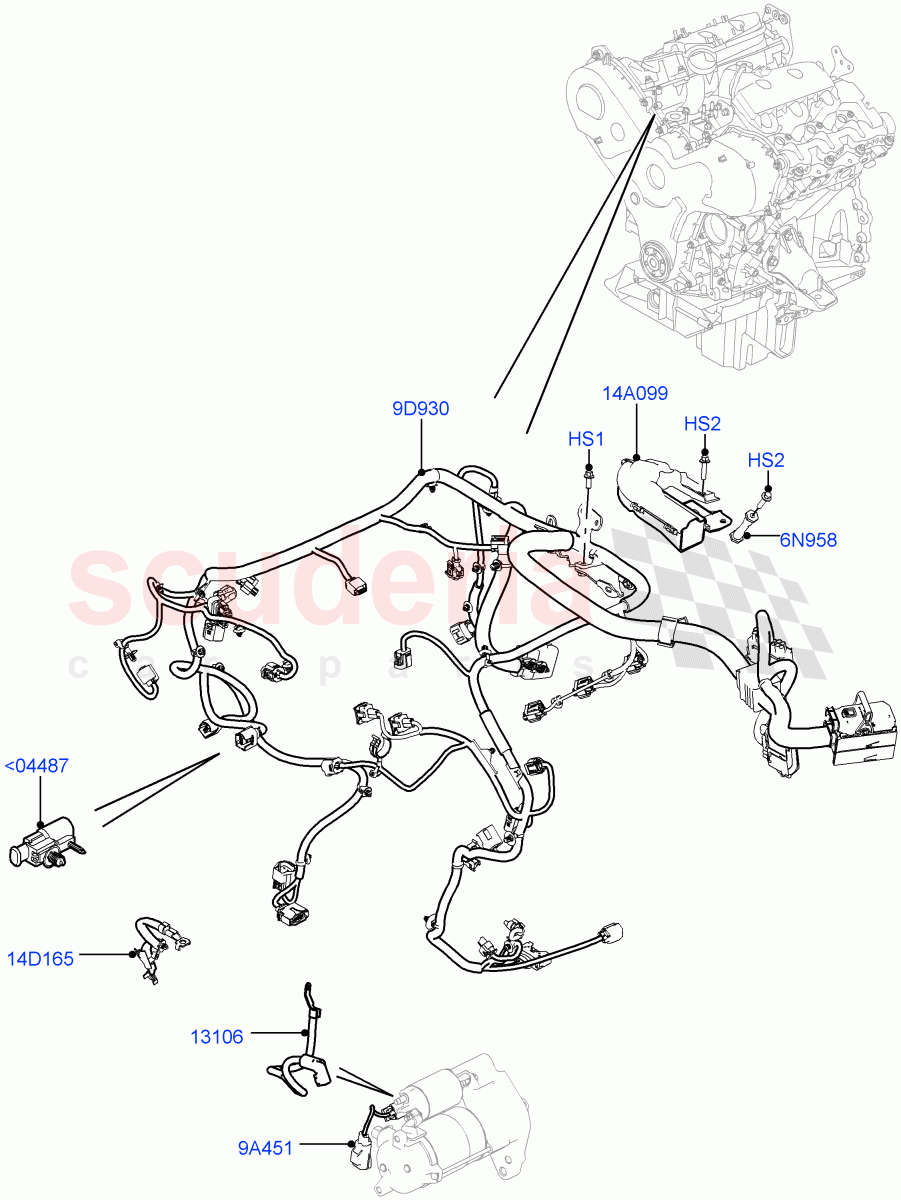

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order
	4378449	SCREW	$2.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051271	WIRE - EARTH	$157.96	To Order
	LR063761	WIRE - EARTH	$77.58	To Order
	LR076004	WIRING - ALTERNATOR	$114.70	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR041092	STUD	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041197	WIRING - STARTER MOTOR	$26.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053136	WIRING - ENGINE	$2,441.66	To Order
	LR072997	WIRING - ENGINE	$2,235.34	To Order
	LR077789	WIRING - ENGINE	$2,156.73	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR048826	PLUG - BLANKING	$19.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041070	SHIELD - WIRING	$23.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040626	WIRE - ENGINE EARTH	$46.02	To Order
	LR076899	WIRE - ENGINE EARTH	$39.48	To Order
	LR064071	WIRE - ENGINE EARTH	$60.38	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<04487	LR048826	PLUG - BLANKING	LR048826 PLUG - BLANKING Alternator / From: EA000001	$19.96	1
HS1	4380670	SCREW	4380670 SCREW Hexagonal Head, M6 X 16MM / From: EA000001	$0.73	1
HS2	FS106256	SCREW	FS106256 SCREW HEX Flange, M6 x 25MM / From: EA000001 / To: EA999999	$0.42	2
HS2	4378449	SCREW IN STOCK	4378449 SCREW HEX Flange, M6 x 25MM / From: FA000001 IN STOCK	$2.11	2
6N958	LR041092	STUD	LR041092 STUD M6 X 11 + M6 X 11 / From: EA000001	$5.08	1
9A451	LR041197	WIRING - STARTER MOTOR	LR041197 WIRING - STARTER MOTOR Starter - Stop/Start System / From: EA000001	$26.89	1
9D930	LR053136	WIRING - ENGINE	LR053136 WIRING - ENGINE Engine / From: EA000001 / To: FA999999	$2,441.66	1
9D930	LR072997	WIRING - ENGINE	LR072997 WIRING - ENGINE Engine / From: GA000001 / To: GA254387	$2,235.34	1
9D930	LR077789	WIRING - ENGINE	LR077789 WIRING - ENGINE Engine / From: GA254388 / To: GA271859	$2,156.73	1
9D930	LR082721	WIRING - ENGINE	LR082721 WIRING - ENGINE Engine / From: GA271860	$2,083.75	1
14A099	LR041070	SHIELD - WIRING	LR041070 SHIELD - WIRING Engine Harness / From: EA000001	$23.60	1
14D165	LR040626	WIRE - ENGINE EARTH	LR040626 WIRE - ENGINE EARTH Engine Earth / From: EA000001 / To: EA196690	$46.02	1
14D165	LR076899	WIRE - ENGINE EARTH	LR076899 WIRE - ENGINE EARTH From: GA000001	$39.48	1
14D165	LR064071	WIRE - ENGINE EARTH	LR064071 WIRE - ENGINE EARTH Engine Earth / From: EA196691 / To: FA999999	$60.38	1
13106	LR051271	WIRE - EARTH	LR051271 WIRE - EARTH Starter - Stop/Start System / Negative Earth / From: EA000001 / To: EA999999	$157.96	1
13106	LR063761	WIRE - EARTH	LR063761 WIRE - EARTH Starter - Stop/Start System / Negative Earth / From: FA000001 / To: FA999999	$77.58	1
13106	LR076004	WIRING - ALTERNATOR	LR076004 WIRING - ALTERNATOR Starter - Stop/Start System / Negative Earth / From: GA000001 / To: GA999999	$114.70	1
13106	LR087737	WIRE - ALTERNATOR	LR087737 WIRE - ALTERNATOR Starter - Stop/Start System / Negative Earth / From: HA000001	$170.91	1
