Switches (Steering Column)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Switches (Steering Column)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009012 SCREW $2.36 To Order
Photo Part No Description Price (each) Stock
LR041113 SWITCH - STEERING COLUMN ADJUST $87.77 To Order
LR058162 SWITCH - STEERING COLUMN ADJUST $67.83 To Order
LR071107 SWITCH - STEERING COLUMN ADJUST $28.18 To Order
Photo Part No Description Price (each) Stock
LR042313 SENSOR - STEERING ROTATION $224.45 To Order
LR042314 SENSOR - STEERING ROTATION $140.48 To Order
LR034960 SENSOR - STEERING ROTATION $345.06 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034959 HOUSING - STEERING ANGLE SENSOR $98.67 To Order
LR042312 HOUSING - STEERING ANGLE SENSOR $80.24 To Order
LR042311 HOUSING - STEERING ANGLE SENSOR $96.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR024626 SWITCH - DIRECTION INDICATOR $203.78 To Order
LR024627 SWITCH - DIRECTION INDICATOR $132.26 To Order
LR125094 SWITCH - DIRECTION INDICATOR $234.00 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR024629 SWITCH - WASHER AND WIPER $195.82 To Order
LR125107 SWITCH - WASHER AND WIPER $230.87 To Order
LR125097 SWITCH - WASHER AND WIPER $216.01 To Order
View All

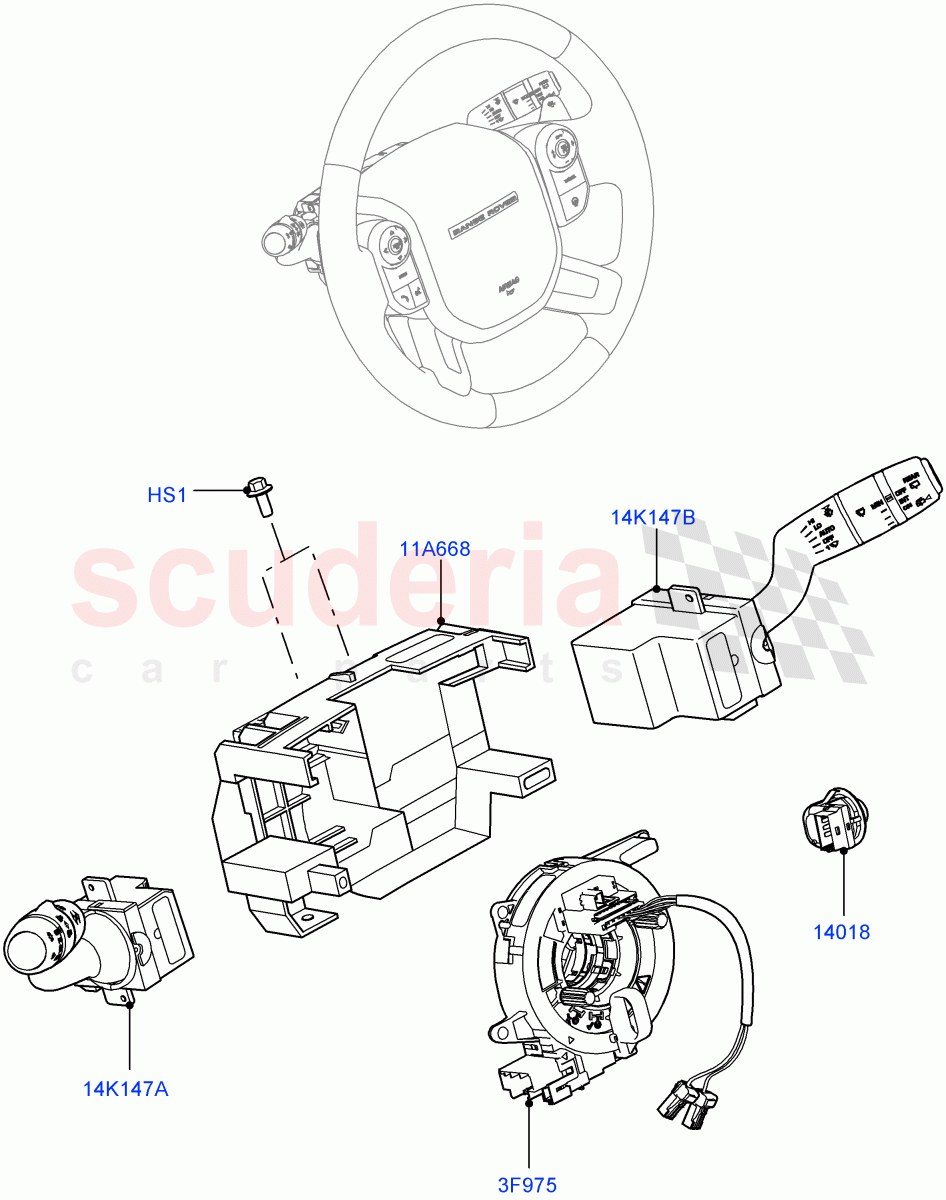

Switches (Steering Column) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR009012
SCREW
M5 X 12MM 		$2.36 2
3F975 LR042313
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / From: EA000001 / To: GA295023 		$224.45 1
3F975 LR042314
SENSOR - STEERING ROTATION
With Heated Steering Wheel / From: EA000001 / To: GA254376 		$140.48 1
3F975 LR034960
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / To: DA999999 		$345.06 1
3F975 LR034961
SENSOR - STEERING ROTATION
With Heated Steering Wheel / To: DA999999 		$405.44 1
3F975 LR101749
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / From: GA320131 / To: GA999999 		$395.41 1
3F975 LR101748
SENSOR - STEERING ROTATION
With Heated Steering Wheel / From: GA319410 / To: GA999999 		$319.62 1
3F975 LR101292
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / From: HA341932 		$374.31 1
3F975 LR101296
SENSOR - STEERING ROTATION
With Heated Steering Wheel / From: HA342106 		$382.67 1
3F975 LR086483
SENSOR - STEERING ROTATION
With Heated Steering Wheel / From: HA000001 / To: HA342105 		$411.71 1
3F975 LR084446
SENSOR - STEERING ROTATION
With Heated Steering Wheel / From: GA254377 / To: GA319409
IN STOCK 		$273.98 1
3F975 LR084445
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / From: GA295024 / To: GA320130 		$303.58 1
3F975 LR086482
SENSOR - STEERING ROTATION
Less Heated Steering Wheel / From: HA000001 / To: HA341931 		$411.71 1
11A668 LR034959
HOUSING - STEERING ANGLE SENSOR
Housing Assy / To: DA999999 		$98.67 1
11A668 LR042312
HOUSING - STEERING ANGLE SENSOR
With Heated Steering Wheel / Housing Assy / From: EA000001 / To: KA999999 		$80.24 1
11A668 LR042311
HOUSING - STEERING ANGLE SENSOR
Less Heated Steering Wheel / Housing Assy / From: EA000001 / To: KA999999 		$96.78 1
11A668 LR090991
HOUSING - STEERING ANGLE SENSOR
Housing Assy / From: LA000001 		$72.91 1
14K147A LR024626
SWITCH - DIRECTION INDICATOR
Less Front Fog Lamps / To: GA300347 		$203.78 1
14K147A LR024627
SWITCH - DIRECTION INDICATOR
With Front Fog Lamps / To: GA300347 		$132.26 1
14K147A LR125094
SWITCH - DIRECTION INDICATOR
Less Front Fog Lamps / From: GA300348 / To: KA999999 		$234.00 1
14K147A LR125104
SWITCH - DIRECTION INDICATOR
With Front Fog Lamps / From: LA000001 		$164.03 1
14K147A LR125105
SWITCH - DIRECTION INDICATOR
Less Front Fog Lamps / From: LA000001 		$172.12 1
14K147A LR125095
SWITCH - DIRECTION INDICATOR
With Front Fog Lamps / From: GA300348 / To: KA999999 		$278.79 1
14K147B LR024629
SWITCH - WASHER AND WIPER
Switch - Multifunction (Wiper) / To: KA557699 		$195.82 1
14K147B LR125107
SWITCH - WASHER AND WIPER
Switch - Multifunction (Wiper) / From: LA000001 		$230.87 1
14K147B LR125097
SWITCH - WASHER AND WIPER
Switch - Multifunction (Wiper) / From: KA557700 / To: KA999999 		$216.01 1
14018 LR041113
SWITCH - STEERING COLUMN ADJUST
Steering Column Adjust / To: EA182042 		$87.77 1
14018 LR058162
SWITCH - STEERING COLUMN ADJUST
Soft Feel Paint, Steering Column Adjust / From: EA182043 		$67.83 1
14018 LR071107
SWITCH - STEERING COLUMN ADJUST
For Hot Markets, Hard Coat Ebony Paint, Steering Column Adjust / From: GA000001 		$28.18 1
