Hybrid Electrical Modules (Inverter Cradle) (2.0L Aj200P Hi Phev, 8Hp Gen3 Hybrid Trans) ((V)...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Hybrid Electrical Modules (Inverter Cradle) (2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD $1.92 To Order
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.63 To Order
Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. $2.20 To Order
Photo Part No Description Price (each) Stock
LR101869 SHIELD - INVERTER $257.47 To Order
Photo Part No Description Price (each) Stock
LR101877 SHIELD - INVERTER $14.38 To Order
Photo Part No Description Price (each) Stock
LR102195 SHIELD - INVERTER $13.90 To Order
Photo Part No Description Price (each) Stock
LR101875 BRACKET - INVERTER $34.55 To Order
Photo Part No Description Price (each) Stock
LR101876 BRACKET - INVERTER $34.55 To Order
View All

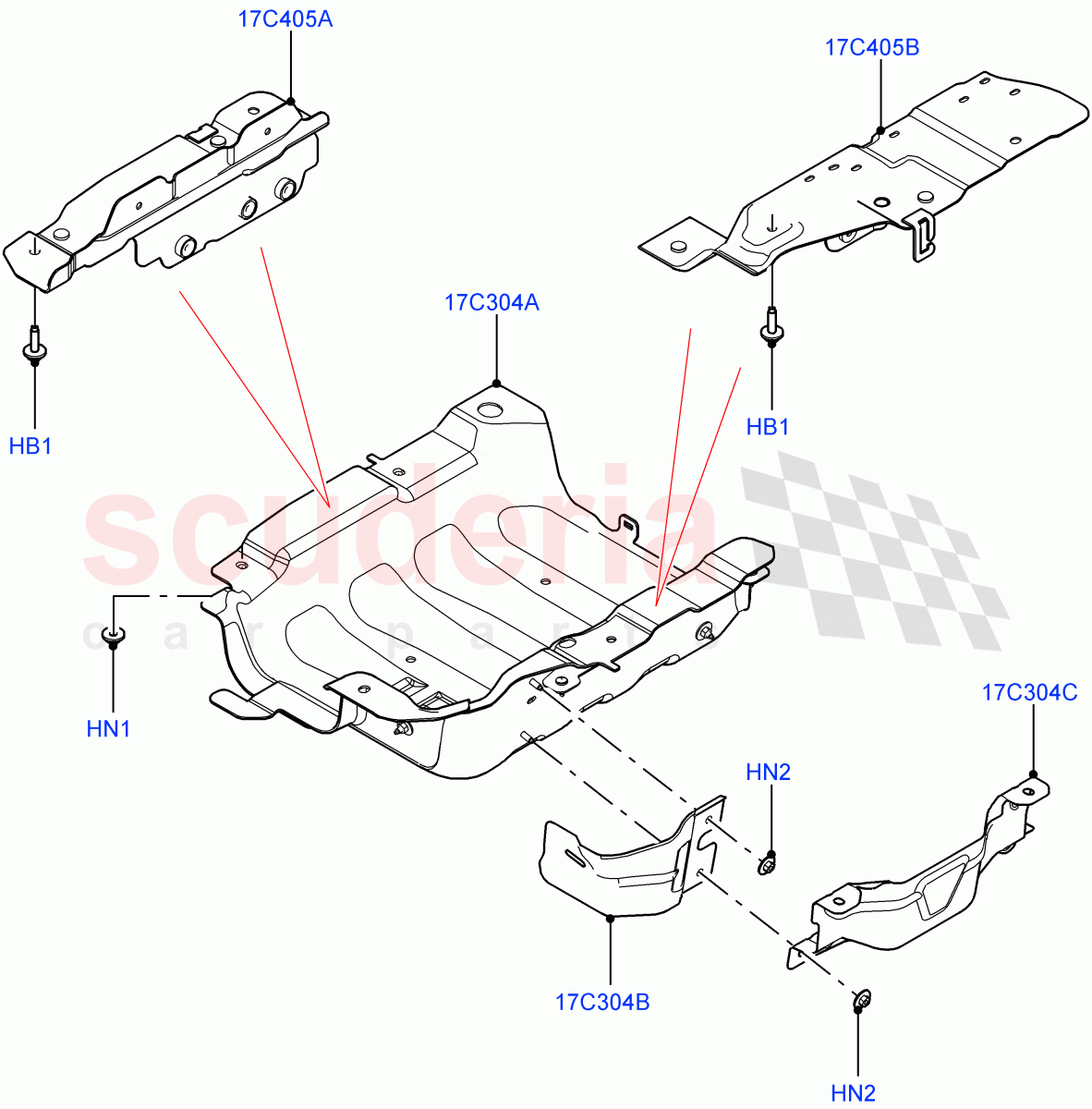

Hybrid Electrical Modules (Inverter Cradle) (2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR037087
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 30MM / From: JA000001 		$1.92 2
HN1 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer / From: JA000001 		$0.63 3
HN2 RYH500290
NUT AND WASHER - HEX.
M6 / From: JA000001 		$2.20 -
17C304A LR101869
SHIELD - INVERTER
From: JA000001 		$257.47 1
17C304B LR101877
SHIELD - INVERTER
Heatshield / From: JA000001 		$14.38 1
17C304C LR102195
SHIELD - INVERTER
Heatshield, Rear / From: JA000001 		$13.90 1
17C405A LR101875
BRACKET - INVERTER
RH / From: JA000001 		$34.55 1
17C405B LR101876
BRACKET - INVERTER
LH / From: JA000001 		$34.55 1
