Turbocharger (Compressed Air Recirculation And Shut Off Valve) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Turbocharger (Compressed Air Recirculation And Shut Off Valve) (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR038278 BRACKET - SUPPORT - SHUT OFF VALVE Enquire To Order
LR063919 BRACKET - SUPPORT - SHUT OFF VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR036486 HOSE - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR033284 KIT - ACTUATOR SHUT OFF VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR035450 VALVE - SHUT-OFF Enquire To Order
View All

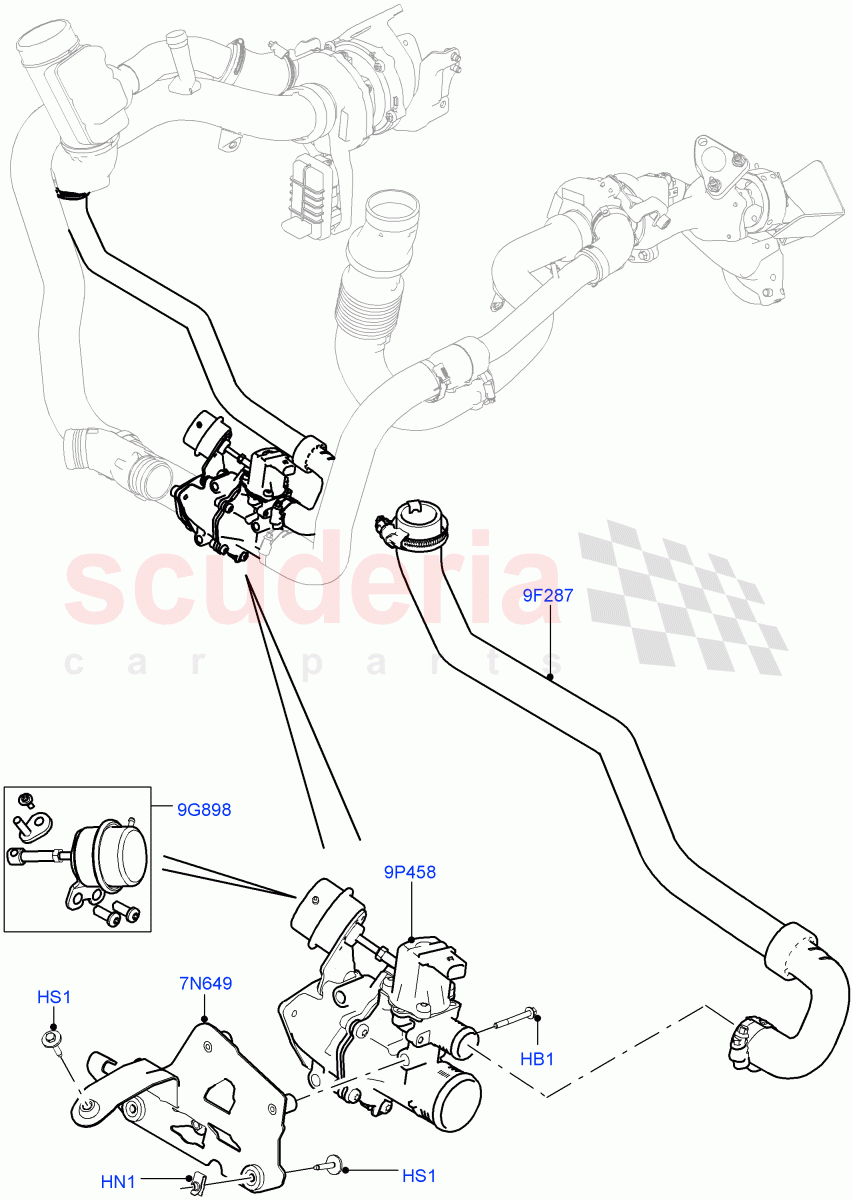

Turbocharger (Compressed Air Recirculation And Shut Off Valve) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106116
BOLT - HEX.HEAD
HEX Flange, M6 x 55MM, Shut Off Valve 		- 3 Enquire
HN1 LR000053
NUT - FLANGED
M6 		- 2 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Bracket, Hexagonal Head, M6X30, Shut Off Valve 		- 3 Enquire
7N649 LR038278
BRACKET - SUPPORT - SHUT OFF VALVE
Compressed Air Recirculation And Shut Off Valve / To: EA182174 		- 1 Enquire
7N649 LR063919
BRACKET - SUPPORT - SHUT OFF VALVE
Compressed Air Recirculation And Shut Off Valve / From: EA182175 		- 1 Enquire
9F287 LR036486
HOSE - AIR
Compressed Air Recirculation, From Valve To Air Inlet Hose 		- 1 Enquire
9G898 LR033284
KIT - ACTUATOR SHUT OFF VALVE
Compressed Air Recirculation And Shut Off Valve 		- 1 Enquire
9P458 LR035450
VALVE - SHUT-OFF
Compressed Air Recirculation, Shut Off Valve 		- 1 Enquire
