Turbocharger (LH Side - Secondary) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Turbocharger (LH Side - Secondary) (4.4L DOHC DITC V8 Diesel)

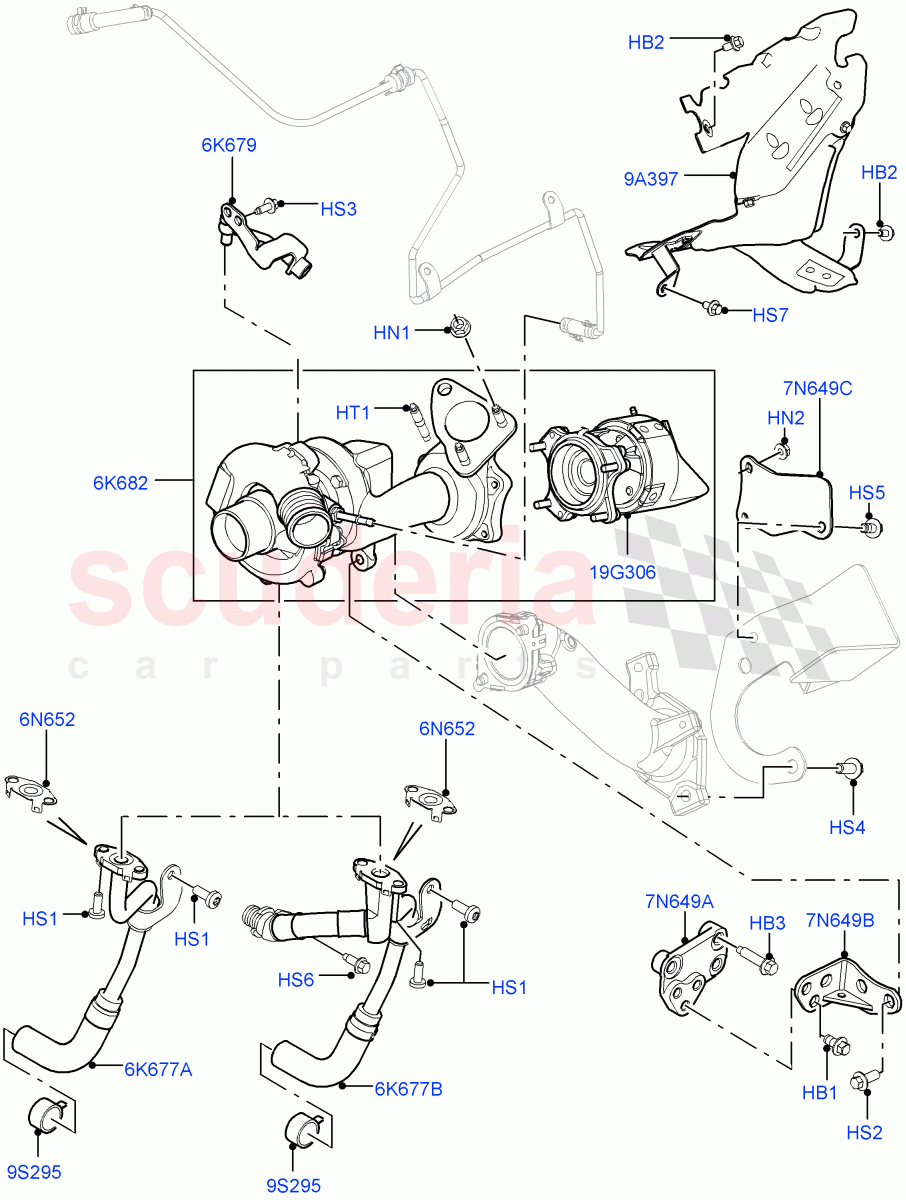

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023104	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014200	BOLT - HEX.HEAD	Enquire	To Order
	LR113014	BOLT - HEX.HEAD	Enquire	To Order
	LR105437	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYG500090	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038607	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYP500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004104	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166M	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500360	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	Enquire	To Order
	LR113358	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022788	PIPE - OIL FEED	Enquire	To Order
	LR066523	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044563	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022742	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036083	HEAT SHIELD - TURBOCHARGER	Enquire	To Order
	LR050536	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032136	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027196	KIT - TURBINE SHUT OFF VALVE	Enquire	To Order
	LR066428	KIT - TURBINE SHUT OFF VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035131	TUBE - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057901	TUBE - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022792	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022793	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027017	BRACKET - TURBOCHARGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR023104	BOLT	LR023104 BOLT HEX Flange, M8 X 16MM, Turbocharger Bracket	-	3	Enquire
HB2	LR014200	BOLT - HEX.HEAD	LR014200 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 10MM / To: HA367028	-	3	Enquire
HB2	LR113014	BOLT - HEX.HEAD	LR113014 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA386129	-	3	Enquire
HB2	LR105437	BOLT - HEX.HEAD	LR105437 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 8MM / From: HA367029 / To: JA386128	-	3	Enquire
HB3	QYG500090	BOLT - HEX.HEAD	QYG500090 BOLT - HEX.HEAD Hexagonal Head, M8 X 30, Turbocharger Bracket	-	3	Enquire
HN1	LR038607	NUT	LR038607 NUT Exhaust Manifold, HEX Flange, M8	-	3	Enquire
HN2	FN106042	NUT	FN106042 NUT HEX Flange, Hexagonal Head, M6	-	2	Enquire
HS1	TYP500030	SCREW	TYP500030 SCREW M6 X 16MM, Torx, Tube - Oil Return	-	3	Enquire
HS2	WYP000025	SCREW	WYP000025 SCREW HEX Flange, Hexagonal Head, M8 X 20MM, Turbocharger Bracket	-	2	Enquire
HS3	4408651	SCREW	4408651 SCREW HEX Flange, M6 X 14MM, Oil Tube Bracket	-	2	Enquire
HS4	LR004104	SCREW	LR004104 SCREW HEX Flange, M10 X 25MM	-	2	Enquire
HS5	FS108166M	SCREW	FS108166M SCREW HEX Flange, M8 X 16MM	-	1	Enquire
HS6	LR000622	SCREW	LR000622 SCREW Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, From Engine Serial Number 0031568, M6 x 12MM / From: EA143779	-	1	Enquire
HS7	KYP500360	SCREW	KYP500360 SCREW HEX Flange, M6 X 20MM	-	1	Enquire
HT1	LR113358	STUD	LR113358 STUD M8 X 16MM, M8 x 8MM / To: GA999999	-	3	Enquire
HT1	LR113358	STUD	LR113358 STUD M8 X 16MM, M8 x 8MM / From: HA000001	-	3	Enquire
6K677A	LR035131	TUBE - DRAIN	LR035131 TUBE - DRAIN LH, Up To Engine Serial Number 0031567, With Gasket	-	1	Enquire
6K677B	LR057901	TUBE - DRAIN	LR057901 TUBE - DRAIN LH, From Engine Serial Number 0031568, With Gasket	-	1	Enquire
6K679	LR022788	PIPE - OIL FEED	LR022788 PIPE - OIL FEED LH / To: EA999999	-	1	Enquire
6K679	LR066523	PIPE - OIL FEED	LR066523 PIPE - OIL FEED LH / From: FA000001	-	1	Enquire
6K682	LR044563	TURBOCHARGER	LR044563 TURBOCHARGER LH, Connection Between Turbocharger And Exhaust Manifold Does Not Require Gasket, Secondary	-	1	Enquire
6N652	LR022742	GASKET - OIL TUBE	LR022742 GASKET - OIL TUBE Tube - Oil Return	-	1	Enquire
7N649A	LR022792	BRACKET - TURBOCHARGER	LR022792 BRACKET - TURBOCHARGER Turbocharger	-	1	Enquire
7N649B	LR022793	BRACKET - TURBOCHARGER	LR022793 BRACKET - TURBOCHARGER Turbocharger	-	1	Enquire
7N649C	LR027017	BRACKET - TURBOCHARGER	LR027017 BRACKET - TURBOCHARGER Downpipe	-	1	Enquire
9A397	LR036083	HEAT SHIELD - TURBOCHARGER	LR036083 HEAT SHIELD - TURBOCHARGER LH, Turbocharger / To: EA130091	-	1	Enquire
9A397	LR050536	HEAT SHIELD - TURBOCHARGER	LR050536 HEAT SHIELD - TURBOCHARGER LH, Turbocharger / From: EA130092	-	1	Enquire
9S295	LR032136	CLAMP - HOSE	LR032136 CLAMP - HOSE Oil Return	-	1	Enquire
19G306	LR027196	KIT - TURBINE SHUT OFF VALVE	LR027196 KIT - TURBINE SHUT OFF VALVE Service Kit, Turbine Shut Off Valve / To: EA999999	-	1	Enquire
19G306	LR066428	KIT - TURBINE SHUT OFF VALVE	LR066428 KIT - TURBINE SHUT OFF VALVE Service Kit, Turbine Shut Off Valve / From: FA000001	-	1	Enquire
