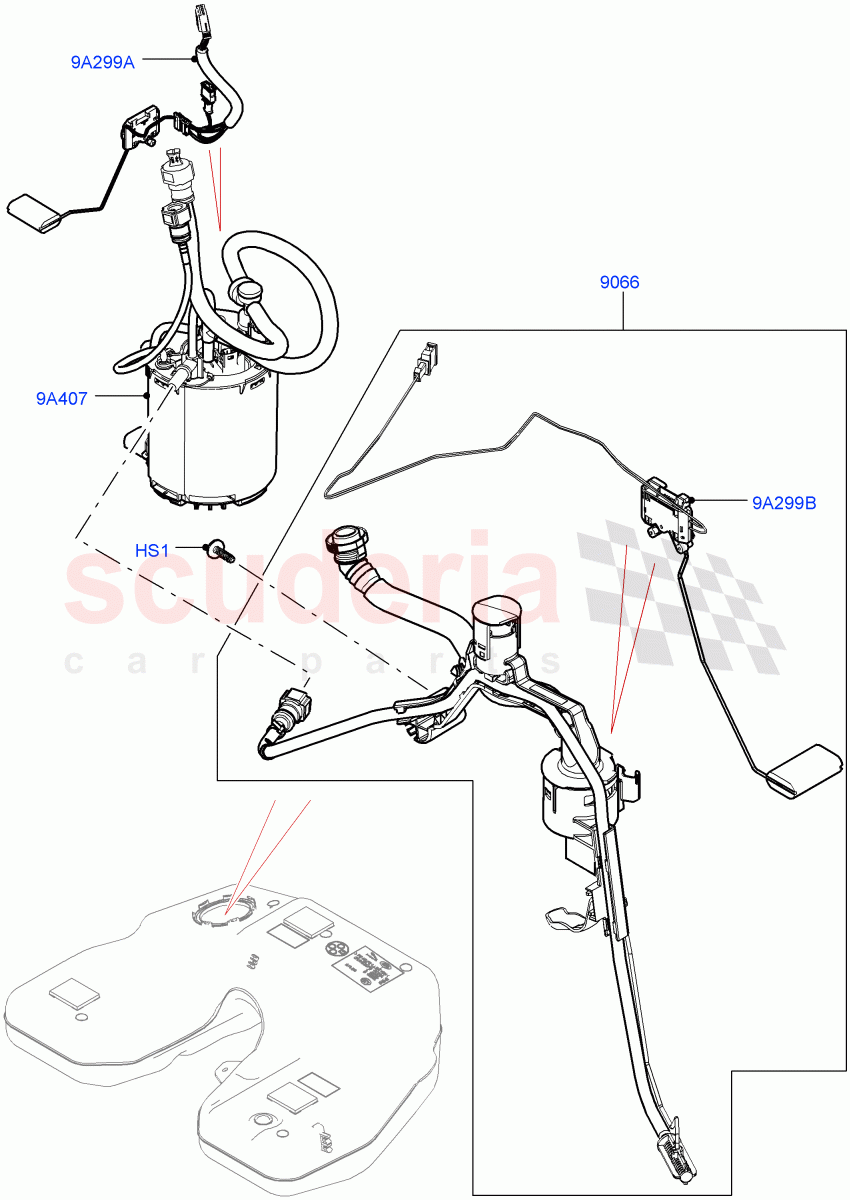

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038710	SCREW - SELF-TAPPING	$2.57	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036704	PUMP - FUEL	$551.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036702	SENDER - FUEL TANK	$190.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050479	SENDER - FUEL TANK	$163.80	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR038710	SCREW - SELF-TAPPING	LR038710 SCREW - SELF-TAPPING M6 x 12MM	$2.57	1
9A299A	LR036702	SENDER - FUEL TANK	LR036702 SENDER - FUEL TANK RH	$190.08	1
9A299B	LR050479	SENDER - FUEL TANK	LR050479 SENDER - FUEL TANK LH	$163.80	1
9A407	LR036704	PUMP - FUEL	LR036704 PUMP - FUEL	$551.20	1
9066	LR038160	SENSOR - FUEL LEVEL	LR038160 SENSOR - FUEL LEVEL To: DA999999	$351.15	1
9066	LR049992	SENSOR - FUEL LEVEL	LR049992 SENSOR - FUEL LEVEL From: EA000001 / To: EA999999	$332.48	1
9066	LR061453	SENSOR - FUEL LEVEL	LR061453 SENSOR - FUEL LEVEL From: GA000001 / To: GA999999	$652.47	1
9066	LR079269	Sensor - Fuel Level	LR079269 Sensor - Fuel Level From: FA000001 / To: FA999999	-	1	Enquire
