Turbocharger (Rh Side - Primary) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] - Turbocharger (RH Side - Primary) (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD Enquire To Order
LR113014 BOLT - HEX.HEAD Enquire To Order
LR105437 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR023099 BOLT - BANJO Enquire To Order
Photo Part No Description Price (each) Stock
LR023104 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR008026 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR023967 BOLT - BANJO Enquire To Order
Photo Part No Description Price (each) Stock
LR038607 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR124504 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
TYP500030 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4408651 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000622 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500960 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR113358 STUD Enquire To Order
LR113358 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR008722 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR023098 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR023050 GASKET - TURBOCHARGER COOLING Enquire To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR035130 TUBE - DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR038044 TURBOCHARGER Enquire To Order
LR049593 TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
LR022742 GASKET - OIL TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR022794 BRACKET - COOLING HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR038153 HOSE - WATER INLET Enquire To Order
LR045240 HOSE - WATER INLET Enquire To Order
LR057381 HOSE - WATER INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR038547 HEAT SHIELD - TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
LR032136 CLAMP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR134884 KIT - ACTUATOR SHUT OFF VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR066524 PIPE - OIL FEED Enquire To Order
LR066524 PIPE - OIL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR036530 PIPE - OIL FEED Enquire To Order
LR066536 PIPE - OIL FEED Enquire To Order
View All

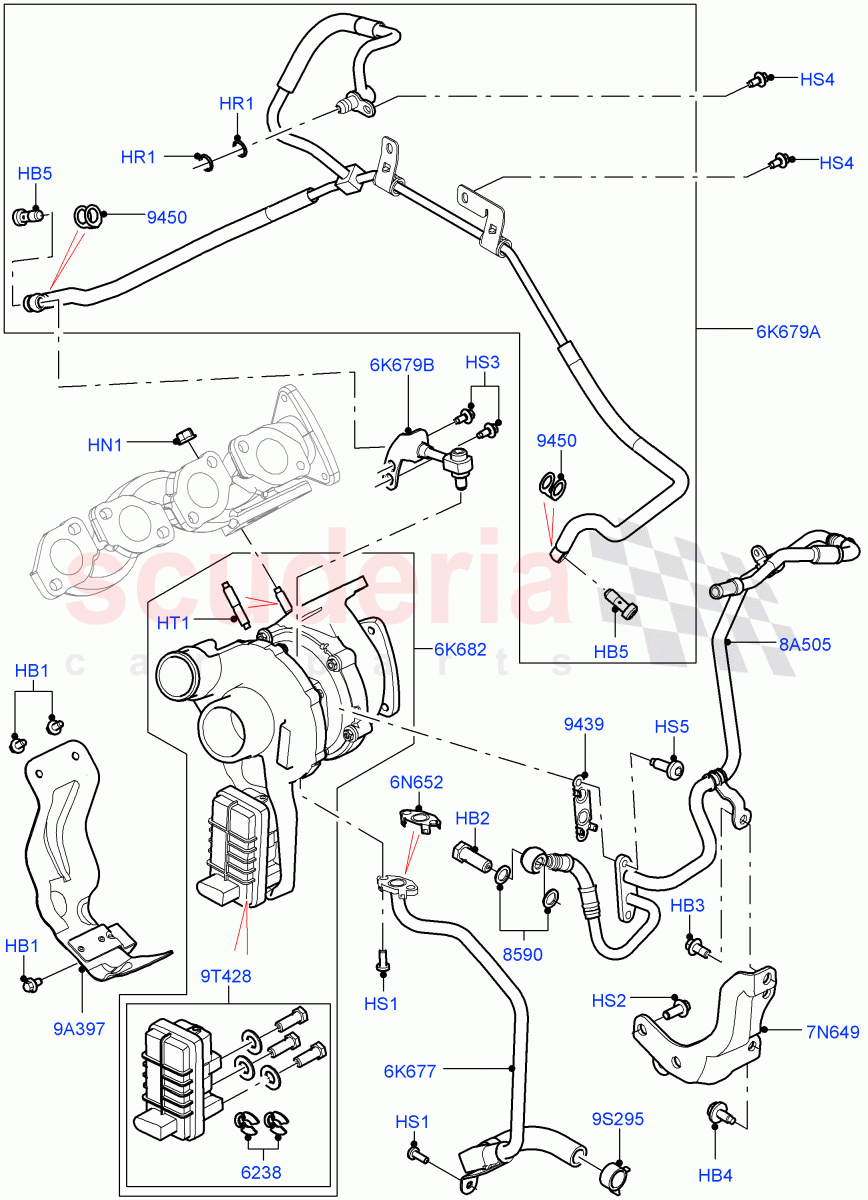

Turbocharger (RH Side - Primary) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / To: HA367028 		- 3 Enquire
HB1 LR113014
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA386129 		- 3 Enquire
HB1 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / From: HA367029 / To: JA386128 		- 3 Enquire
HB2 LR023099
BOLT - BANJO
Banjo Bolt 		- 1 Enquire
HB3 LR023104
BOLT
Bracket, M8 X 16MM 		- 2 Enquire
HB4 LR008026
BOLT
Bolt And Washer, M8 X 17MM 		- 1 Enquire
HB5 LR023967
BOLT - BANJO
Banjo Bolt, Hexagonal Head, Service Part May Differ From Production, Turbocharger Oil Feed 		- 2 Enquire
HN1 LR038607
NUT
Exhaust Manifold, HEX Flange, M8 		- 3 Enquire
HR1 LR124504
O-RING 		- 2 Enquire
HS1 TYP500030
SCREW
M6 X 16MM, Torx, Tube - Oil Return 		- 3 Enquire
HS2 WYP000025
SCREW
HEX Flange, Hexagonal Head, M8 X 20MM, Turbocharger Bracket 		- 2 Enquire
HS3 4408651
SCREW
HEX Flange, M6 X 14MM, Oil Tube Bracket 		- 2 Enquire
HS4 LR000622
SCREW
M6 x 12MM 		- 3 Enquire
HS5 RYP500960
SCREW
M6 X 16MM, Torx 		- 2 Enquire
HT1 LR113358
STUD
M8 X 16MM, M8 x 8MM / To: GA999999 		- 3 Enquire
HT1 LR113358
STUD
M8 X 16MM, M8 x 8MM / From: HA000001 		- 3 Enquire
6K677 LR035130
TUBE - DRAIN
RH 		- 1 Enquire
6K679A LR066524
PIPE - OIL FEED
Centre / To: EA999999 		- 1 Enquire
6K679A LR066524
PIPE - OIL FEED
Centre / From: FA000001 		- 1 Enquire
6K679B LR036530
PIPE - OIL FEED
RH / To: EA999999 		- 1 Enquire
6K679B LR066536
PIPE - OIL FEED
RH / From: FA000001 		- 1 Enquire
6K682 LR038044
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Primary 		- 1 Enquire
6K682 LR049593
TURBOCHARGER
RH, Primary, Remanufactured Part 		- 1 Enquire
6N652 LR022742
GASKET - OIL TUBE
Tube - Oil Return 		- 1 Enquire
7N649 LR022794
BRACKET - COOLING HOSE
For Turbocharger Cooling Hose 		- 1 Enquire
8A505 LR038153
HOSE - WATER INLET
Cooling For Turbocharger / To: DA105107 		- 1 Enquire
8A505 LR045240
HOSE - WATER INLET
Cooling For Turbocharger / From: DA105108 / To: EA152228 		- 1 Enquire
8A505 LR057381
HOSE - WATER INLET
Cooling For Turbocharger / From: EA152229 		- 1 Enquire
9A397 LR038547
HEAT SHIELD - TURBOCHARGER
Turbocharger 		- 1 Enquire
9S295 LR032136
CLAMP - HOSE
Oil Return 		- 1 Enquire
9T428 LR134884
KIT - ACTUATOR SHUT OFF VALVE 		- 1 Enquire
6238 LR008722
CLIP - SPECIAL 		- 2 Enquire
8590 LR023098
WASHER - SEALING
Banjo Bolt 		- 2 Enquire
9439 LR023050
GASKET - TURBOCHARGER COOLING
For Turbocharger Cooling Hose 		- 1 Enquire
9450 1372726
GASKET - OIL TUBE
Banjo Washer 		- 2 Enquire
