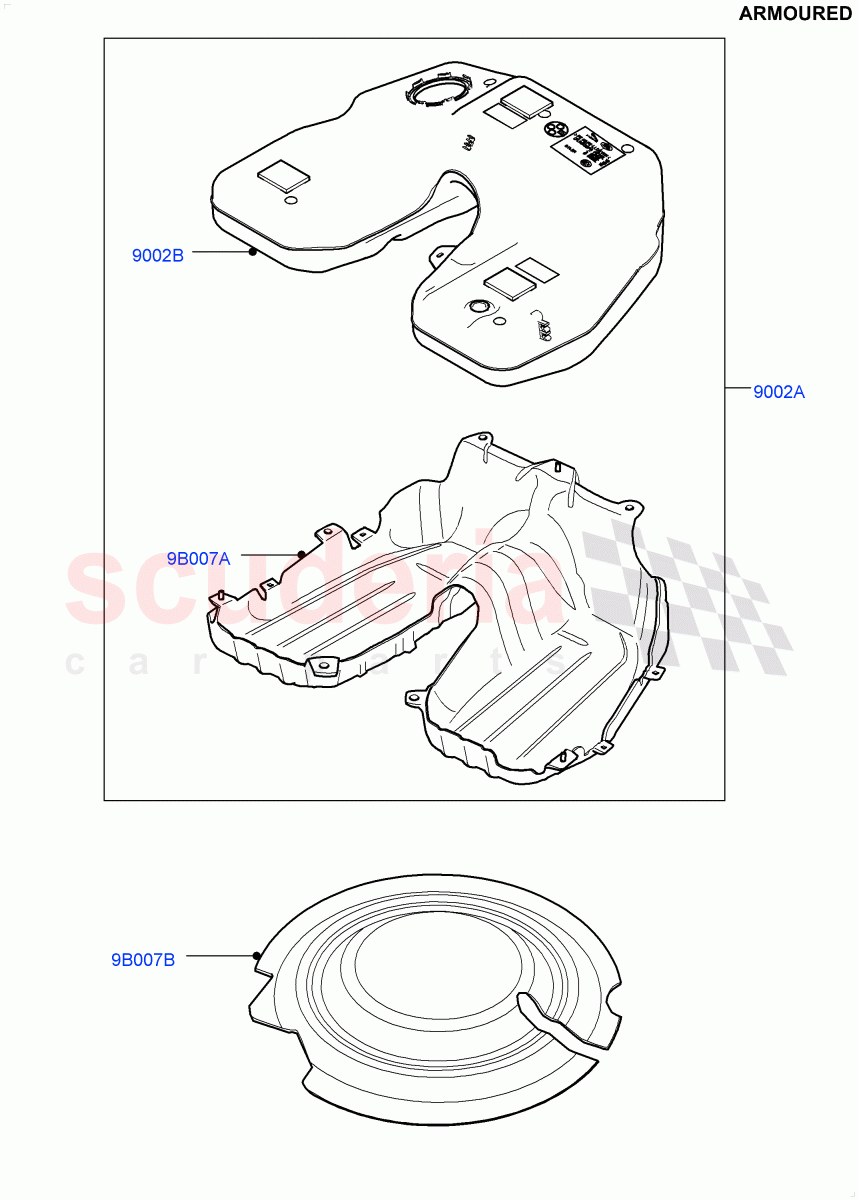

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR090845	SHIELD - FUEL TANK	$795.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077941	TANK - FUEL	$466.41	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
9B007A	LR090845	SHIELD - FUEL TANK	LR090845 SHIELD - FUEL TANK Fuel Tank / From: EA000001	$795.36	1
9B007B	LR077941	TANK - FUEL	LR077941 TANK - FUEL From: EA000001	$466.41	1
9002A	LR090846	Tank - Fuel	LR090846 Tank - Fuel Complete Assembly / From: EA000001 / To: FA999999	-	1	Enquire
9002A	LR122301	TANK - FUEL	LR122301 TANK - FUEL Complete Assembly / From: JA000001	$13,794.12	1
9002A	LR122300	Tank - Fuel	LR122300 Tank - Fuel Complete Assembly / From: GA000001 / To: HA999999	-	1	Enquire
9002B	LR057713	TANK - FUEL	LR057713 TANK - FUEL From: EA000001 / To: FA999999	$12,172.04	1
9002B	LR122303	TANK - FUEL	LR122303 TANK - FUEL From: JA000001	$12,240.21	1
9002B	LR122302	Tank - Fuel	LR122302 Tank - Fuel From: GA000001 / To: HA999999	-	1	Enquire
