Fuel Lines (Front) (3.0L DOHC GDI SC V6 PETROL, (+) "CDN/USA", Flex Fuel - E100, (+) "KOR") of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Front) (3.0L DOHC GDI SC V6 PETROL, (+) "CDN/USA", Flex Fuel - E100, (+) "KOR")

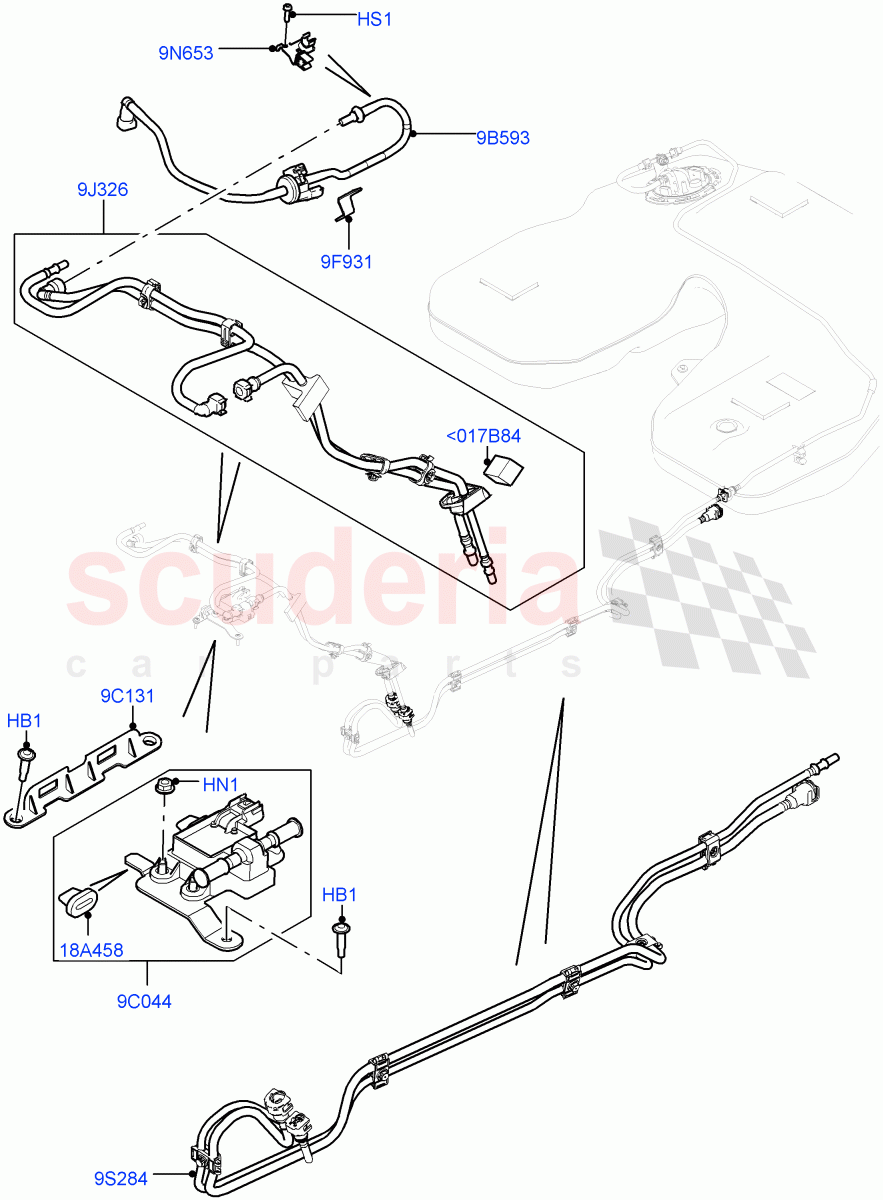

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010749	VALVE - FUEL VAPOUR	Enquire	To Order
	LR172648	Valve - Fuel Vapour	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042488	SENSOR - FUEL QUALITY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042509	BRACKET - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011563	BRACKET - FUEL VAPOUR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042476	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048475	BRACKET - FUEL LINES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048110	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order
	LR055691	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order
	LR053247	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR044591	GROMMET - ADAPTOR TO BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM From: EA000001	-	1	Enquire
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx / From: EA000001	-	3	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: EA000001	-	3	Enquire
HS1	LR010904	SCREW	LR010904 SCREW M6 X 20MM / From: EA000001	-	1	Enquire
9B593	LR010749	VALVE - FUEL VAPOUR	LR010749 VALVE - FUEL VAPOUR From: EA000001 / To: NA472163	-	1	Enquire
9B593	LR172648	Valve - Fuel Vapour	LR172648 Valve - Fuel Vapour From: NA472164	-	1	Enquire
9C044	LR042488	SENSOR - FUEL QUALITY	LR042488 SENSOR - FUEL QUALITY Sensor - Fuel Quality / From: EA000001	-	1	Enquire
9C131	LR042509	BRACKET - FUEL COOLER	LR042509 BRACKET - FUEL COOLER Sensor - Fuel Quality / From: EA000001	-	1	Enquire
9F931	LR011563	BRACKET - FUEL VAPOUR VALVE	LR011563 BRACKET - FUEL VAPOUR VALVE Fuel Vapour Valve / From: EA000001	-	1	Enquire
9J326	LR042476	TUBE - FUEL FEED	LR042476 TUBE - FUEL FEED Return, Set Of 2 Pieces, Supply / From: EA000001	-	1	Enquire
9N653	LR048475	BRACKET - FUEL LINES	LR048475 BRACKET - FUEL LINES Fuel Vapour Valve / From: EA000001	-	1	Enquire
9S284	LR048110	TUBE - FUEL SUPPLY AND VAPOUR	LR048110 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: EA137631	-	1	Enquire
9S284	LR055691	TUBE - FUEL SUPPLY AND VAPOUR	LR055691 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA137632 / To: GA293868	-	1	Enquire
9S284	LR053247	TUBE - FUEL SUPPLY AND VAPOUR	LR053247 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: GA287638	-	1	Enquire
9S284	LR086376	TUBE - FUEL SUPPLY AND VAPOUR	LR086376 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: GA287639 / To: GA999999	-	1	Enquire
9S284	LR086376	TUBE - FUEL SUPPLY AND VAPOUR	LR086376 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: HA000001	-	1	Enquire
9S284	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	LR086375 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: GA293869	-	1	Enquire
18A458	LR044591	GROMMET - ADAPTOR TO BRACKET	LR044591 GROMMET - ADAPTOR TO BRACKET Sensor - Fuel Quality / From: EA000001	-	1	Enquire
