Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500820 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FS105166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WJ110007L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR053782 SPACER - FUEL TANK MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR036645 TANK - FUEL Enquire To Order
LR079270 TANK - FUEL Enquire To Order
LR058292 TANK-FUEL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR181511 CAP - FUEL TANK FILLER Enquire To Order
LR053665 CAP - FUEL TANK FILLER Enquire To Order
LR053664 CAP - FUEL TANK FILLER Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051671 PIPE - FUEL FILLER Enquire To Order
LR051674 PIPE - FUEL FILLER Enquire To Order
LR062455 PIPE - FUEL FILLER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051675 HOSE - FILLER PIPE Enquire To Order
LR051676 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR037481 TUBE - FUEL VAPOUR Enquire To Order
LR053462 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR048891 COVER - FUEL SENDER Enquire To Order
LR124692 COVER - FUEL SENDER Enquire To Order
Photo Part No Description Price (each) Stock
LR048108 SHIELD - FUEL TANK Enquire To Order
LR054812 SHIELD - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR049224 TUBE - FUEL Enquire To Order
LR086522 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR041099 RING - RETAINING Enquire To Order
LR079272 RING - RETAINING Enquire To Order
LR087019 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR015356 SENSOR - FUEL INJECTOR PRESSURE Enquire To Order
View All

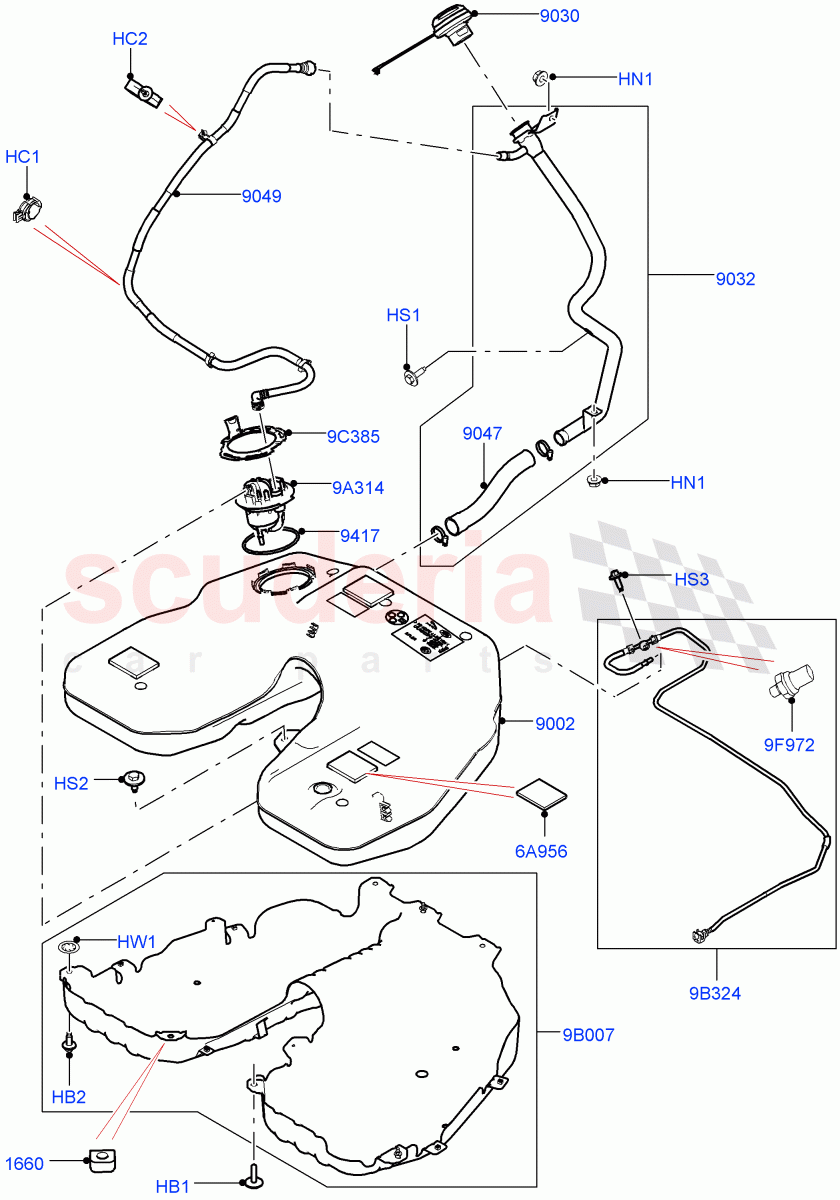

Fuel Tank & Related Parts (3.0L DOHC GDI SC V6 PETROL) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM / From: EA000001 		- 4 Enquire
HB2 LR037935
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 X 25MM / From: EA000001 		- 3 Enquire
HC1 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic / From: EA000001 		- 1 Enquire
HC2 LR094032
CLIP - HOSE
Plastic, Upper 		- 2 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001 		- 2 Enquire
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: EA000001 		- 2 Enquire
HS2 RYG500820
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: EA000001 		- 2 Enquire
HS3 FS105166
SCREW
HEX Flange, M5 X 16MM / From: EA000001 		- 1 Enquire
HW1 WJ110007L
WASHER
10MM, Fuel Tank, Shield / From: EA000001 		- 3 Enquire
6A956 LR025789
FOAM PAD - ENERGY ABSORBING
100mm x 80mm x 10mm 		- 3 Enquire
9A314 LR048891
COVER - FUEL SENDER
From: EA000001 / To: EA999999 		- 1 Enquire
9A314 LR124692
COVER - FUEL SENDER
From: FA000001 / To: GA999999 		- 1 Enquire
9B007 LR048108
SHIELD - FUEL TANK
Protective / From: EA000001 / To: EA152724 		- 1 Enquire
9B007 LR054812
SHIELD - FUEL TANK
Protective / From: EA152725 		- 1 Enquire
9B324 LR049224
TUBE - FUEL
Feed / From: EA000001 / To: GA999999 		- 1 Enquire
9B324 LR086522
TUBE - FUEL
Feed / From: HA000001 		- 1 Enquire
9C385 LR041099
RING - RETAINING
Cover / From: EA000001 / To: FA999999 		- 1 Enquire
9C385 LR079272
RING - RETAINING
Cover / From: GA000001 / To: GA999999 		- 1 Enquire
9C385 LR087019
RING - RETAINING
Cover / From: HA000001 		- 1 Enquire
9F972 LR015356
SENSOR - FUEL INJECTOR PRESSURE
From: EA000001 		- 1 Enquire
1660 LR053782
SPACER - FUEL TANK MOUNTING
Long Wheelbase / Fuel Tank / From: EA000001 		- 2 Enquire
9002 LR036645
TANK - FUEL
To: EA144459 		- 1 Enquire
9002 LR079270
TANK - FUEL
From: FA243284 / To: GA999999 		- 1 Enquire
9002 LR058292
TANK-FUEL
From: EA144460 / To: EA196785 		- 1 Enquire
9002 LR069000
TANK - FUEL
From: EA196786 / To: FA243283 		- 1 Enquire
9002 LR086524
TANK - FUEL
From: HA000001 		- 1 Enquire
9030 LR181511
CAP - FUEL TANK FILLER
From: EA000001 / To: EA134281 		- 1 Enquire
9030 LR053665
CAP - FUEL TANK FILLER
(-)"CDN/USA", Less FFV-(Ethanol) Fuel / From: EA134282 / To: GA999999 		- 1 Enquire
9030 LR053664
CAP - FUEL TANK FILLER
(+)"CDN/USA", Flex Fuel - E100 / From: EA137632 / To: EA999999 		- 1 Enquire
9030 LR042474
CAP - FUEL TANK FILLER
(+)"CDN/USA", Flex Fuel - E100 / From: EA134282 / To: EA137631 		- 1 Enquire
9030 LR062454
CAP - FUEL TANK FILLER
(+)"CDN/USA" / From: FA000001 / To: GA300340 		- 1 Enquire
9030 202123475
CAP - FUEL TANK FILLER
Narrow Filler Neck - Unleaded / From: GA300341 / To: MA419659 		- 1 Enquire
9030 LR053665
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: HA000001 / To: MA421250 		- 1 Enquire
9030 LR138720
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: MA419660 		- 1 Enquire
9030 LR138718
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: MA421251 		- 1 Enquire
9032 LR051671
PIPE - FUEL FILLER
(-)"CDN/MEX/USA", For Unleaded Fuel, Fuel Tank Filler Neck - Unleaded / From: EA000001 		- 1 Enquire
9032 LR051674
PIPE - FUEL FILLER
(+)"CDN/MEX/USA", Narrow Filler Neck - Unleaded / From: EA000001 / To: EA999999 		- 1 Enquire
9032 LR062455
PIPE - FUEL FILLER
Narrow Filler Neck - Unleaded / From: FA000001 / To: HA349204 		- 1 Enquire
9032 LR095804
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: HA349205 		- 1 Enquire
9047 LR051675
HOSE - FILLER PIPE
(+)"CDN/MEX/USA", Narrow Filler Neck - Unleaded / From: EA000001 		- 1 Enquire
9047 LR051676
HOSE - FILLER PIPE
(-)"CDN/MEX/USA", Fuel Tank Filler Neck - Unleaded / From: EA000001 		- 1 Enquire
9049 LR037481
TUBE - FUEL VAPOUR
(-)"CDN/MEX/USA" / From: EA000001 / To: EA132813 		- 1 Enquire
9049 LR053462
TUBE - FUEL VAPOUR
(-)"CDN/MEX/USA" / From: EA132814 		- 1 Enquire
9417 LR117476
GASKET
Cover, O-Ring / From: EA000001 		- 1 Enquire
