Name: Fuel Lines (Front) (3.0L DOHC GDI SC V6 PETROL, (-) "CDN/USA", Less FFV- (Ethanol) Fuel, (-) "KOR")
Rating: 5.0 (1 reviews)

Fuel Lines (Front) (3.0L DOHC GDI SC V6 PETROL, (-) "CDN/USA", Less FFV- (Ethanol) Fuel, (-) "KOR") of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Front) (3.0L DOHC GDI SC V6 PETROL, (-) "CDN/USA", Less FFV- (Ethanol) Fuel, (-) "KOR")

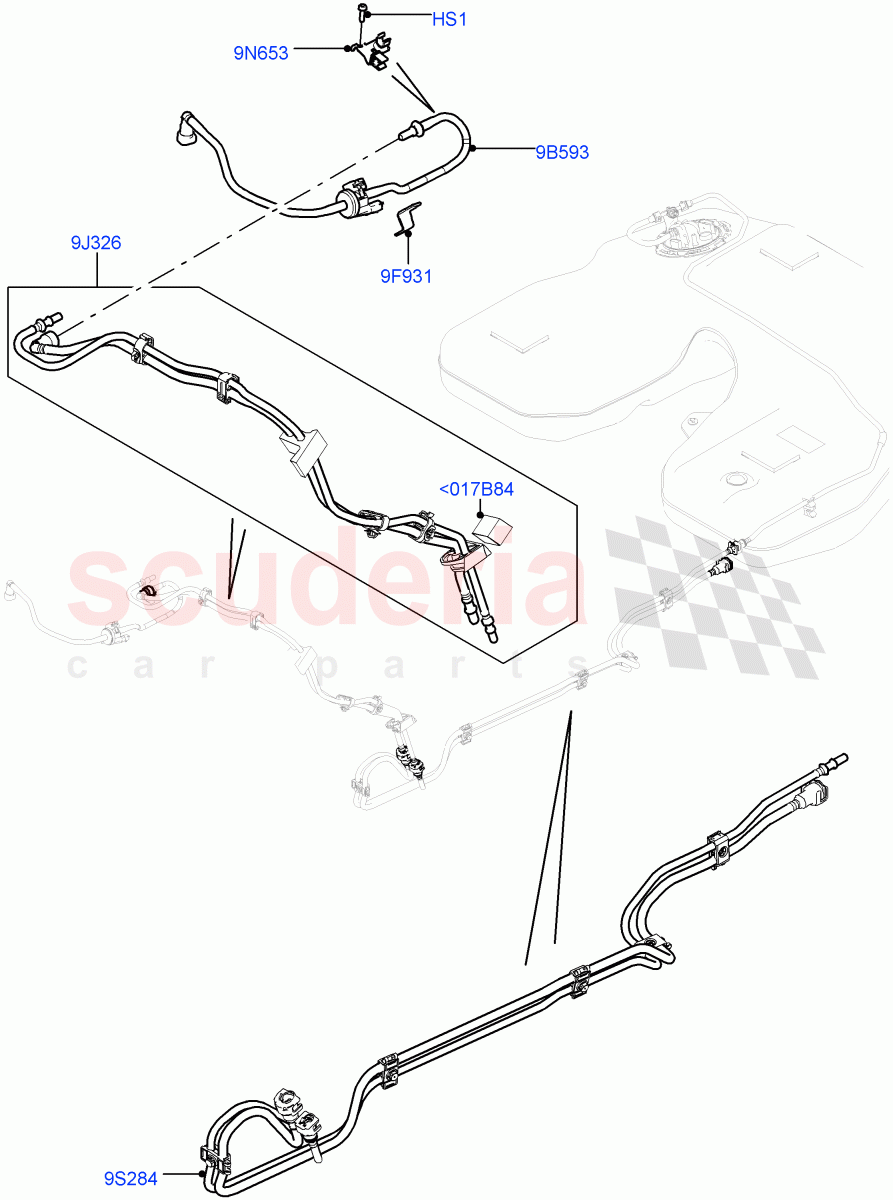

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010749	VALVE - FUEL VAPOUR	$166.29	To Order
	LR172648	Valve - Fuel Vapour	$173.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011563	BRACKET - FUEL VAPOUR VALVE	$12.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048109	PIPE - FUEL	$96.59	To Order
	LR088540	PIPE - FUEL	$245.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048475	BRACKET - FUEL LINES	$13.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048110	TUBE - FUEL SUPPLY AND VAPOUR	$94.30	To Order
	LR055691	TUBE - FUEL SUPPLY AND VAPOUR	$98.98	To Order
	LR053247	TUBE - FUEL SUPPLY AND VAPOUR	$277.87	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR044464	PAD - FOAM	$28.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	LR044464	PAD - FOAM	LR044464 PAD - FOAM From: EA000001	$28.18	1
HS1	LR010904	SCREW	LR010904 SCREW M6 X 20MM / From: EA000001	$1.19	1
9B593	LR010749	VALVE - FUEL VAPOUR	LR010749 VALVE - FUEL VAPOUR From: EA000001 / To: NA472163	$166.29	1
9B593	LR172648	Valve - Fuel Vapour	LR172648 Valve - Fuel Vapour From: NA472164	$173.01	1
9F931	LR011563	BRACKET - FUEL VAPOUR VALVE	LR011563 BRACKET - FUEL VAPOUR VALVE Fuel Vapour Valve / From: EA000001	$12.22	1
9J326	LR048109	PIPE - FUEL	LR048109 PIPE - FUEL Return, Set Of 2 Pieces, Supply / From: EA000001 / To: GA311792	$96.59	1
9J326	LR088540	PIPE - FUEL	LR088540 PIPE - FUEL Return, Set Of 2 Pieces, Supply / From: GA311793	$245.88	1
9N653	LR048475	BRACKET - FUEL LINES	LR048475 BRACKET - FUEL LINES Fuel Vapour Valve / From: EA000001	$13.43	1
9S284	LR048110	TUBE - FUEL SUPPLY AND VAPOUR	LR048110 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: EA137631	$94.30	1
9S284	LR055691	TUBE - FUEL SUPPLY AND VAPOUR	LR055691 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: EA137632 / To: GA293868	$98.98	1
9S284	LR053247	TUBE - FUEL SUPPLY AND VAPOUR	LR053247 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: EA000001 / To: GA287638	$277.87	1
9S284	LR086376	TUBE - FUEL SUPPLY AND VAPOUR	LR086376 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: GA287639 / To: GA999999	$272.84	1
9S284	LR086376	TUBE - FUEL SUPPLY AND VAPOUR	LR086376 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear, Set Of 2 Pieces / From: HA000001	$272.84	1
9S284	LR086375	TUBE - FUEL SUPPLY AND VAPOUR	LR086375 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear, Set Of 2 Pieces / From: GA293869	$128.76	1

Fuel Lines (Front) (3.0L Dohc Gdi Sc V6 Petrol, (-) "Cdn/Usa", Less Ffv- (Ethanol) Fuel, (-) "Kor")

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Front) (3.0L DOHC GDI SC V6 PETROL, (-) "CDN/USA", Less FFV- (Ethanol) Fuel, (-) "KOR")
