Thermostat/Housing & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Thermostat/Housing & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)

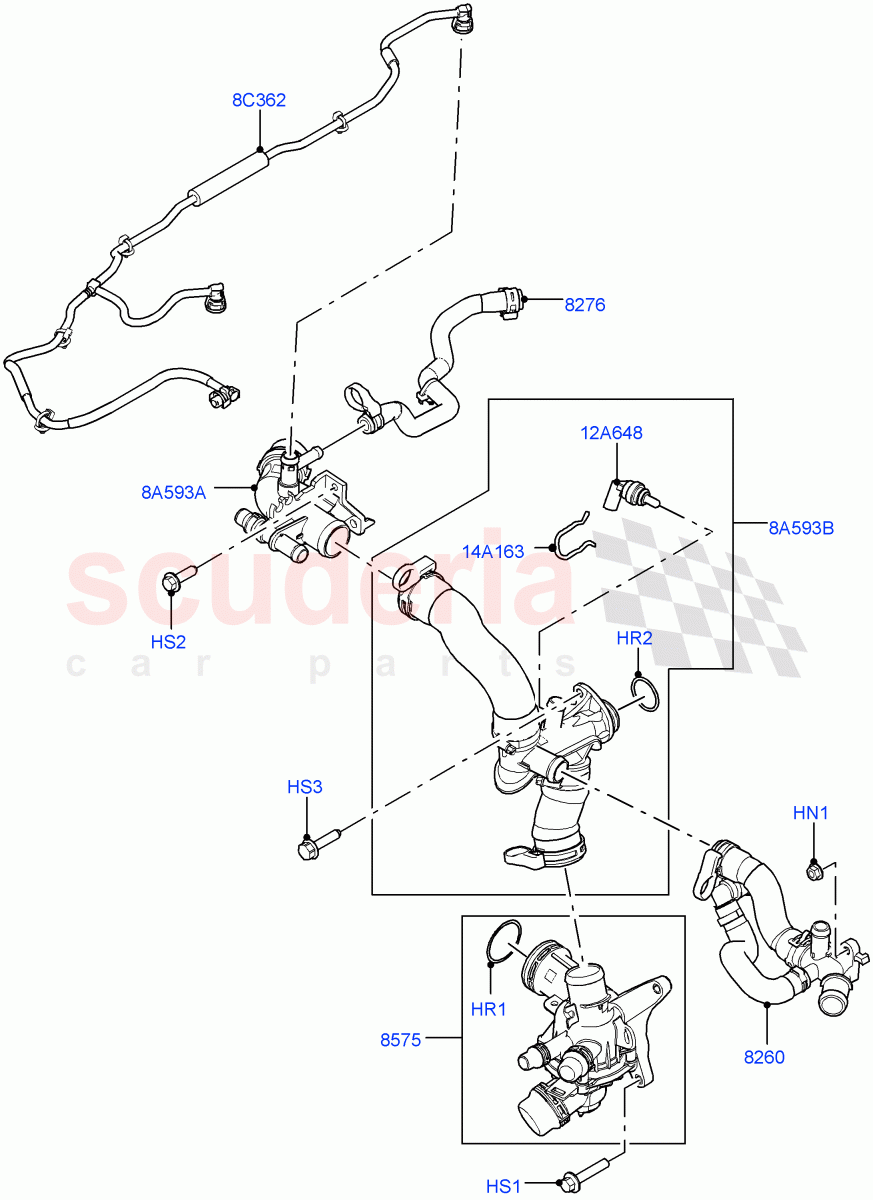

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166310	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165911	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128486	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125475	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125473	HOSE - COOLANT BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125484	THERMOSTAT AND HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140898	HOSE - RADIATOR VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125486	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125485	TUBE - BY-PASS	Enquire	To Order
	LR169156	TUBE - BY-PASS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: MA000001	-	1	Enquire
HR1	LR166310	O-RING	LR166310 O-RING To Thermostat / From: MA000001	-	1	Enquire
HR2	LR165911	O-RING	LR165911 O-RING Hose / From: MA000001	-	1	Enquire
HS1	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: MA000001	-	2	Enquire
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: MA000001	-	2	Enquire
HS3	LR128486	SCREW	LR128486 SCREW M6 x 25MM / From: MA000001	-	2	Enquire
8A593A	LR125486	TUBE - BY-PASS	LR125486 TUBE - BY-PASS Top / From: MA000001	-	1	Enquire
8A593B	LR125485	TUBE - BY-PASS	LR125485 TUBE - BY-PASS Transfer Rail / From: MA000001 / To: MA327325	-	1	Enquire
8A593B	LR169156	TUBE - BY-PASS	LR169156 TUBE - BY-PASS Transfer Rail / From: MA327326	-	1	Enquire
8C362	LR140898	HOSE - RADIATOR VENTILATION	LR140898 HOSE - RADIATOR VENTILATION To Expansion Tank / From: MA000001	-	1	Enquire
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE From: MA000001	-	1	Enquire
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP From: MA000001	-	1	Enquire
8260	LR125475	HOSE - COOLING SYSTEM	LR125475 HOSE - COOLING SYSTEM Tube Water By-Pass / From: MA000001	-	1	Enquire
8276	LR125473	HOSE - COOLANT BLEED	LR125473 HOSE - COOLANT BLEED To Engine / From: MA000001	-	1	Enquire
8575	LR125484	THERMOSTAT AND HOUSING	LR125484 THERMOSTAT AND HOUSING From: MA000001	-	1	Enquire
