Cooling System Pipes And Hoses (3.0L Aj20D6 Diesel High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
LR140894 HOSE - WATER $101.53 To Order
LR159430 HOSE - WATER $102.45 To Order
Photo Part No Description Price (each) Stock
LR140848 HOSE $112.19 To Order
Photo Part No Description Price (each) Stock
LR140849 BRACKET $32.00 To Order
Photo Part No Description Price (each) Stock
LR140867 HOSE - OIL COOLER $117.06 To Order
Photo Part No Description Price (each) Stock
LR140870 HOSE - WATER $128.52 To Order
Photo Part No Description Price (each) Stock
LR140911 HOSE - WATER $81.39 To Order
Photo Part No Description Price (each) Stock
LR140822 HOSE - RADIATOR $168.25 To Order
Photo Part No Description Price (each) Stock
LR140820 HOSE - RADIATOR $163.93 To Order
Photo Part No Description Price (each) Stock
LR140898 HOSE - RADIATOR VENTILATION $116.21 To Order
Photo Part No Description Price (each) Stock
LR140872 HOSE - HEATER WATER $56.69 To Order
View All

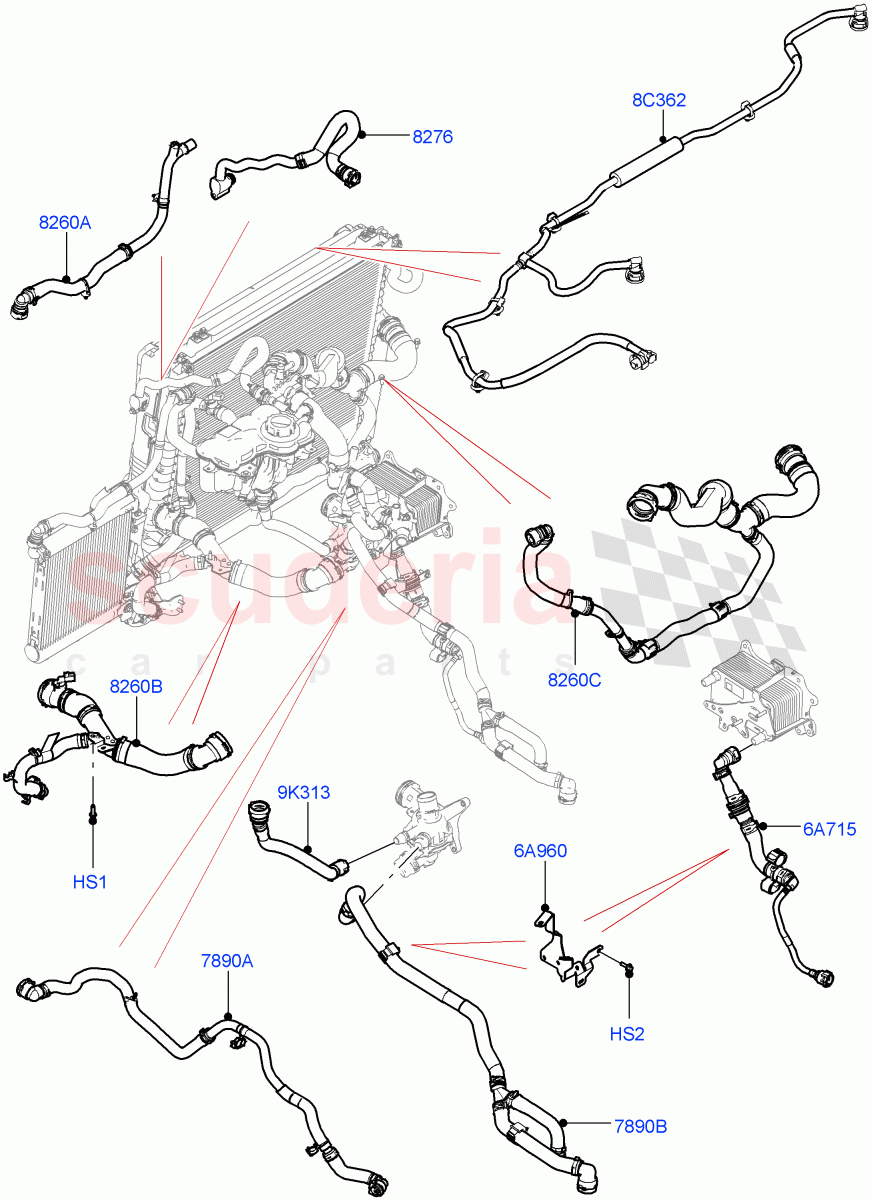

Cooling System Pipes And Hoses (3.0L AJ20D6 Diesel High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$3.31 1
HS2 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$0.97 1
6A715 LR140848
HOSE
Oil Cooler Inlet Pipe / From: MA000001 		$112.19 1
6A960 LR140849
BRACKET
Hose Support / From: MA000001 		$32.00 1
8C362 LR140898
HOSE - RADIATOR VENTILATION
To Expansion Tank / From: MA000001 		$116.21 1
9K313 LR140872
HOSE - HEATER WATER
Bottom, To Expansion Tank / From: MA000001 		$56.69 1
7890A LR140867
HOSE - OIL COOLER
Inlet / From: MA000001 		$117.06 1
7890B LR140870
HOSE - WATER
Outlet / From: MA000001 		$128.52 1
8260A LR140911
HOSE - WATER
Auxiliary Radiator / From: MA000001 		$81.39 1
8260B LR140822
HOSE - RADIATOR
Bottom / From: MA000001 		$168.25 1
8260C LR140820
HOSE - RADIATOR
Top / From: MA000001 		$163.93 1
8276 LR140894
HOSE - WATER
Water Charge Air Cooler / From: MA000001 / To: MA315923 		$101.53 1
8276 LR159430
HOSE - WATER
Water Charge Air Cooler / From: MA315924 		$102.45 1
