Name: Radiator/Coolant Overflow Container (Main Unit) (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)
Rating: 5.0 (1 reviews)

Radiator/Coolant Overflow Container (Main Unit) (3.0L AJ20D6 Diesel High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Radiator/Coolant Overflow Container (Main Unit) (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)

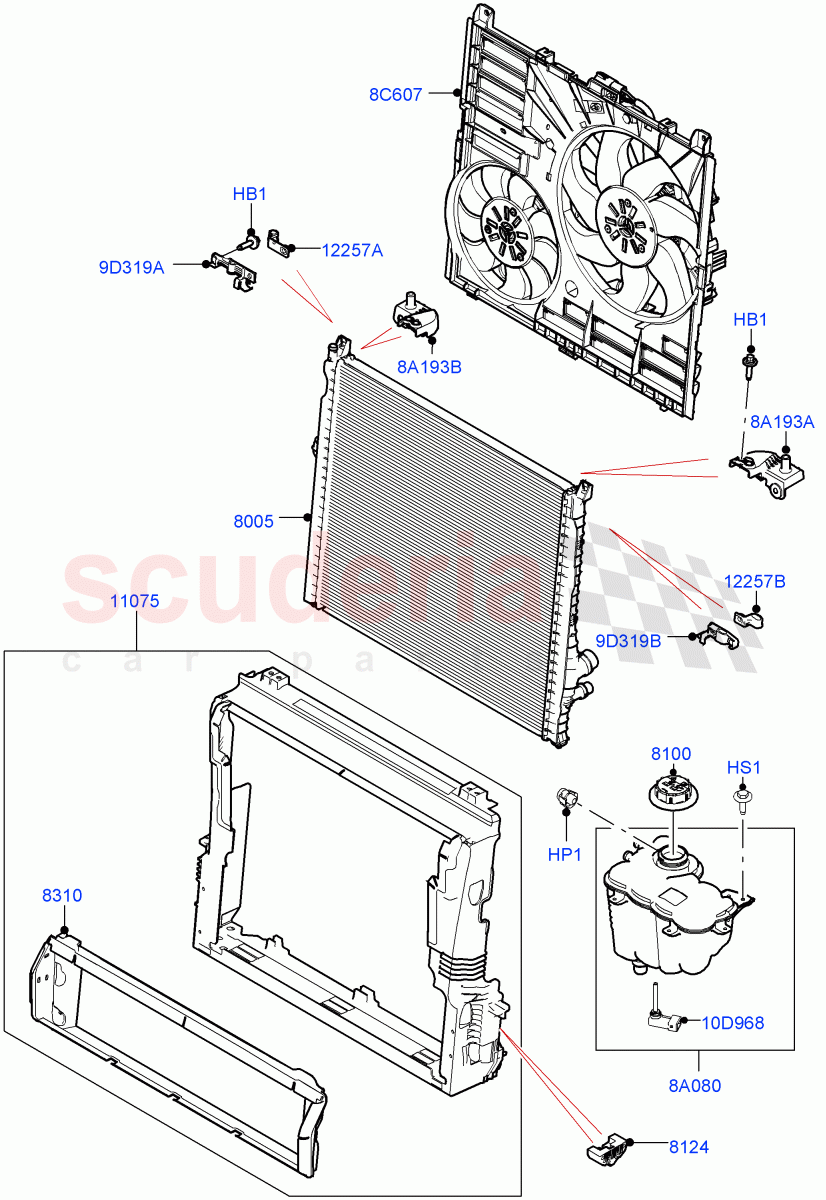

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR141748	BOLT	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	$4.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR141138	RADIATOR	$547.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176860	CAP - OVERFLOW CONTAINER	$16.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092467	INSULATOR - RADIATOR SUPPORT	$15.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144647	DEFLECTOR - AIR	$46.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141169	FRAME - RADIATOR SUPPORT	$151.29	To Order
	LR165167	FRAME - RADIATOR SUPPORT	$151.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128194	TANK - RADIATOR OVERFLOW	$129.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141171	MOTOR AND FAN - ENGINE COOLING	$967.38	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	$23.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR141179	BRACKET - CONDENSER SUPPORT	$22.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141181	BRACKET - CONDENSER SUPPORT	$22.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141177	BRACKET	$67.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141168	BRACKET - CONDENSER SUPPORT	$78.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141151	BRACKET	$62.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141152	BRACKET	$62.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR141748	BOLT	LR141748 BOLT M6 X 25MM / From: MA000001	$0.54	12
HP1	LR011038	PLUG - BLANKING IN STOCK	LR011038 PLUG - BLANKING Blanking / From: MA000001 IN STOCK	$4.92	1
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Expansion Tank, Hexagonal Head, M6 X 20MM / From: MA000001 IN STOCK	$0.92	1
8A080	LR128194	TANK - RADIATOR OVERFLOW	LR128194 TANK - RADIATOR OVERFLOW With Sensor / From: MA000001	$129.03	1
8A193A	LR141177	BRACKET	LR141177 BRACKET LH Upper / From: MA000001	$67.34	1
8A193B	LR141168	BRACKET - CONDENSER SUPPORT	LR141168 BRACKET - CONDENSER SUPPORT RH Upper / From: MA000001	$78.42	1
8C607	LR141171	MOTOR AND FAN - ENGINE COOLING	LR141171 MOTOR AND FAN - ENGINE COOLING From: MA000001	$967.38	1
9D319A	LR141151	BRACKET	LR141151 BRACKET RH, Water Charge Air Cooler / From: MA000001	$62.73	1
9D319B	LR141152	BRACKET	LR141152 BRACKET LH, Water Charge Air Cooler / From: MA000001	$62.73	1
10D968	PCJ500030	SENSOR - COOLANT LEVEL IN STOCK	PCJ500030 SENSOR - COOLANT LEVEL From: MA000001 IN STOCK	$23.95	1
8005	LR141138	RADIATOR	LR141138 RADIATOR From: MA000001	$547.77	1
8100	LR176860	CAP - OVERFLOW CONTAINER IN STOCK	LR176860 CAP - OVERFLOW CONTAINER From: MA000001 IN STOCK	$16.17	1
8124	LR092467	INSULATOR - RADIATOR SUPPORT	LR092467 INSULATOR - RADIATOR SUPPORT RH And LH / From: MA000001	$15.61	2
8310	LR144647	DEFLECTOR - AIR	LR144647 DEFLECTOR - AIR From: MA000001	$46.73	1
11075	LR141169	FRAME - RADIATOR SUPPORT	LR141169 FRAME - RADIATOR SUPPORT With Deflector / From: MA000001 / To: MA686552	$151.29	1
11075	LR165167	FRAME - RADIATOR SUPPORT	LR165167 FRAME - RADIATOR SUPPORT With Deflector / From: MA686553	$151.29	1
12257A	LR141179	BRACKET - CONDENSER SUPPORT	LR141179 BRACKET - CONDENSER SUPPORT RH, Condenser Support / From: MA000001	$22.70	1
12257B	LR141181	BRACKET - CONDENSER SUPPORT	LR141181 BRACKET - CONDENSER SUPPORT LH, Condenser Support / From: MA000001	$22.70	1
