Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Cooling System Pipes And Hoses (Intercooler) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR165691 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR125477 HOSE - WATER INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR125476 HOSE - WATER INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR125617 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR125618 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR125486 TUBE - BY-PASS Enquire To Order
Photo Part No Description Price (each) Stock
LR125490 TUBE - WATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR125491 TUBE - WATER OUTLET Enquire To Order
View All

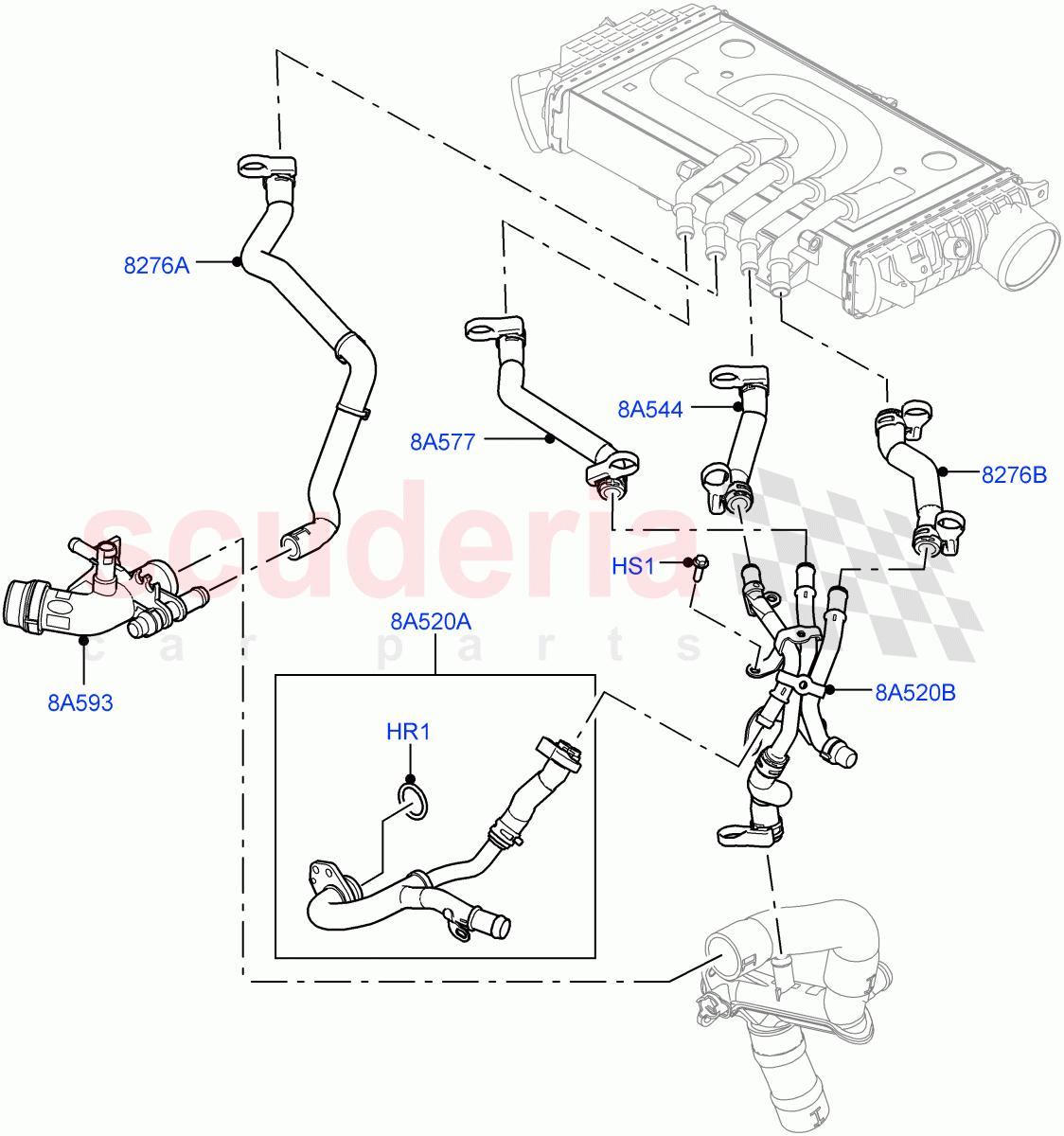

Cooling System Pipes And Hoses (Intercooler) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR165691
RING - SEALING 		- 1 Enquire
HS1 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: MA000001 		- 5 Enquire
8A520A LR125490
TUBE - WATER OUTLET
To Cylinder Head / From: MA000001 		- 1 Enquire
8A520B LR125491
TUBE - WATER OUTLET
From: MA000001 		- 1 Enquire
8A544 LR125617
HOSE - WATER
Inlet, Water Charge Air Cooler / From: MA000001 		- 1 Enquire
8A577 LR125618
HOSE - WATER
Outlet, Water Charge Air Cooler / From: MA000001 		- 1 Enquire
8A593 LR125486
TUBE - BY-PASS
From: MA000001 		- 1 Enquire
8276A LR125477
HOSE - WATER INLET
Intercooler Outlet / From: MA000001 		- 1 Enquire
8276B LR125476
HOSE - WATER INLET
Intercooler Inlet / From: MA000001 		- 1 Enquire
