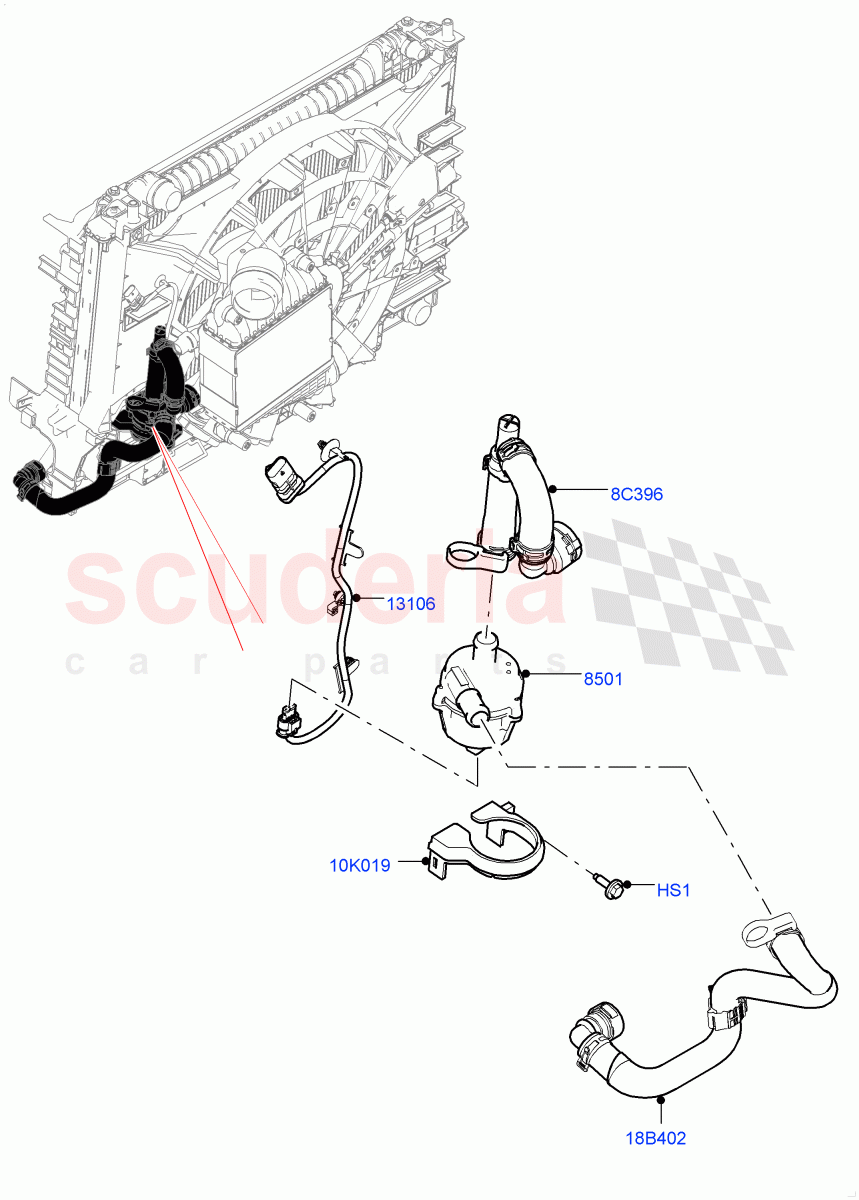

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095160	PUMP - WATER	$272.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091802	HOSE - INTERCOOLER	$23.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092140	BRACKET - PUMP SUPPORT	$13.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091793	HOSE - TURBOCHARGER TO INTERCOOLER	$66.99	To Order
	LR122811	HOSE - TURBOCHARGER TO INTERCOOLER	$65.66	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG501590	SCREW	RYG501590 SCREW Bracket, Hexagonal Head, M6 X 20MM	$0.96	1
8C396	LR091802	HOSE - INTERCOOLER	LR091802 HOSE - INTERCOOLER Outlet, Water Pump	$23.60	1
10K019	LR092140	BRACKET - PUMP SUPPORT	LR092140 BRACKET - PUMP SUPPORT	$13.05	1
18B402	LR091793	HOSE - TURBOCHARGER TO INTERCOOLER	LR091793 HOSE - TURBOCHARGER TO INTERCOOLER Inlet, Water Pump / To: KA200466	$66.99	1
18B402	LR122811	HOSE - TURBOCHARGER TO INTERCOOLER	LR122811 HOSE - TURBOCHARGER TO INTERCOOLER Inlet, Water Pump / From: KA200467	$65.66	1
8501	LR095160	PUMP - WATER	LR095160 PUMP - WATER Electric	$272.85	1
13106	LR093814	WIRING - WATER PUMP	LR093814 WIRING - WATER PUMP To: LA999999	$51.47	1
13106	LR144709	WIRING - WATER PUMP	LR144709 WIRING - WATER PUMP From: MA000001	$24.57	1
