Name: Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, With Extra Engine Cooling System, 2.0L I4 High DOHC AJ200 Petrol)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, With Extra Engine Cooling System, 2.0L I4 High DOHC AJ200 Petrol) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, With Extra Engine Cooling System,...

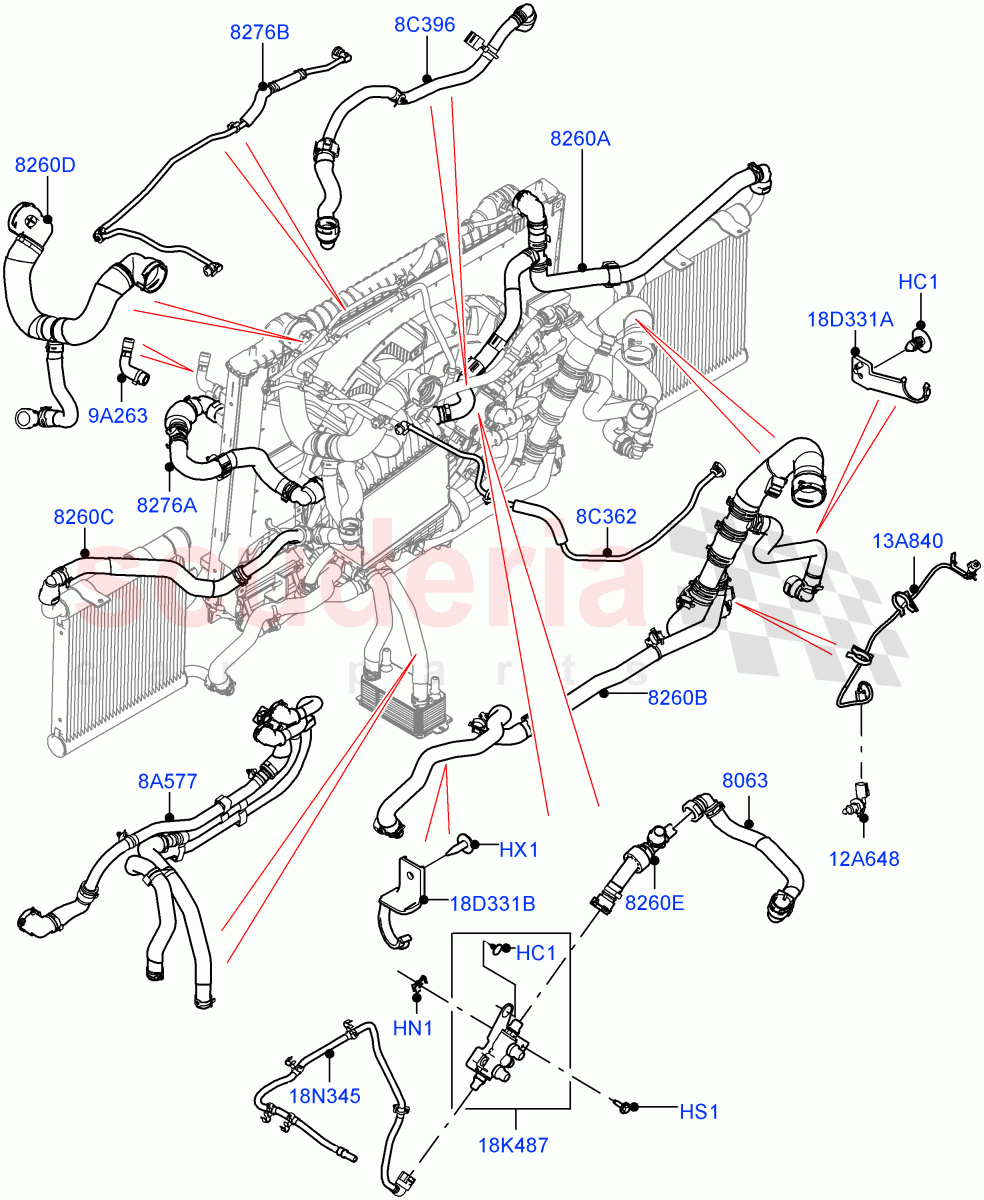

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR093724	HOSE - WATER	$50.38	To Order
	LR126186	HOSE - WATER	$49.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091857	HOSE - RADIATOR	$121.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091660	HOSE - RADIATOR	$169.62	To Order
	LR106273	HOSE - RADIATOR	$167.55	To Order
	LR125199	HOSE - RADIATOR	$164.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093989	HOSE - WATER	$62.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091643	HOSE - RADIATOR	$121.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091529	HOSE - COOLING SYSTEM	$51.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091817	HOSE - WATER	$112.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091647	HOSE - RADIATOR TO ENG. VENT ELBOW	$55.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093990	HOSE - WATER	$137.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091814	HOSE - WATER	$39.64	To Order
	LR175176	HOSE	$98.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093725	HOSE - WATER	$54.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091900	HOSE - RADIATOR VENTILATION	$58.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095331	WIRE - COOLANT TEMPERATURE SENSOR	$29.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116647	VALVE - COOLANT FLOW CONTROL	$129.79	To Order
	LR116647	VALVE - COOLANT FLOW CONTROL	$129.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093723	HOSE - HEATER WATER	$51.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112656	BRACKET - COOLING HOSE	$20.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141291	BRACKET	$4.13	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	BTR2985	CLIP IN STOCK	BTR2985 CLIP 6.5 x 6, Push Pin IN STOCK	$1.11	1
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	$1.19	1
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM	$0.96	1
HX1	RYQ500070	PIN - RETAINING IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM, Bracket, Push Pin IN STOCK	$1.45	1
8A577	LR093990	HOSE - WATER IN STOCK	LR093990 HOSE - WATER IN STOCK	$137.16	1
8C362	LR091814	HOSE - WATER	LR091814 HOSE - WATER With Ptc Heater	$39.64	1
8C362	LR175176	HOSE	LR175176 HOSE Fuel Heater W/Pk Heat With Remote	$98.37	1
8C396	LR093725	HOSE - WATER	LR093725 HOSE - WATER	$54.38	1
9A263	LR091900	HOSE - RADIATOR VENTILATION	LR091900 HOSE - RADIATOR VENTILATION With Bleed Hose	$58.43	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	1
13A840	LR095331	WIRE - COOLANT TEMPERATURE SENSOR	LR095331 WIRE - COOLANT TEMPERATURE SENSOR	$29.92	1
18D331A	LR112656	BRACKET - COOLING HOSE	LR112656 BRACKET - COOLING HOSE	$20.34	1
18D331B	LR141291	BRACKET	LR141291 BRACKET	$4.13	1
18K487	LR116647	VALVE - COOLANT FLOW CONTROL	LR116647 VALVE - COOLANT FLOW CONTROL To: JA999999	$129.79	1
18K487	LR116647	VALVE - COOLANT FLOW CONTROL	LR116647 VALVE - COOLANT FLOW CONTROL From: KA000001	$129.79	1
18N345	LR093723	HOSE - HEATER WATER	LR093723 HOSE - HEATER WATER	$51.04	1
8063	LR093724	HOSE - WATER	LR093724 HOSE - WATER To: KA999999	$50.38	1
8063	LR126186	HOSE - WATER	LR126186 HOSE - WATER From: LA000001	$49.54	1
8260A	LR091857	HOSE - RADIATOR	LR091857 HOSE - RADIATOR Primary	$121.22	1
8260B	LR091660	HOSE - RADIATOR	LR091660 HOSE - RADIATOR To: JA720644	$169.62	1
8260B	LR106273	HOSE - RADIATOR	LR106273 HOSE - RADIATOR From: JA720645 / To: LA238773	$167.55	1
8260B	LR125199	HOSE - RADIATOR	LR125199 HOSE - RADIATOR From: LA238774	$164.28	1
8260C	LR093989	HOSE - WATER	LR093989 HOSE - WATER LH, Auxiliary, Feed, Radiator	$62.35	1
8260D	LR091643	HOSE - RADIATOR	LR091643 HOSE - RADIATOR Radiator, Top	$121.25	1
8260E	LR091529	HOSE - COOLING SYSTEM	LR091529 HOSE - COOLING SYSTEM	$51.70	1
8276A	LR091817	HOSE - WATER	LR091817 HOSE - WATER Intercooler Outlet	$112.02	1
8276B	LR091647	HOSE - RADIATOR TO ENG. VENT ELBOW	LR091647 HOSE - RADIATOR TO ENG. VENT ELBOW Expansion Tank	$55.39	1
