Cooling System Pipes And Hoses (2.0L I4 High DOHC AJ200 Petrol, With Standard Engine Cooling System, 2.0L I4 Mid DOHC AJ200 Petrol) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L I4 High DOHC AJ200 Petrol, With Standard Engine Cooling...

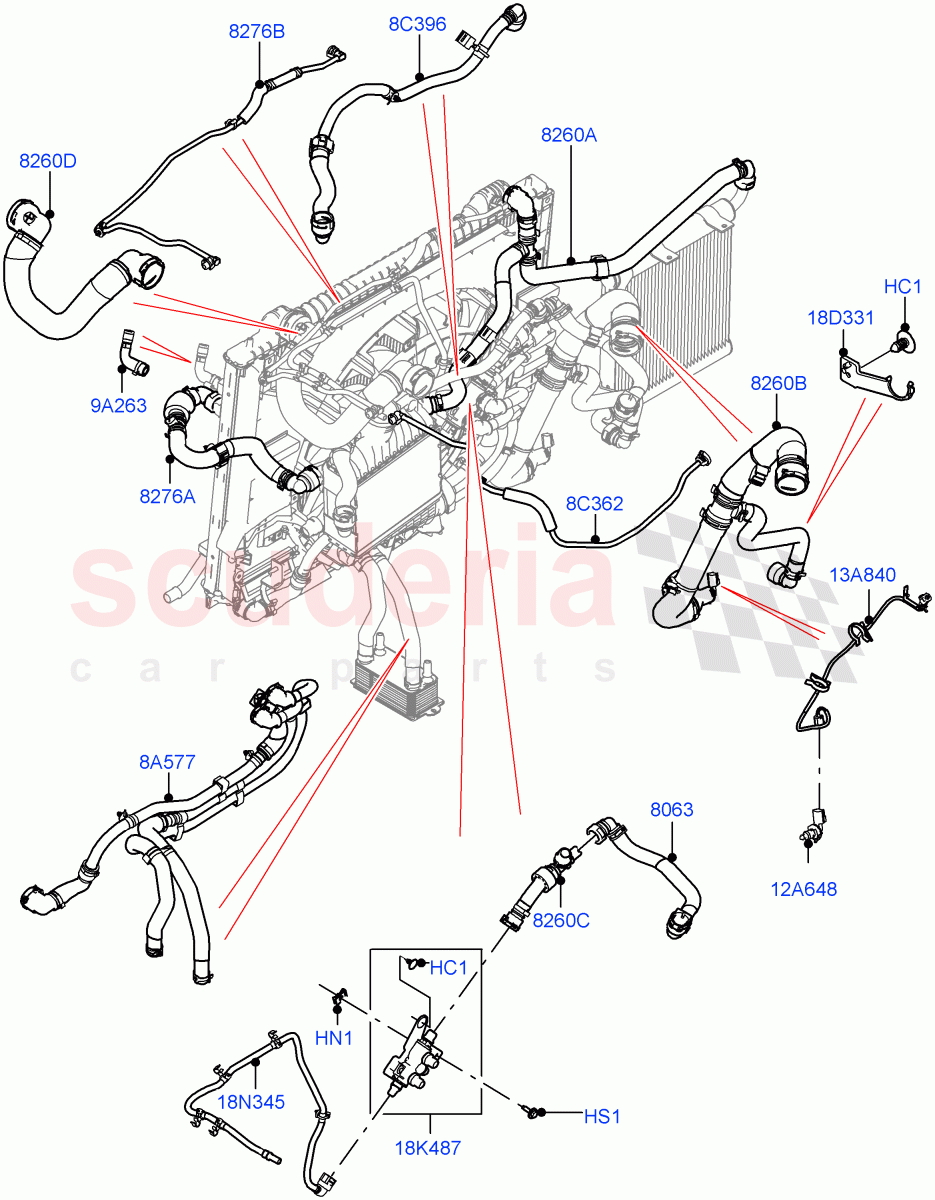

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093724	HOSE - WATER	Enquire	To Order
	LR126186	HOSE - WATER	Enquire	To Order
	LR140816	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091857	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091659	HOSE - RADIATOR	Enquire	To Order
	LR106272	HOSE - RADIATOR	Enquire	To Order
	LR140837	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091529	HOSE - COOLING SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091640	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091817	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091647	HOSE - RADIATOR TO ENG. VENT ELBOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093990	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091814	HOSE - WATER	Enquire	To Order
	LR175176	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093725	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091900	HOSE - RADIATOR VENTILATION	Enquire	To Order
	LR140973	HOSE - RADIATOR VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095331	WIRE - COOLANT TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112656	BRACKET - COOLING HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093685	VALVE - COOLANT FLOW CONTROL	Enquire	To Order
	LR116647	VALVE - COOLANT FLOW CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093723	HOSE - HEATER WATER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	BTR2985	CLIP	BTR2985 CLIP 6.5 x 6, Push Pin	-	1	Enquire
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	-	1	Enquire
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM	-	1	Enquire
8A577	LR093990	HOSE - WATER	LR093990 HOSE - WATER	-	1	Enquire
8C362	LR091814	HOSE - WATER	LR091814 HOSE - WATER With Ptc Heater	-	1	Enquire
8C362	LR175176	HOSE	LR175176 HOSE Fuel Heater W/Pk Heat With Remote	-	1	Enquire
8C396	LR093725	HOSE - WATER	LR093725 HOSE - WATER	-	1	Enquire
9A263	LR091900	HOSE - RADIATOR VENTILATION	LR091900 HOSE - RADIATOR VENTILATION With Bleed Hose / To: LA999999	-	1	Enquire
9A263	LR140973	HOSE - RADIATOR VENTILATION	LR140973 HOSE - RADIATOR VENTILATION With Bleed Hose / From: MA000001	-	1	Enquire
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE	-	1	Enquire
13A840	LR095331	WIRE - COOLANT TEMPERATURE SENSOR	LR095331 WIRE - COOLANT TEMPERATURE SENSOR	-	1	Enquire
18D331	LR112656	BRACKET - COOLING HOSE	LR112656 BRACKET - COOLING HOSE	-	1	Enquire
18K487	LR093685	VALVE - COOLANT FLOW CONTROL	LR093685 VALVE - COOLANT FLOW CONTROL To: JA999999	-	1	Enquire
18K487	LR116647	VALVE - COOLANT FLOW CONTROL	LR116647 VALVE - COOLANT FLOW CONTROL From: KA000001	-	1	Enquire
18N345	LR093723	HOSE - HEATER WATER	LR093723 HOSE - HEATER WATER	-	1	Enquire
8063	LR093724	HOSE - WATER	LR093724 HOSE - WATER To: KA999999	-	1	Enquire
8063	LR126186	HOSE - WATER	LR126186 HOSE - WATER From: LA000001 / To: LA999999	-	1	Enquire
8063	LR140816	HOSE - WATER	LR140816 HOSE - WATER From: MA000001	-	1	Enquire
8260A	LR091857	HOSE - RADIATOR	LR091857 HOSE - RADIATOR Primary	-	1	Enquire
8260B	LR091659	HOSE - RADIATOR	LR091659 HOSE - RADIATOR To: JA711123	-	1	Enquire
8260B	LR106272	HOSE - RADIATOR	LR106272 HOSE - RADIATOR From: JA711124 / To: LA999999	-	1	Enquire
8260B	LR140837	HOSE - RADIATOR	LR140837 HOSE - RADIATOR Bottom / From: MA000001	-	1	Enquire
8260C	LR091529	HOSE - COOLING SYSTEM	LR091529 HOSE - COOLING SYSTEM	-	1	Enquire
8260D	LR091640	HOSE - RADIATOR	LR091640 HOSE - RADIATOR Radiator, Upper	-	1	Enquire
8276A	LR091817	HOSE - WATER	LR091817 HOSE - WATER Intercooler Outlet	-	1	Enquire
8276B	LR091647	HOSE - RADIATOR TO ENG. VENT ELBOW	LR091647 HOSE - RADIATOR TO ENG. VENT ELBOW Expansion Tank	-	1	Enquire
